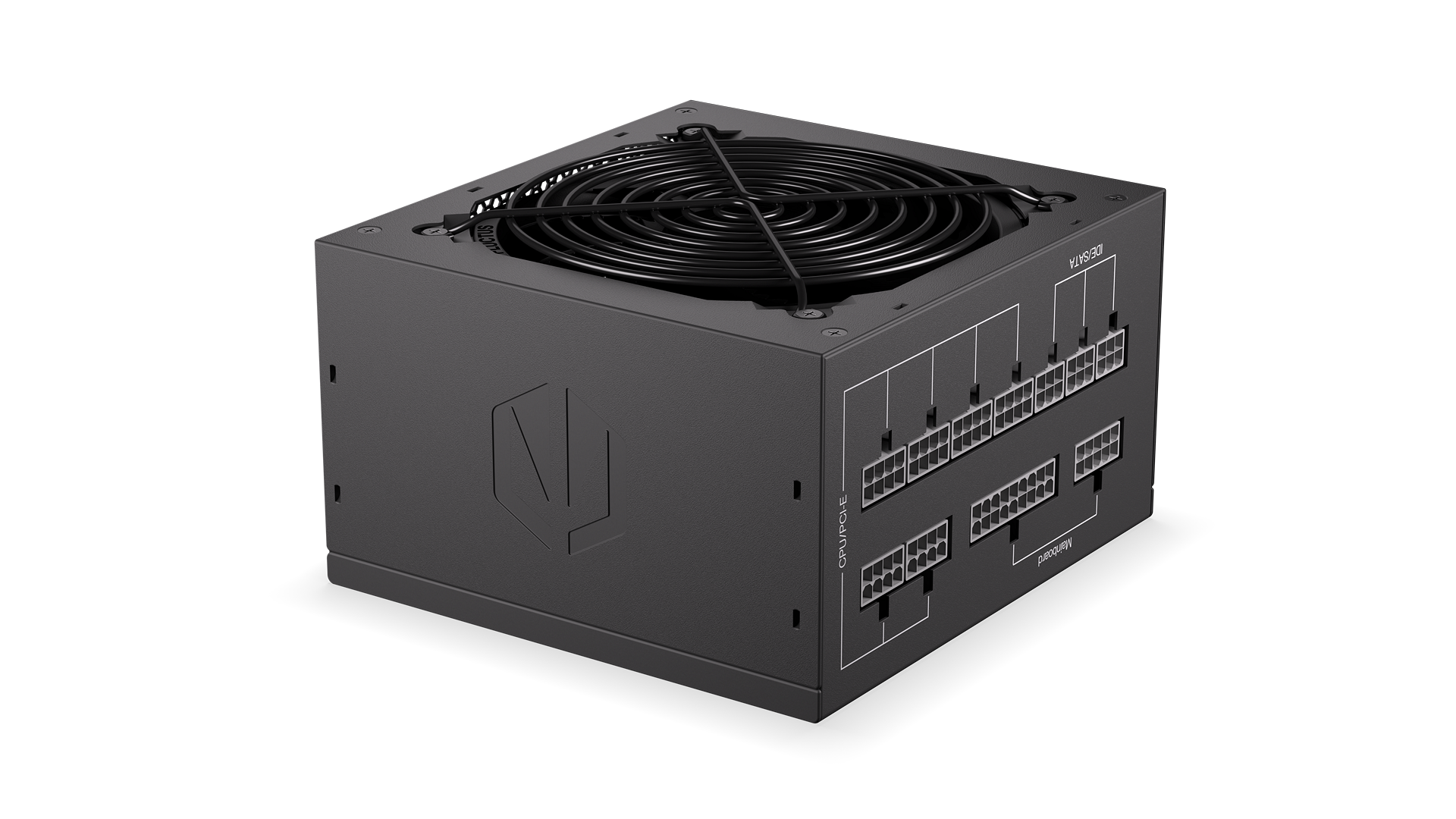

ENDORFY Supremo FM5 Gold 850 W EY7A009 Gallery 01 PSU Left Front Side
ENDORFY Supremo FM5 Gold 850 W EY7A009 Gallery 01 PSU Left Front Side
ENDORFY Supremo FM5 Gold 850 W EY7A009 Gallery 01 PSU Left Front Side

Supremo FM5 Gold 850 W Power Supply

599,00 zł
599,00 zł
Lowest price in the last 30 days: 599,00 zł

The Supremo FM5 Gold 850 W is an efficient power supply that will easily shoulder the demanding requirements of your PC components. Prepare for top-tier support — without unexpected resets. It's a DC-DC topology power supply. Experts know that this powerful little unit guarantees precise voltage regulation, stable operation and a full continuous 850 W of power.

View full technical specification
Certificates
80 PLUS® Gold 80 PLUS® Gold
Power
Out Of Stock
Fast Delivery
Risk-free returns within 14 days
Buy now, pay later
Data security

You can find the warranty terms HERE.

Cooling Sp. z o.o.
Sokołowska 24
05-806 Sokołów
Poland

SKU: EY7A009

EAN: 5903018666181

ENDORFY Supremo FM5 Gold 850 W EY7A009 Gallery 01 PSU Left Front Side

Discover the capabilities of the Supremo FM5 Gold 850 W

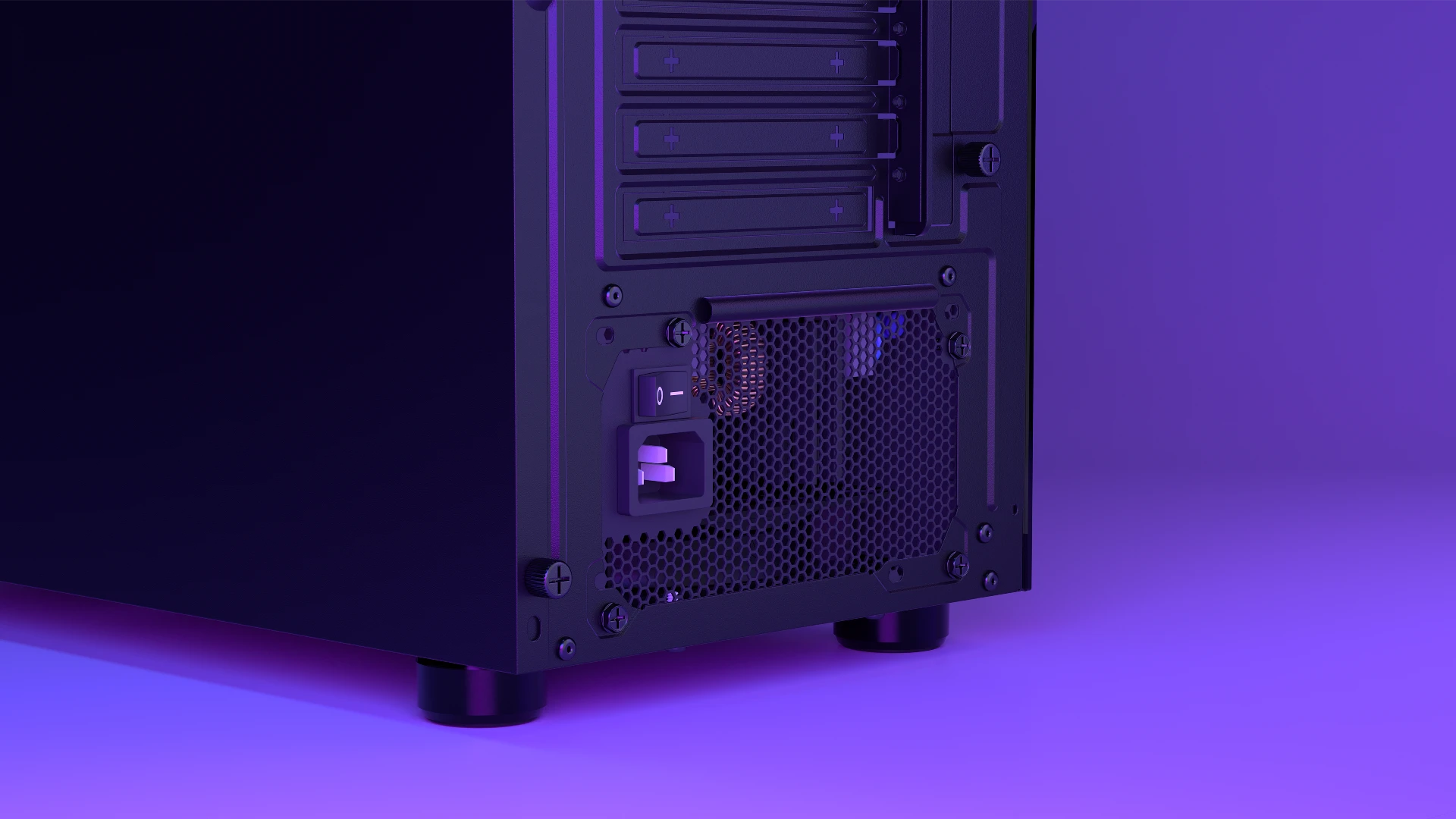

ENDORFY Supremo FM5 Gold 850 W EY7A009 features 01 PSU Installed PC Case Back View

DC-DC topology

The Supremo FM5 Gold 850 W power supply is gear you can work and play with without worrying about seeing a blue screen. We designed it to provide your components with stable voltage on each rail separately.
Put simply – the computer runs reliably even when packed with high-end hardware configurations.
This is thanks to DC-DC conversion, which guarantees precise voltage regulation, stable operation and a continuous total power of 850 W. You also get a full set of protections guarding, among others, against short circuits and overloads. Thanks to them, in the event of a failure or a power surge from the electrical installation, the power supply will simply shut down.

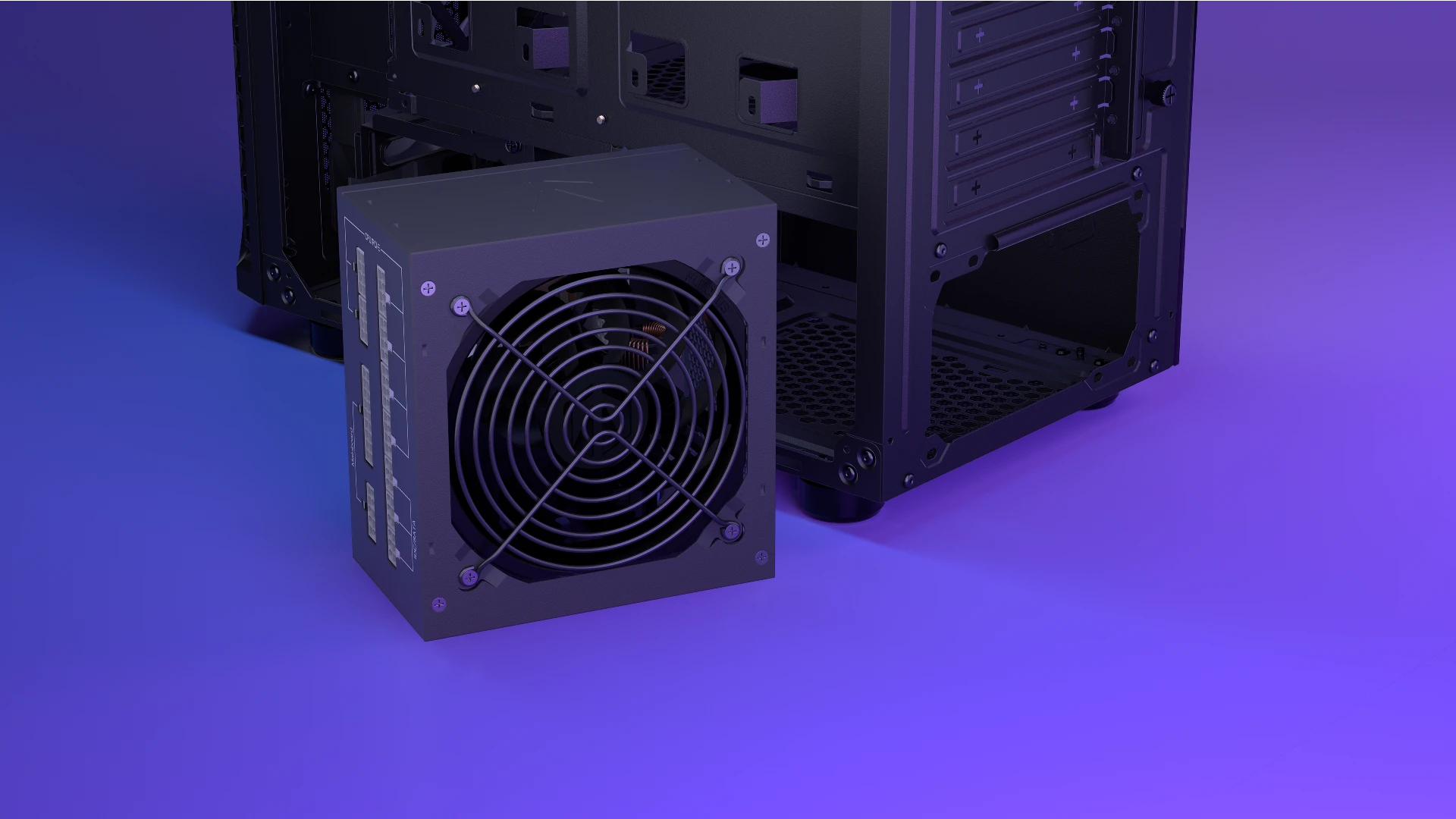

ENDORFY Supremo FM5 Gold 850 W EY7A009 features 02 PSU Overview Top Side

Silent operation

If we were to briefly summarize the Supremo FM5 Gold 850 W, we'd say it's one of the quietest power supplies in its class. After a few hours running at full load you can head out with your crew for an all-night raid, and your computer will still be virtually silent.
That's thanks to our pride — the quiet Fluctus fan, developed in collaboration with Synergy Cooling. It's small but cools like top-tier air conditioning. Thanks to it, the Supremo maintains low temperatures even during the most demanding tasks, and you can work and play without monotonous background noise.

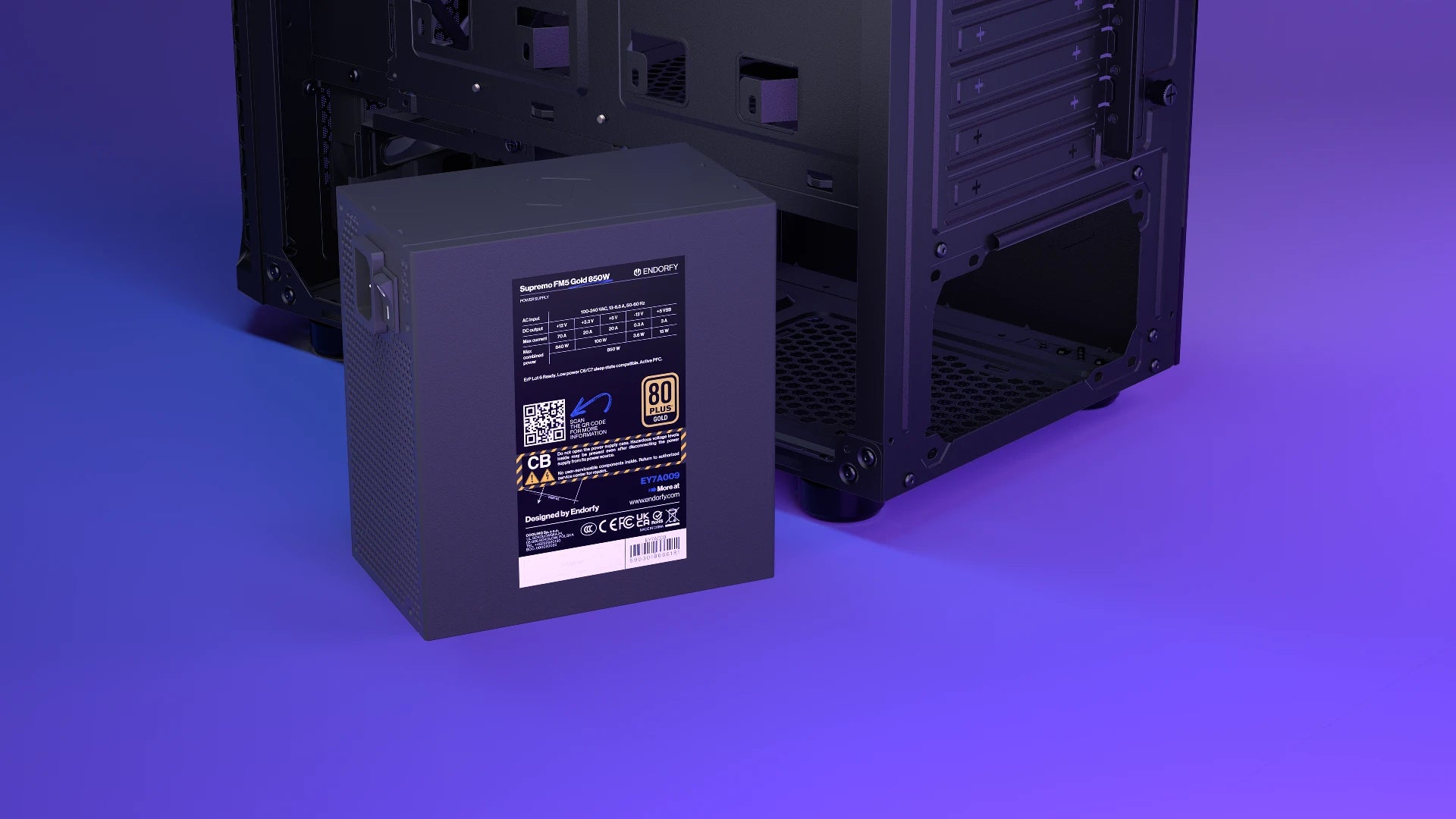

ENDORFY Supremo FM5 Gold 850 W EY7A009 features 03 PSU Installed PC Case Back View

Japanese support capacitors

The Supremo FM5 Gold 850 W is a power supply that can easily handle the most hardcore temperatures. Where water starts to boil, it won't overheat from the effort — it's rated to operate even at 105° Celsius.
This is thanks to Japanese electrolytic and aluminum-polymer (solid state) capacitors. They're small but pack true samurai power — we're even considering fitting tiny katanas in the next version.

Mężczyzna montujący komputer przy użyciu śrubokręta

7-year warranty

Together with the Supremo FM5 Gold 850 W, we give you a long 7-year warranty. You probably won't need to use it anyway — but it's good to have the option.

See the dimensions of the Supremo FM5 Gold 850 W

Technical specification Supremo FM5 Gold 850 W Power Supply

Technical specifications

Dimensions [mm] 87×140×150
Efficiency 80 PLUS® Gold
Warranty months 84

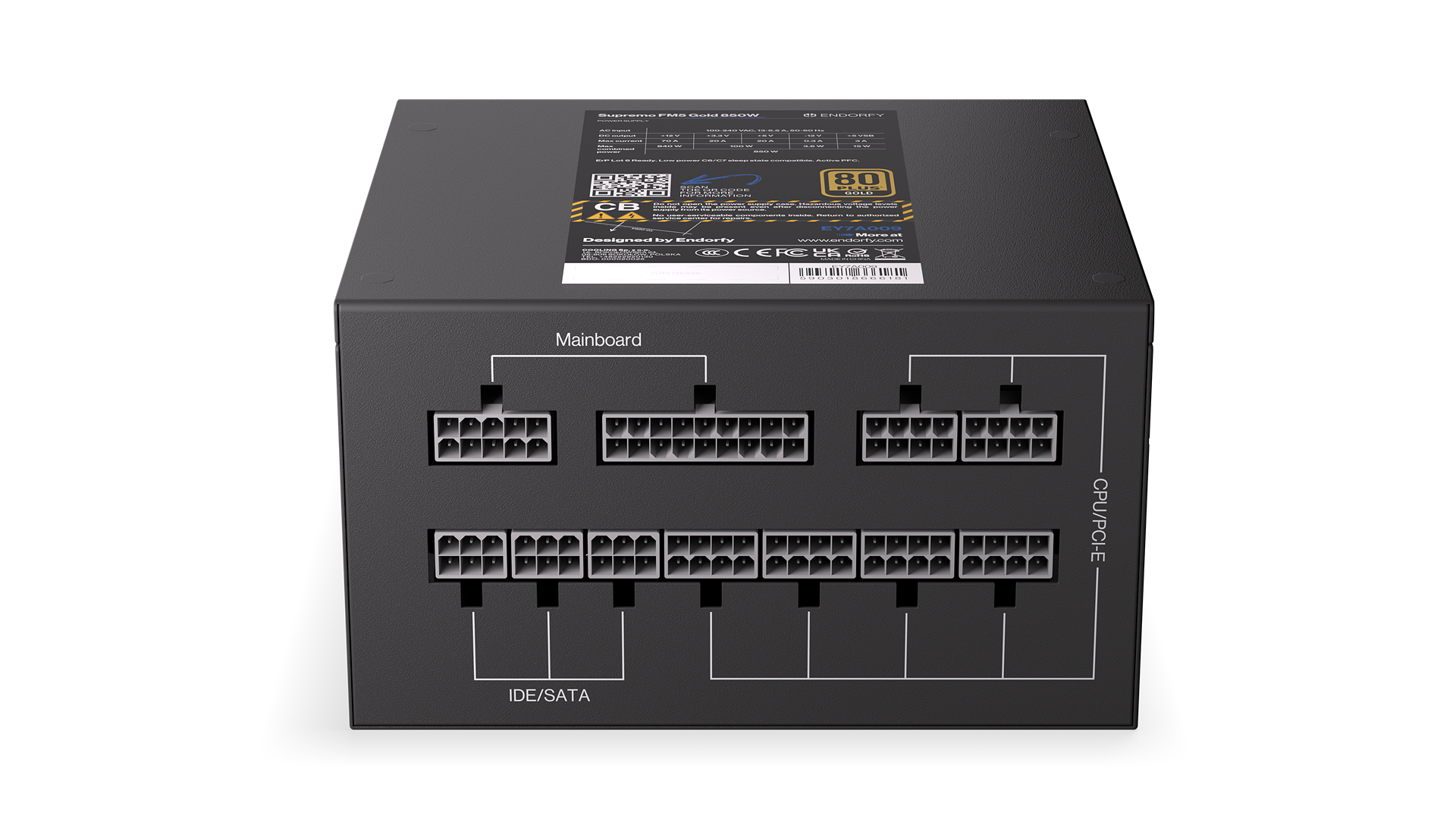

Number of connectors and cable lengths • 2× EPS 12V 8-PIN (4+4), 705 mm • 1× ATX 24-PIN, 600 mm • 4× PCI-E 8-PIN (6+2), 560 mm • 8× SATA, 560 – 880 mm • 1× MOLEX, 880 mm
Continuous power [W] 850
MTBF [h] 100000
Input voltage [V] 115/230
Product type ATX computer power supply
Cable type modular
Fan 120mm Fluctus

Current rating [A]

+12 V 70
+3.3 V 20
+5 V 20
-12 V 0.3
+5 VSB 3

Bearing

FDB yes

Protections

OVP yes
UVP yes
OCP yes
SCP yes
OPP yes
SIP yes
OTP yes

Package contents

Supremo FM5 Gold 850 W Power Supply 1
Modular cabling 1
Power cable 1
Mounting kit 1
User manual 1

Downloads

EY7A009_Supremo-FM5-Gold-850W-EN.d20260212-u090304.zip

Instructions

Supremo FM5 Gold 850 W (EY7A009)
