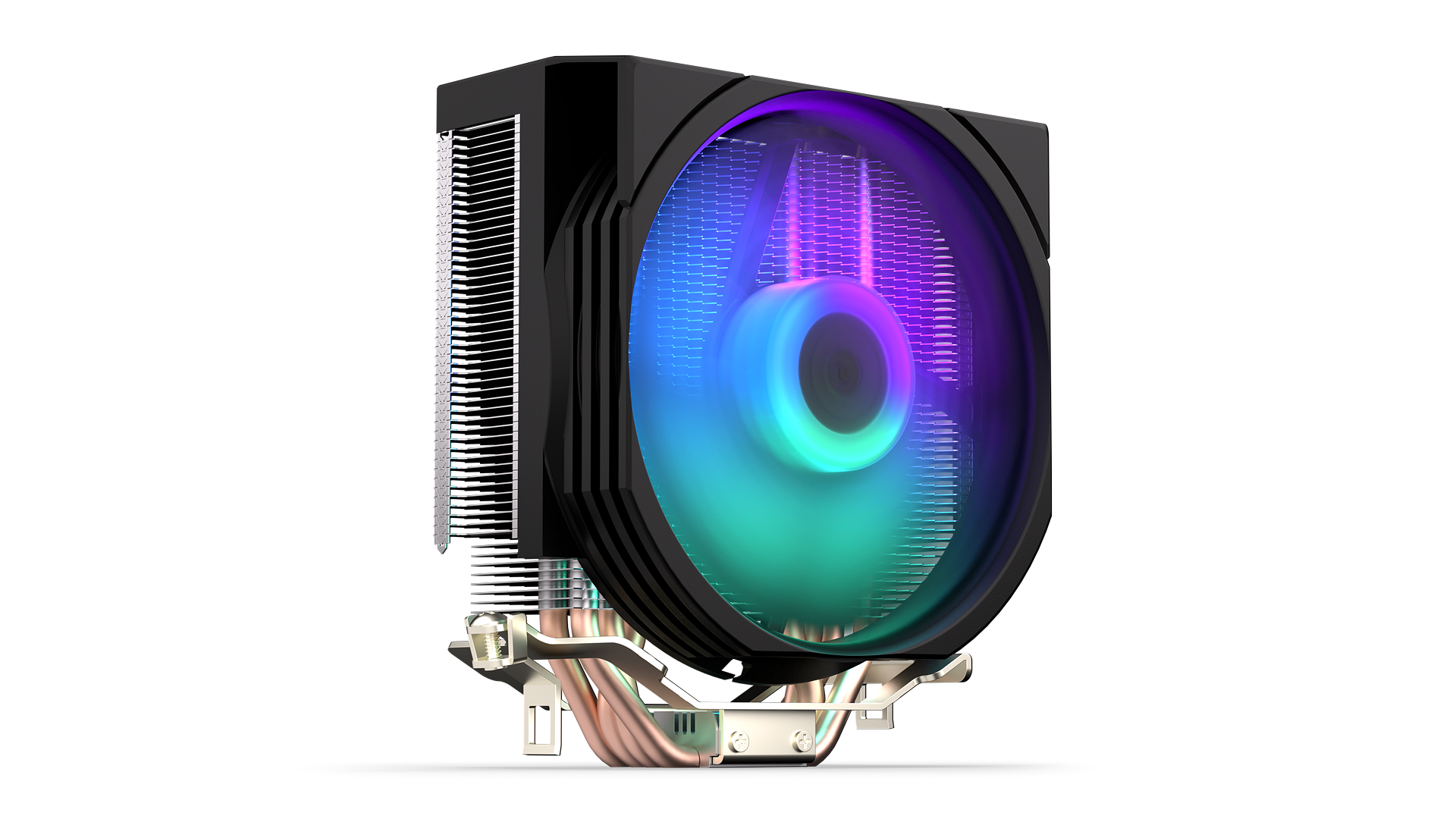

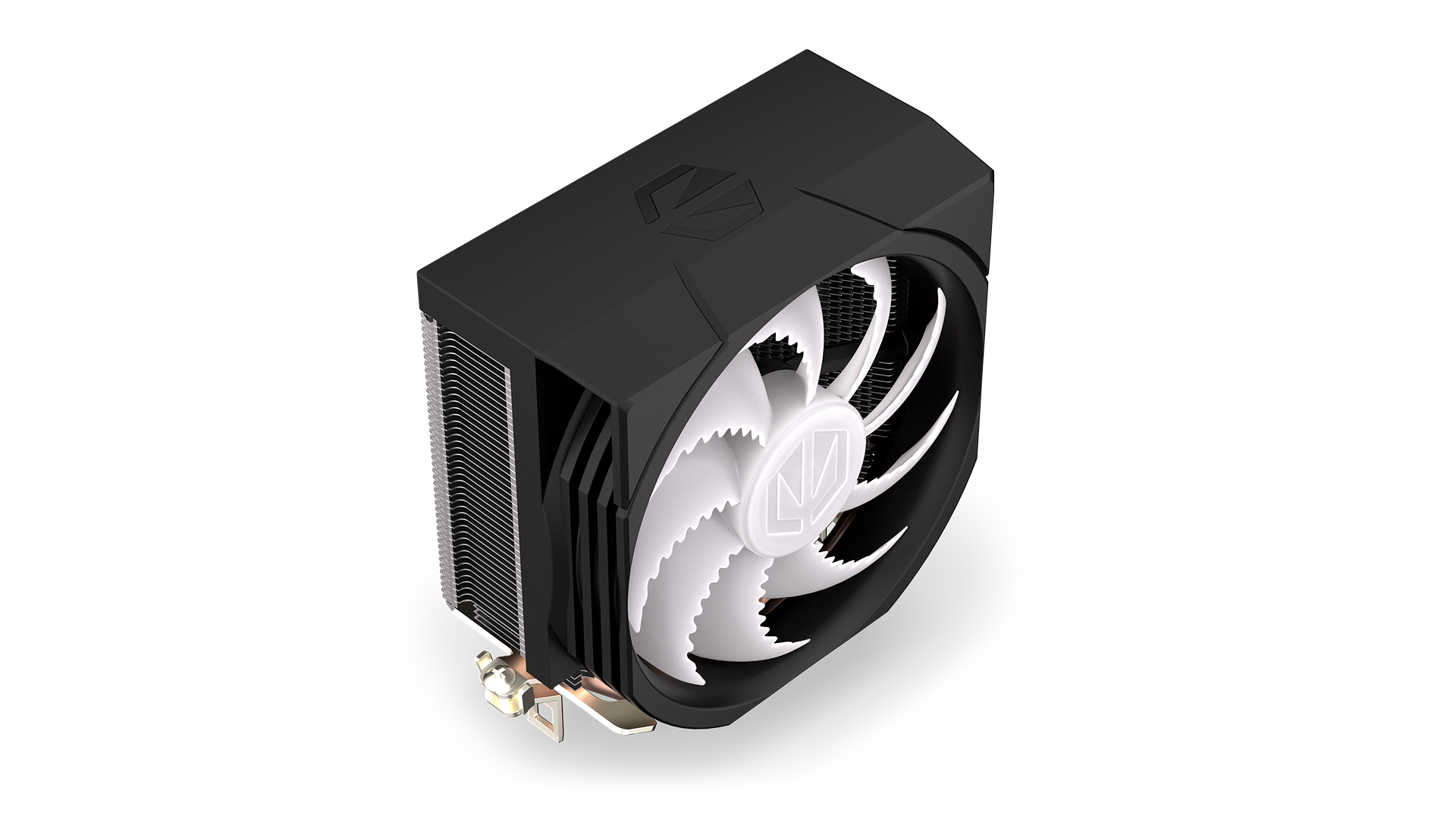

ENDORFY Spartan 5 MAX ARGB EY3A004 Air Cooling Right Side Angle View Fan ON
ENDORFY Spartan 5 MAX ARGB EY3A004 Air Cooling Right Side Angle View Fan ON
ENDORFY Spartan 5 MAX ARGB EY3A004 Air Cooling Right Side Angle View Fan ON

Spartan 5 MAX ARGB Fan

105,00 zł
105,00 zł
Lowest price in the last 30 days: 105,00 zł

Spartan 5 MAX ARGB is a compact air-cooling solution 146 mm tall with a pre-installed Fluctus 120 PWM ARGB fan. The densely finned heatsink with four heat pipes that make direct contact with the CPU surface provides effective heat dissipation even under demanding workloads.

View full technical specification
ARGB lighting
In Stock
Fast Delivery
Risk-free returns within 14 days
Buy now, pay later
Data security

You can find the warranty terms HERE.

Cooling Sp. z o.o.
Sokołowska 24
05-806 Sokołów
Poland

SKU: EY3A004

EAN: 5903018665818

ENDORFY Spartan 5 MAX ARGB EY3A004 Air Cooling Right Side Angle View Fan ON

Key features of the Spartan 5 MAX ARGB cooler

Radiator ENDORFY Spartan 5 MAX ARGB pracujący w obudowie PC – widok z boku
Radiator ENDORFY Spartan 5 MAX ARGB – widok z boku
Radiator ENDORFY Spartan 5 MAX ARGB w uruchomionym podświetleniem ARGB – widok z boku
Radiator ENDORFY Spartan 5 MAX ARGB zamontowany w obudowie PC – widok z boku

Quiet operation with the Fluctus 120 PWM ARGB fan

A preinstalled fan with specially profiled blades provides effective airflow while operating very quietly.

Compact form factor and high performance

Height 146 mm and a radiator with 4 heat pipes in direct contact with the CPU for effective cooling in small cases.

ARGB lighting

Fluctus 120 PWM ARGB fan with customizable lighting effects – controllable via the motherboard or the included controller.

Quick installation and wide compatibility

The unit is easy to install without tools and is compatible with popular AMD and Intel CPU sockets.

Discover the capabilities of the Spartan 5 MAX ARGB

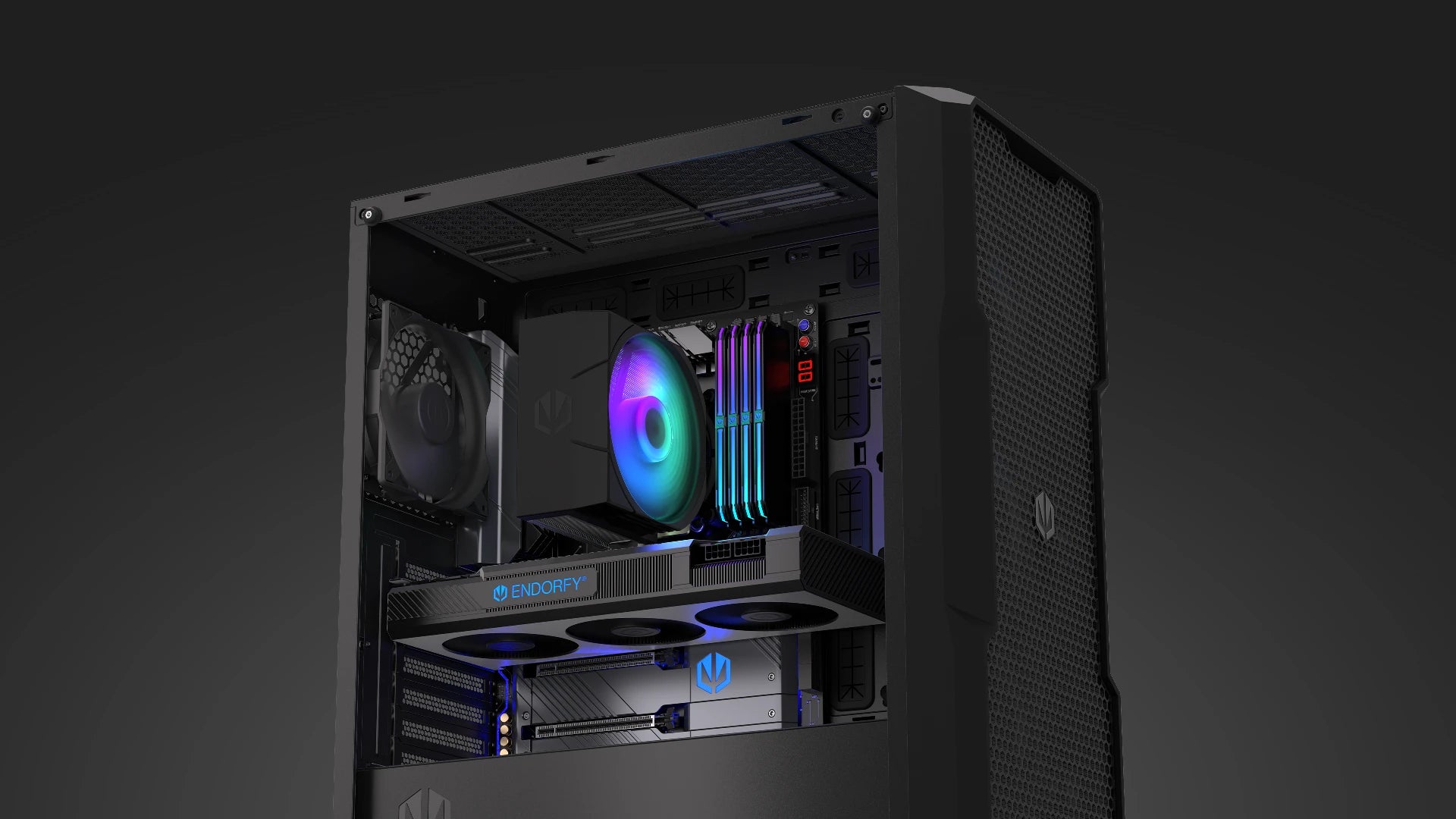

Radiator ENDORFY Spartan 5 MAX ARGB pracujący w obudowie PC – widok z boku

Quiet Fluctus 120 PWM ARGB fan

Airflow through the radiator is provided by the preinstalled Fluctus 120 PWM ARGB fan. Its blades are shaped to sweep as closely as possible over the radiator's densely packed fins. Fluctus is not only quiet; its development made use of psychoacoustic principles – the specially optimized wavy blade edge makes the noise produced during operation more pleasant to the ear. Thanks to this, the ENDORFY Spartan 5 MAX ARGB maintains a high level of acoustic performance even during long, demanding tasks.

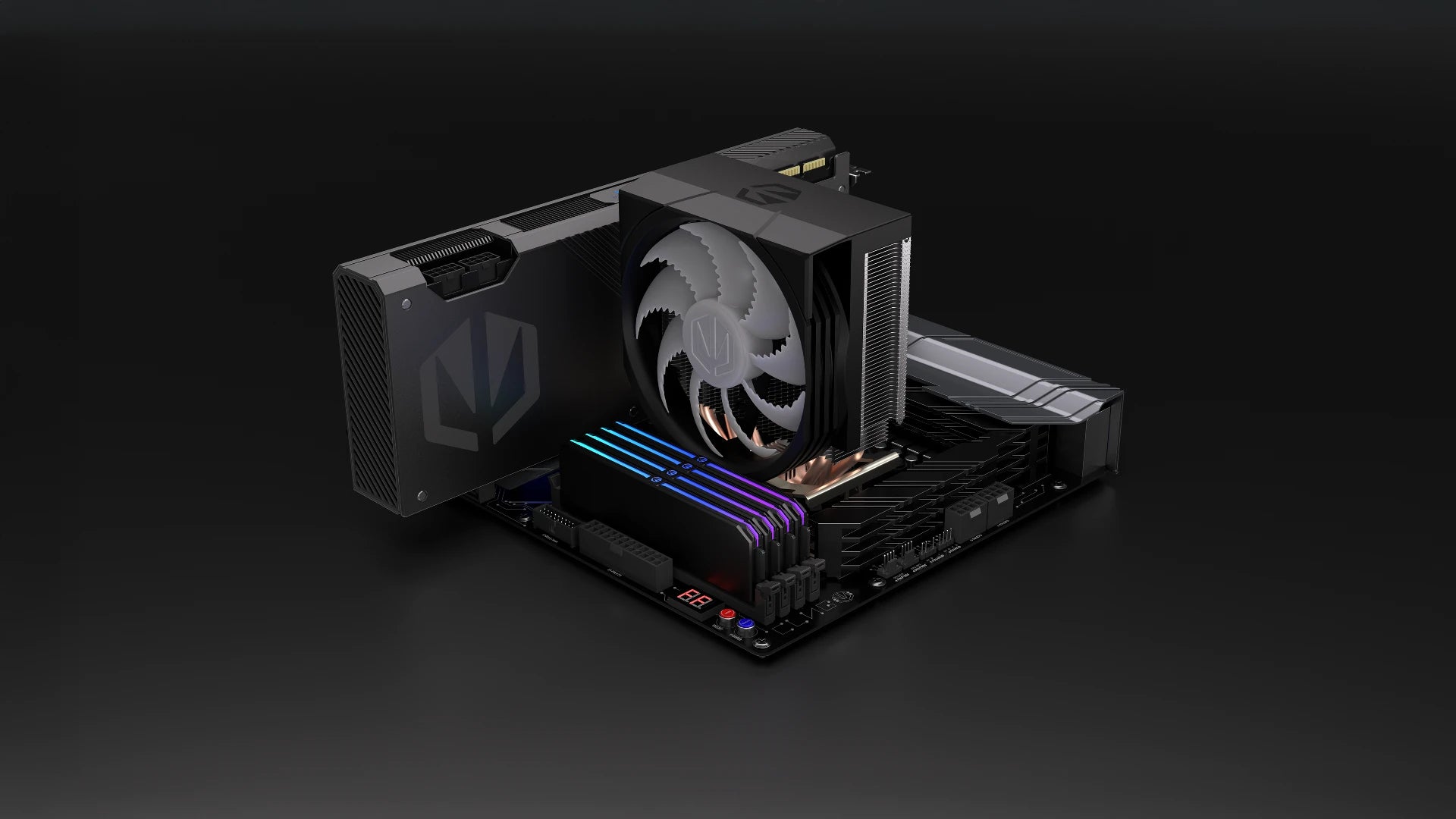

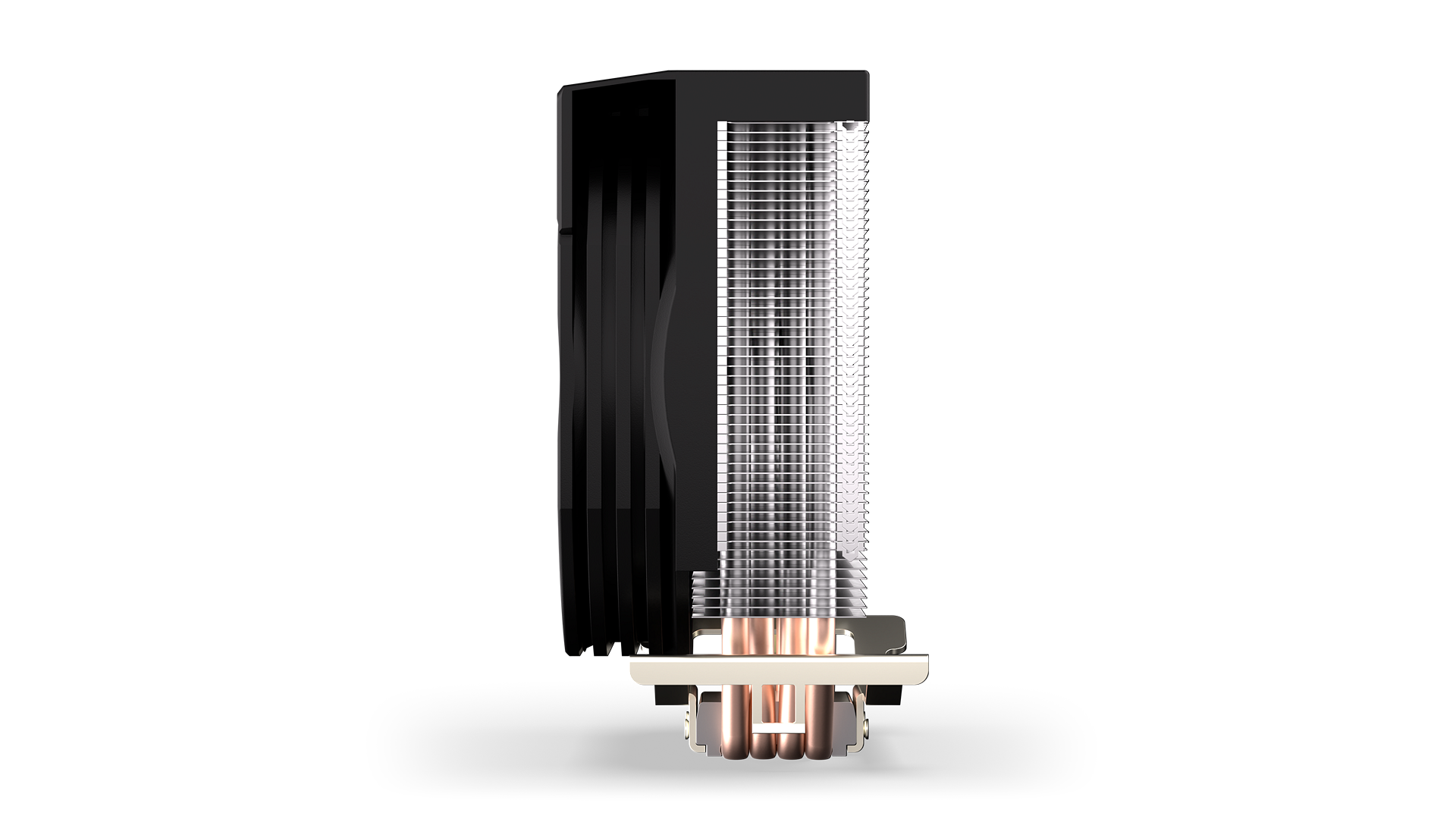

Radiator ENDORFY Spartan 5 MAX ARGB – widok z boku

Compact form factor and high performance

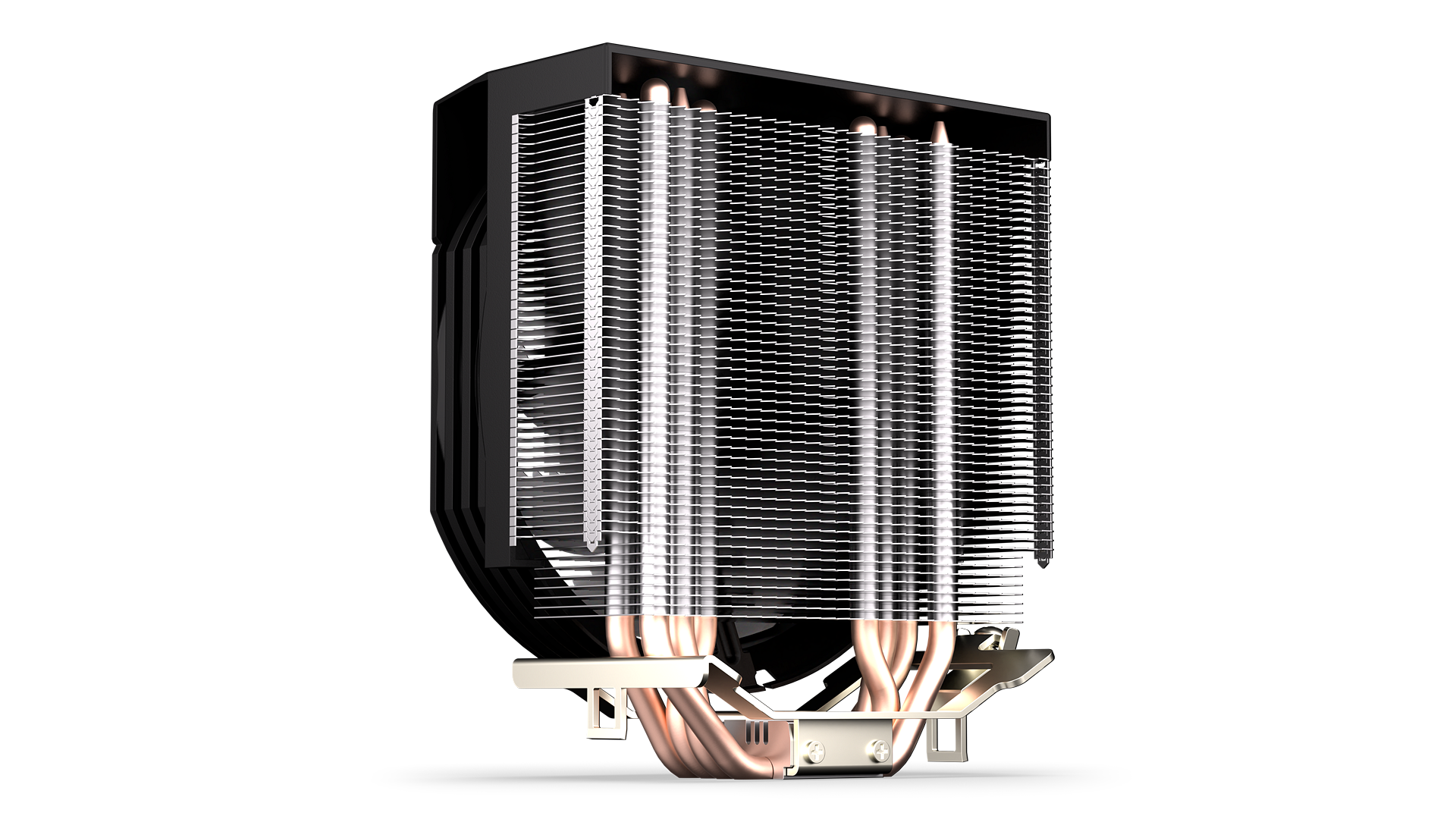

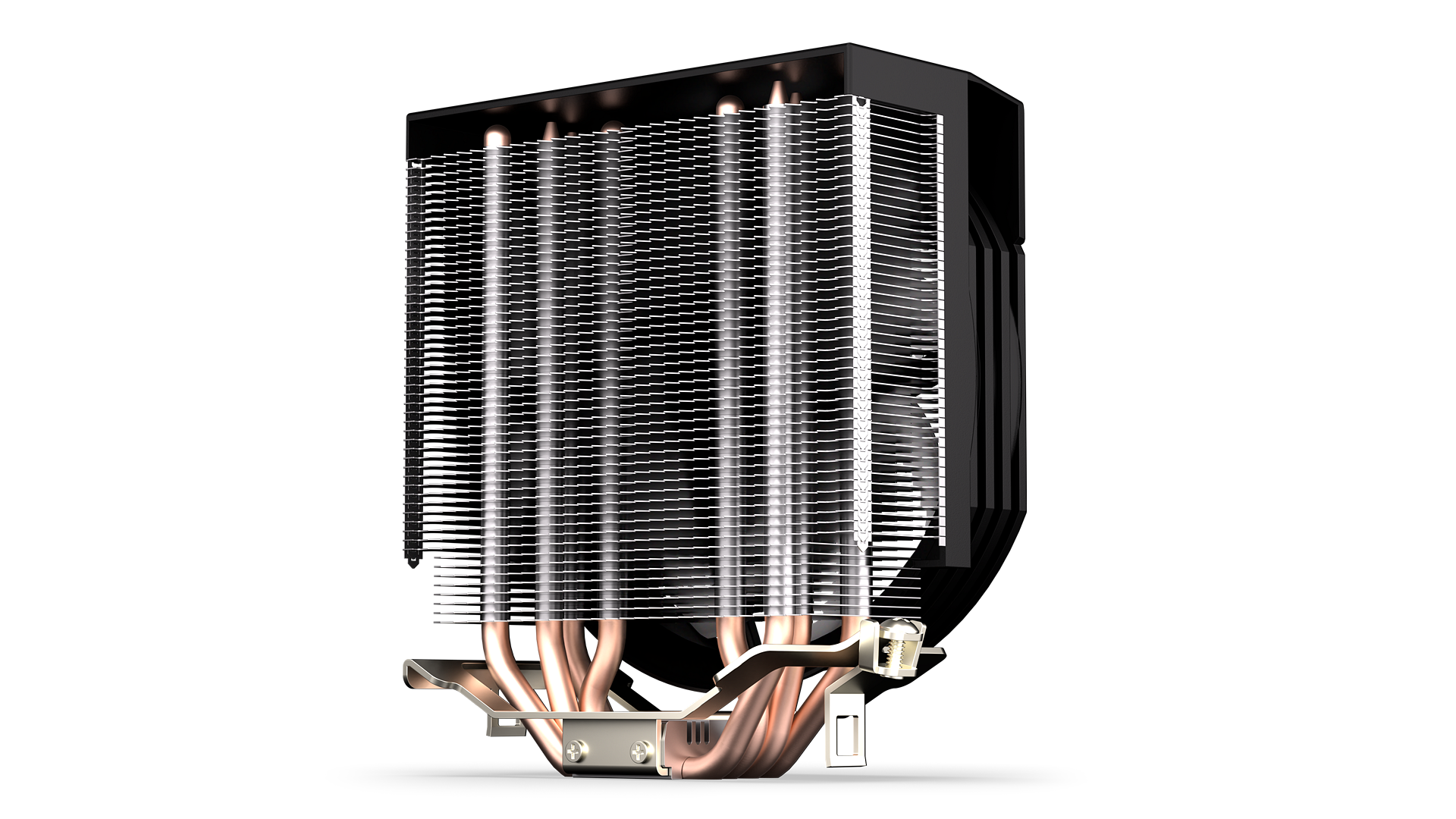

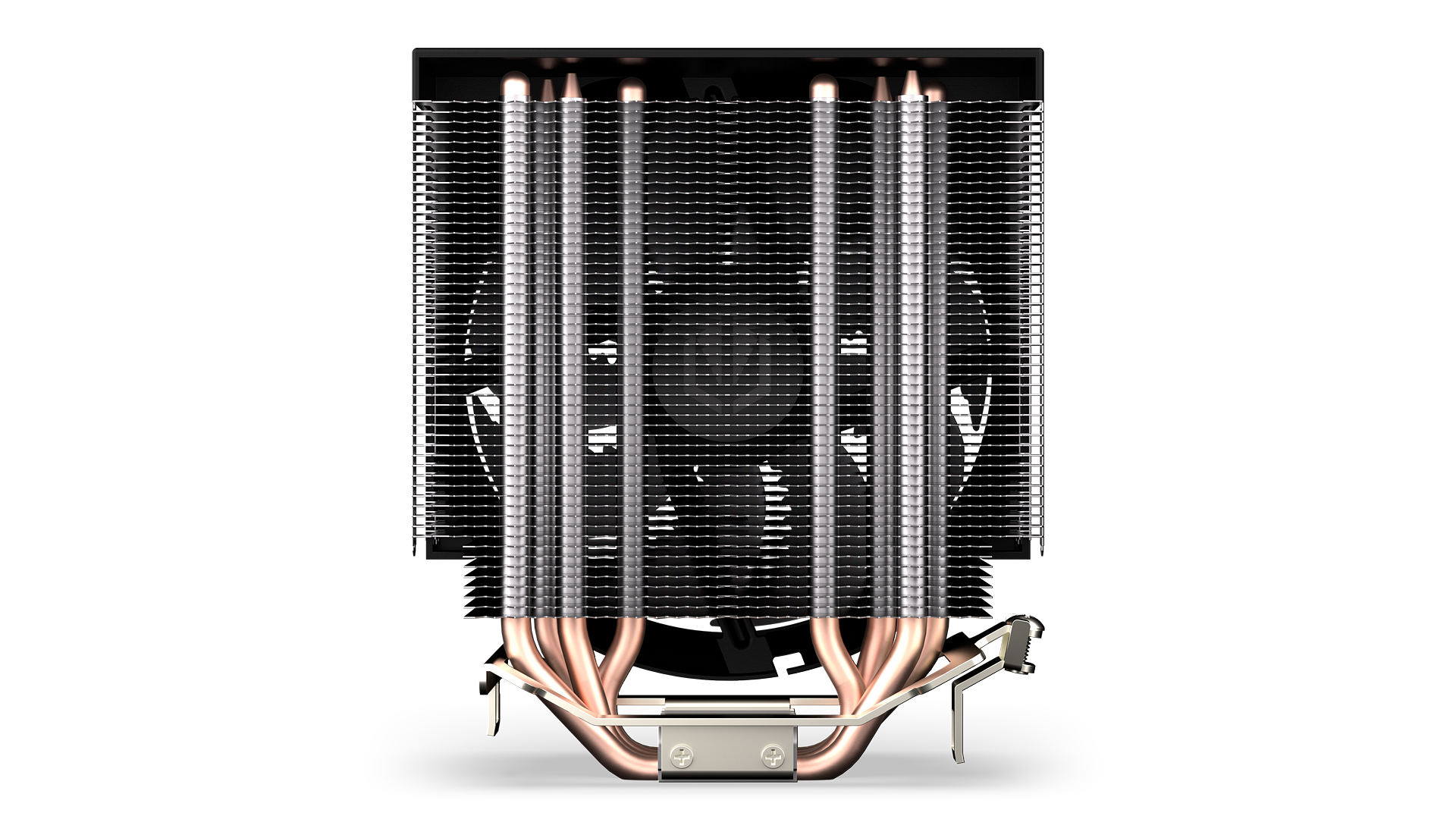

The Spartan 5 MAX ARGB cooler is only 146 mm tall, making it a suitable choice for most small computer cases. The densely finned radiator with four heat pipes that make direct contact with the CPU effectively collects thermal energy and transfers it to the moving air – even during prolonged operation at full load.

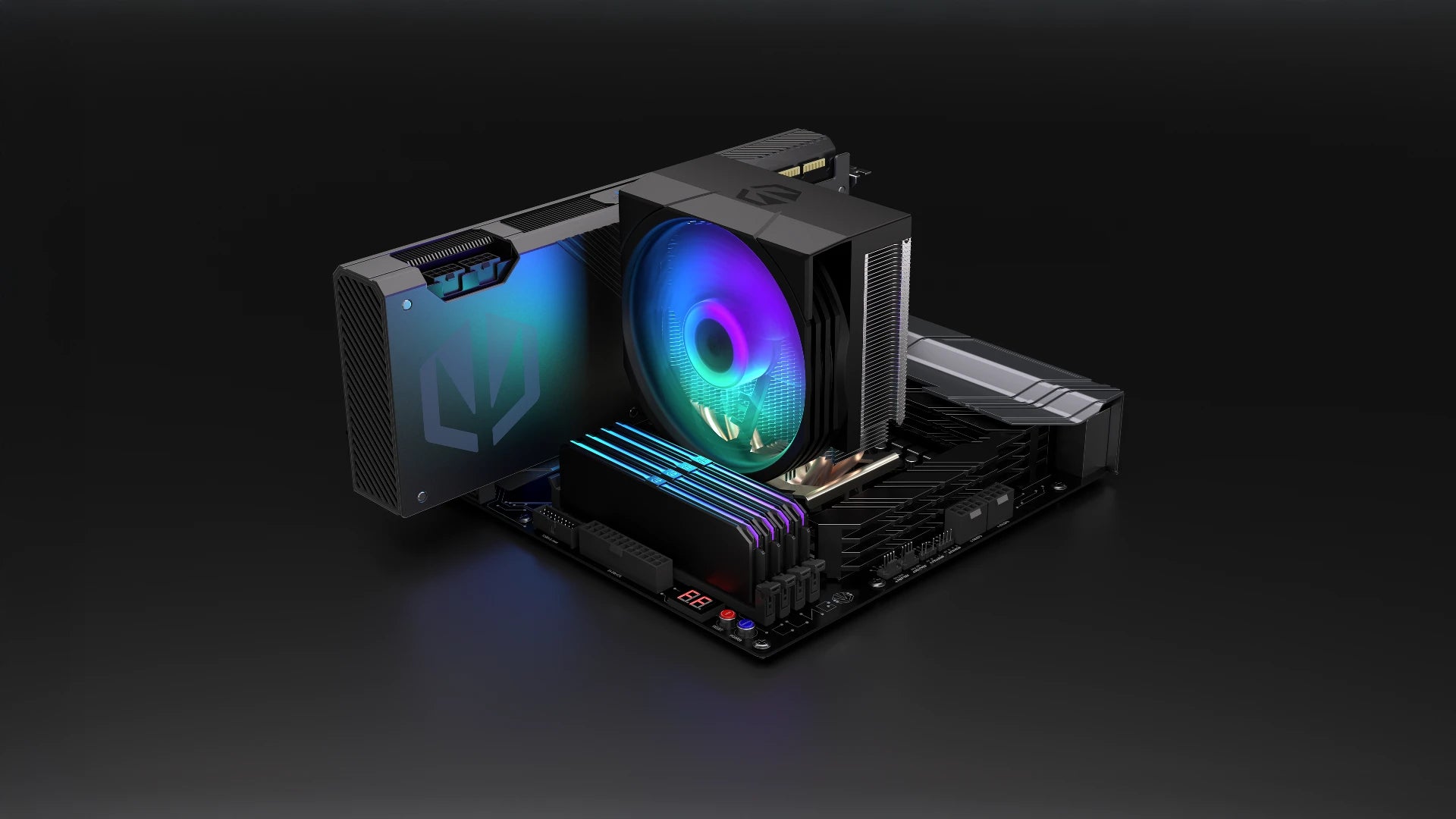

Radiator ENDORFY Spartan 5 MAX ARGB w uruchomionym podświetleniem ARGB – widok z boku

ARGB lighting with Nano-Reset controller

The air cooling fan is equipped with ARGB lighting that can be configured to your preferences when connected to a compatible motherboard's 3-pin ARGB header via its software. If the board does not support this, the included controller can activate predefined effects and switch between them (and the motherboard control mode) using the button.

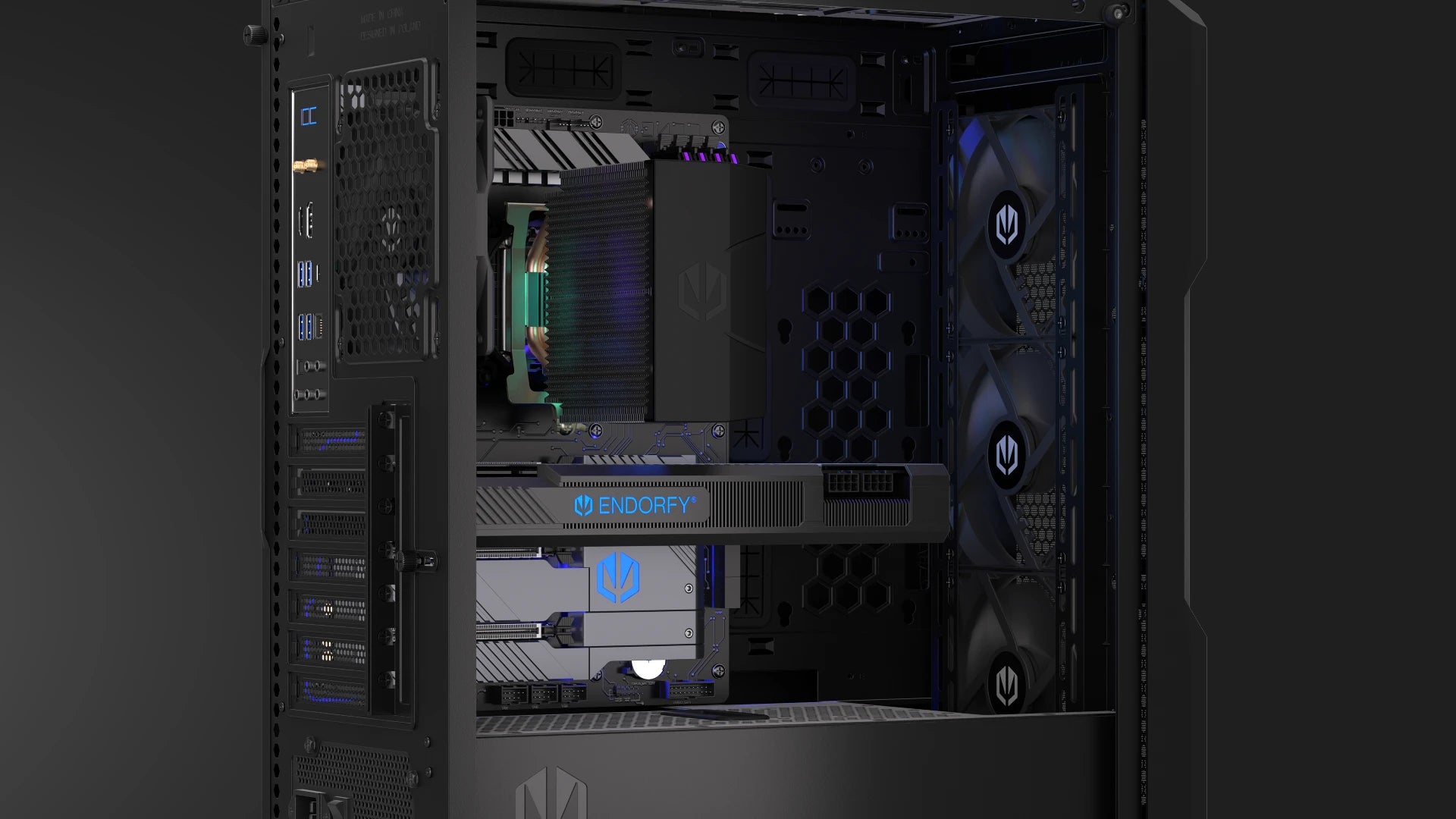

Radiator ENDORFY Spartan 5 MAX ARGB zamontowany w obudowie PC – widok z boku

Quick installation and wide compatibility

The Spartan 5 MAX ARGB cooling unit can be installed without additional tools – the included step-by-step manual walks you through the entire assembly process, which is simple even for users building a PC for the first time. The Fluctus 120 PWM ARGB fan is pre-installed on the heatsink, and the Pactum PT-3 thermal paste is already pre-applied, which further shortens and eases installation. The cooler is compatible with a wide range of popular AMD and Intel CPU sockets.

Radiator ENDORFY Spartan 5 MAX ARGB z ikoną symbolizującą 6 lat gwarancji

6-year warranty

A construction based on top-quality materials guarantees high durability. We are confident in the quality of ENDORFY equipment, which is why the ENDORFY Spartan 5 MAX ARGB cooler comes with a 6-year warranty. It's an investment in the system's long-term reliability.

Key features you'll love about the Spartan 5 MAX ARGB

Compact form factor, only 146 mm tall

Efficient radiator with 4 heat pipes

Preinstalled Fluctus 120 PWM ARGB fan

Psychoacoustic fan optimization

Impressive ARGB lighting

Compatibility with a wide range of Intel and AMD sockets

Pre-applied Pactum PT-3 thermal paste

Tool-free installation

Up to a 6-year warranty

Product dimensions for Spartan 5 MAX ARGB

Technical specification Spartan 5 MAX ARGB Fan

Technical specifications

ARGB lighting yes
Heat pipes [pcs] 4
Warranty months 72
Maximum number of fans [pcs] 2
MTBF [h] 100000
Voltage (LED) [V] 5
Voltage (fan) [V] 12
Current (LED, peak) [A] 0.28
Current (fan, peak) [A] 0.23
Speed [RPM] 250 (±100) – 1500 (±10%)
Product type CPU air cooling system
Fan type Integrated
Speed control PWM
TDP [W] 180
Heatsink type tower
Radiator dimensions 146×125×65 mm
Fan dimensions 120x120x25 mm
Height (including fan) [mm] 146
Connector (LED) 3-pin (female + male)
Power connector 4-pin (male and female)
Lifespan [h] 100000

Bearing

FDB yes

Included fans [pcs]

1

AMD CPU compatibility

STRX4 no
AM5 yes
AM4 yes
AM3 (+) yes
AM2 (+) yes
FM2 (+) yes
FM1 yes

Intel CPU compatibility

LGA1700 yes
LGA1200 yes
LGA115X yes
LGA2066 no
LGA2011-3 no
LGA2011 (square ILM) no
LGA1366 no
LGA775 no
LGA1851 yes

Package contents

Spartan 5 MAX ARGB radiator with integrated Fluctus 120 PWM fan and pre-applied Pactum PT-3 1
Mounting kit 1

Downloads

EY3A004_Spartan-5-MAX-ARGB-EN.d20260409-u120051.zip

Instructions

Spartan 5 MAX ARGB (EY3A004)
