Signum M30 Air PC Case

299,00 zł
299,00 zł
Lowest price in the last 30 days: 299,00 zł

Signum M30 Air is a mini-tower case designed for microATX and smaller motherboards, offering broad PC configuration options. It fits graphics cards up to 345 mm, 240 mm radiators, up to seven 120 mm fans, and air cooling up to 159 mm.

View full technical specification
Color
ARGB lighting
In Stock
Fast Delivery
Risk-free returns within 14 days
Buy now, pay later
Data security

You can find the warranty terms HERE.

Cooling Sp. z o.o.
Sokołowska 24
05-806 Sokołów
Poland

SKU: EY2A019

EAN: 5903018668888

ENDORFY Signum M30 Air EY2A019-PC Case Left View Glass Panel Inside Components Inscription ENDORFY

Key features of the Signum M30 Air PC case

Obudowa ENDORFY Signum M30 Air ze zdjętym panelem przednim i widocznymi wentylatorami oraz wizualizacją przepływu powietrza
Obudowa ENDORFY Signum M30 Air ze zdjętymi panelami i widocznymi wentylatorami – zbliżenie na front
Model zdejmujący szklany panel boczny z obudowy ENDORFY Signum M30 Air
Obudowa ENDORFY Signum M30 Air z oznaczonymi formatami kompatybilnych płyt głównych Mini-ITX oraz microATX

High-performance ventilation

A ventilated mesh-panel design with three preinstalled fans keeps temperatures low.

Three high-performance fans

Preinstalled Stratus 120 PWM fans with FDB bearings, connected to a PWM splitter.

Tempered glass panel

A tempered glass side panel showcases components, and the cable-routing space makes tidy cable management easy.

Great capabilities in a small form factor

The compact microATX case fits graphics cards up to 345 mm, 240 mm radiators, and up to seven fans, offering extensive configuration options.

Discover the possibilities of the Signum M30 Air

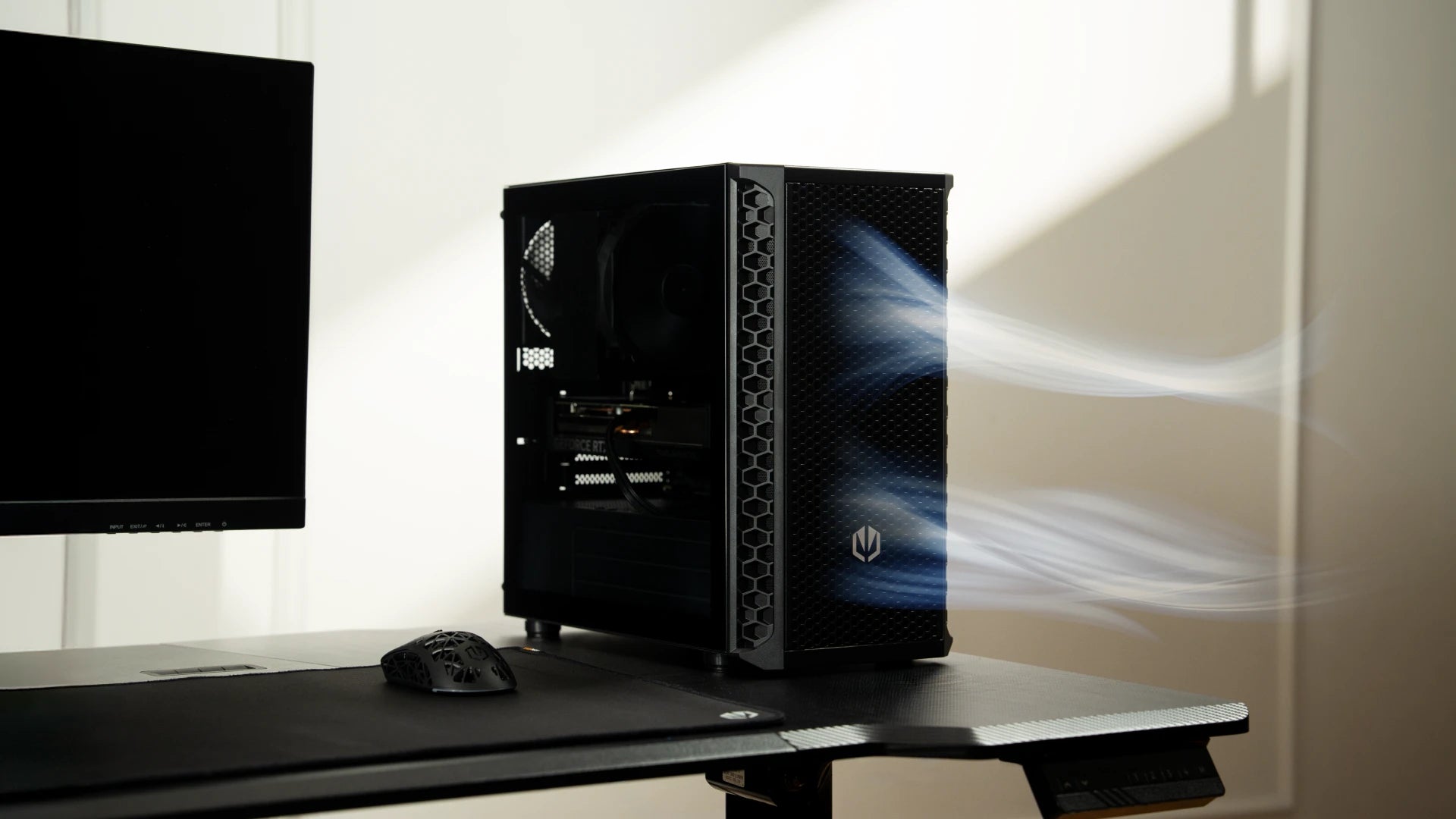

Obudowa ENDORFY Signum M30 Air ze zdjętym panelem przednim i widocznymi wentylatorami oraz wizualizacją przepływu powietrza

Efficient cooling and dust protection

The microATX ENDORFY Signum M30 Air case was designed with high airflow and effective component cooling in mind. The front mesh panel, supported by two factory-installed front Stratus fans, ensures free airflow into the interior of the computer case. Warm air is efficiently expelled by the rear fan and the perforated top section of the chassis, which translates into stable temperatures during PC use.

The Signum M30 Air allows for the installation of up to seven 120 mm fans, giving great freedom in choosing a cooling configuration. The front panel acting as a filter and the two additional magnetic filters can be quickly removed without tools, making regular cleaning easier.

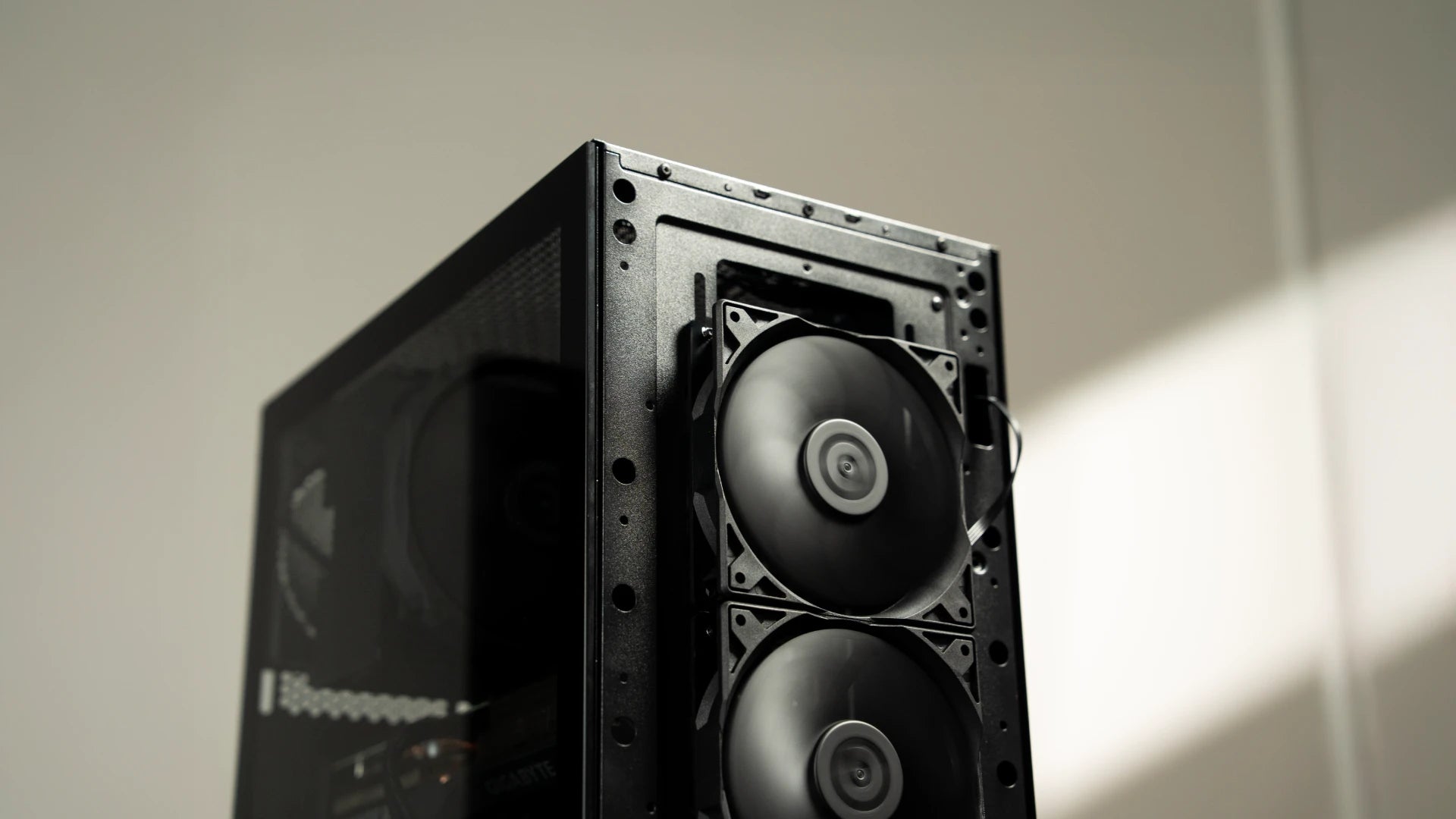

Obudowa ENDORFY Signum M30 Air ze zdjętymi panelami i widocznymi wentylatorami – zbliżenie na front

Three quiet fans included

With the Signum M30 Air computer case you receive a set of three factory-installed quiet fans: Stratus 120 PWM connected to a preinstalled splitter. Thanks to it, you only need to connect a single 4-pin PWM cable to the motherboard header. Developed together with Synergy Cooling, the Stratus fans combine high performance with very good operating characteristics. The FDB bearing guarantees long life and reliability, and PWM control allows precise speed regulation, including operation in fan-stop mode.

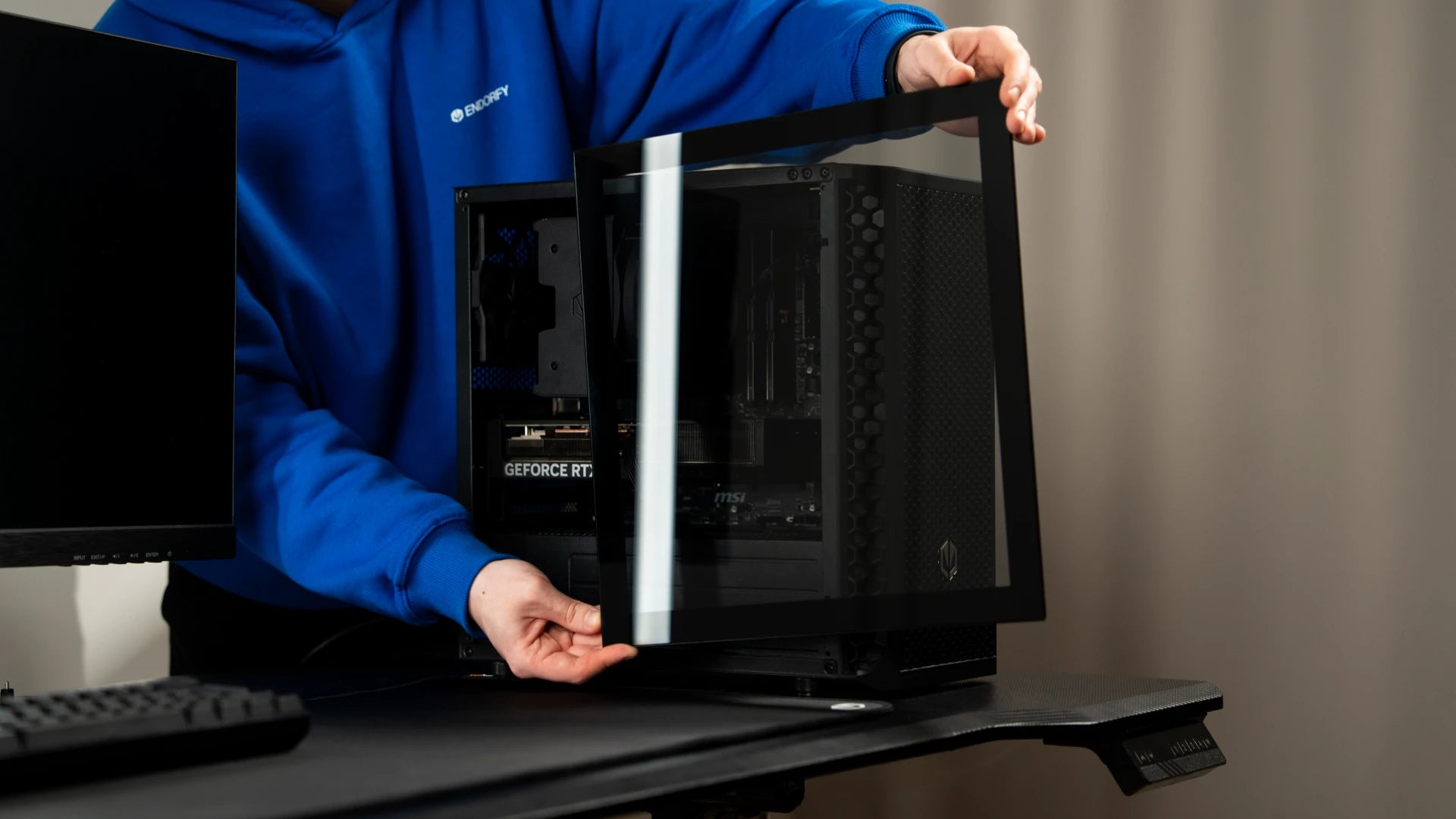

Model zdejmujący szklany panel boczny z obudowy ENDORFY Signum M30 Air

Tempered glass and hidden cabling

The tempered glass side panel allows you to spectacularly showcase the interior of the build while also standing out for its refined quick-mount system. The space behind the motherboard tray and well-positioned grommets and hooks for zip ties enable neat cable routing or hiding. This improves the appearance of the whole build and makes it easier to keep the interior tidy, as well as improving airflow in the computer.

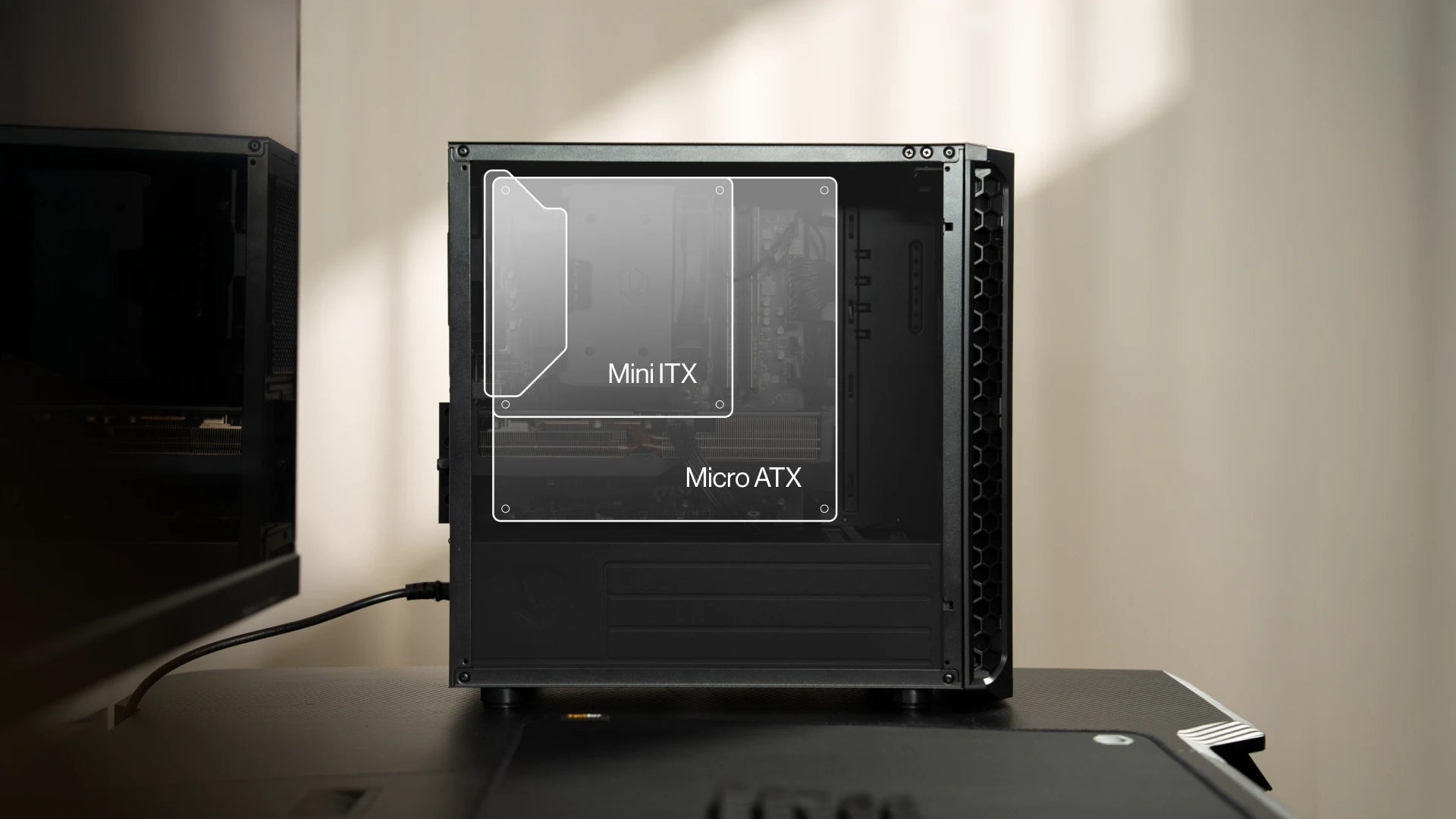

Obudowa ENDORFY Signum M30 Air z oznaczonymi formatami kompatybilnych płyt głównych Mini-ITX oraz microATX

Great capabilities in a compact case

Dual-chamber ENDORFY Signum M30 Air case was designed for microATX and smaller motherboards. Despite its compact size, the case comfortably fits modern components, e.g., graphics cards up to 345 mm long and power supplies up to 180 mm long (larger ones after removing the drive cage) and two 2.5\" and 3.5\" drives each.

The case allows installation of up to seven 120 mm fans, liquid cooling up to 240 mm at the front or top, as well as air coolers up to 159 mm tall. It also has four expansion card slots with screw-out covers. This makes the Signum M30 Air great even for advanced compact-format configurations.

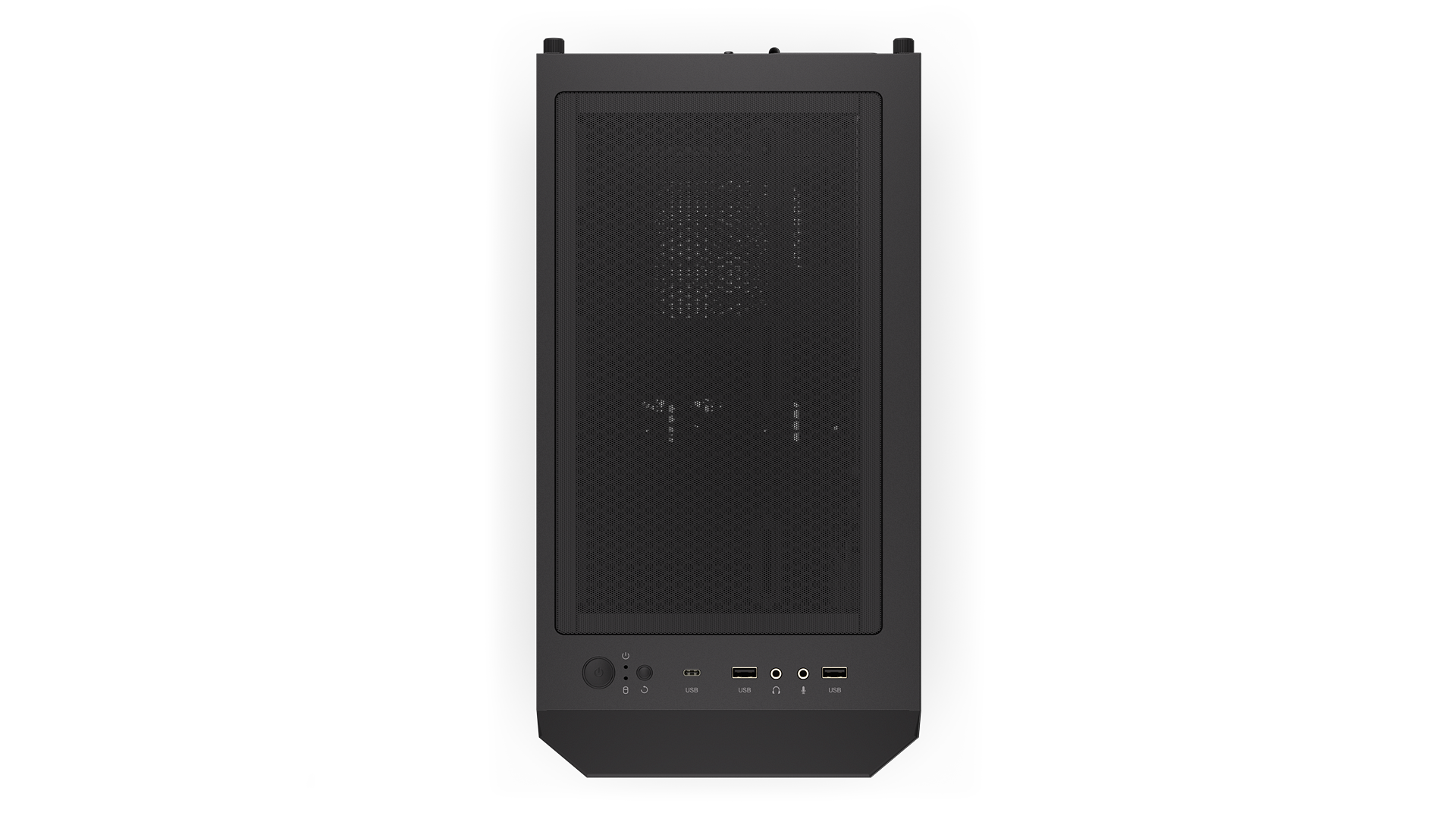

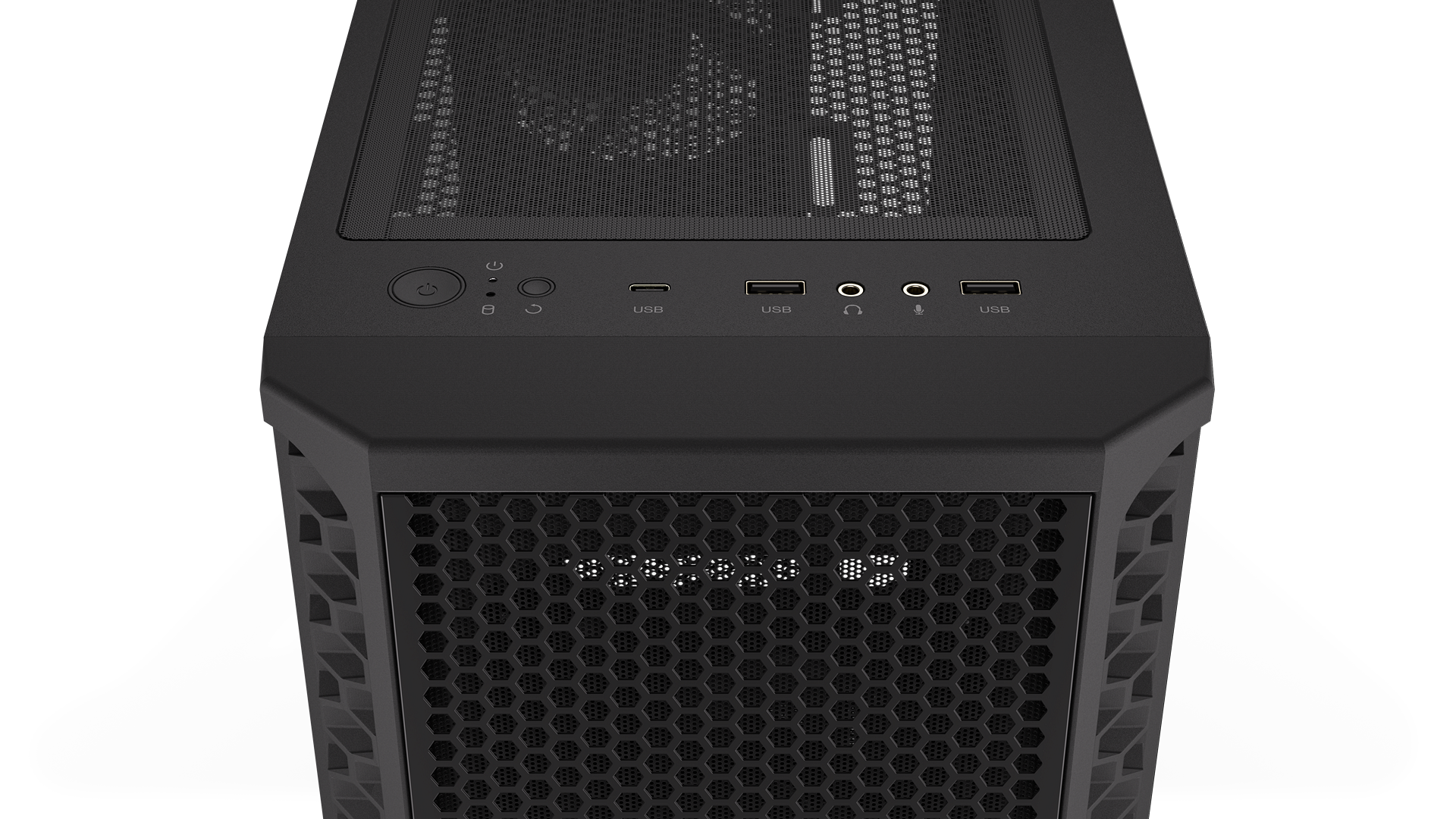

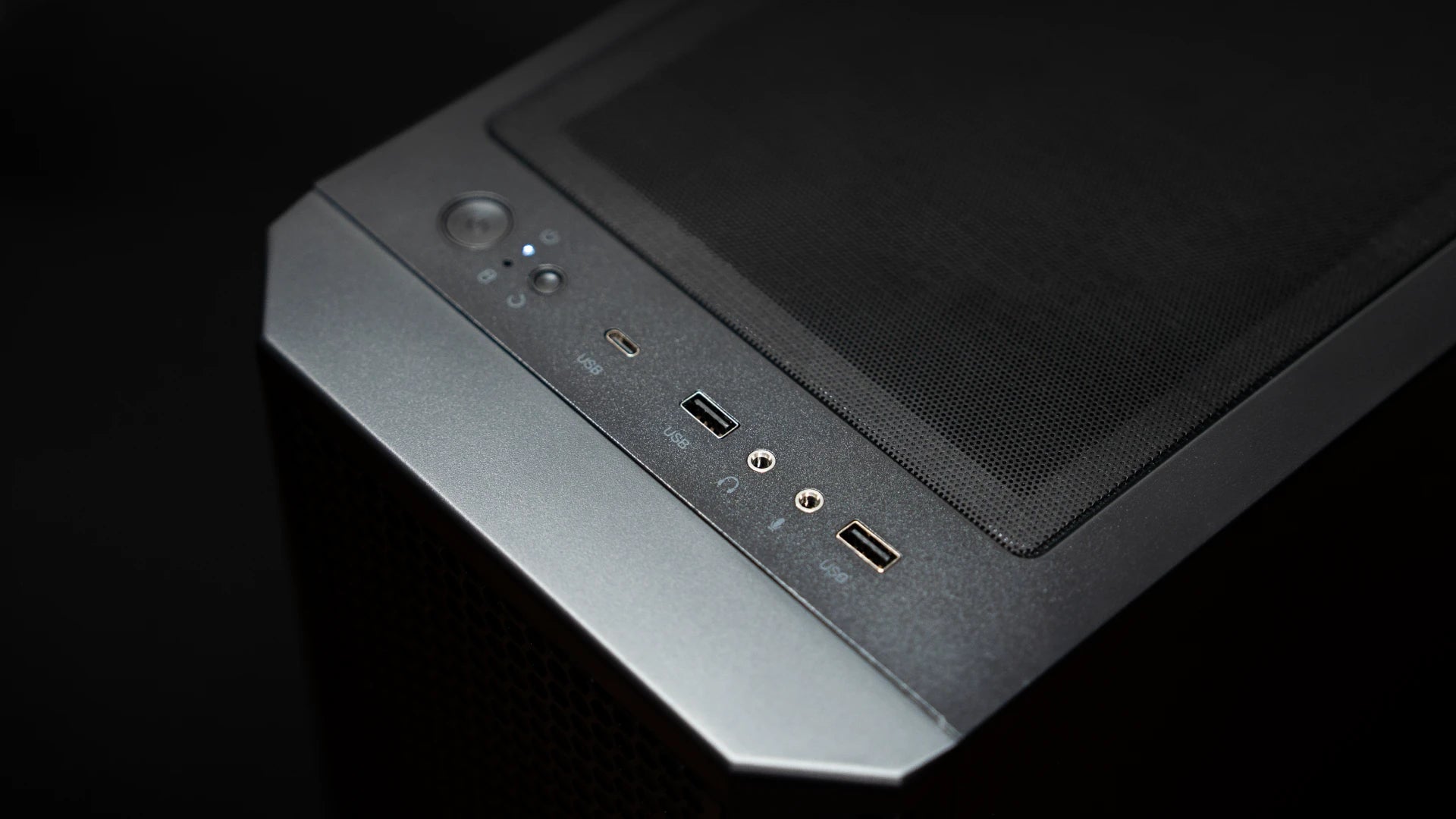

Górny panel I/O obudowy ENDORFY Signum M30 Air z przyciskami i portami

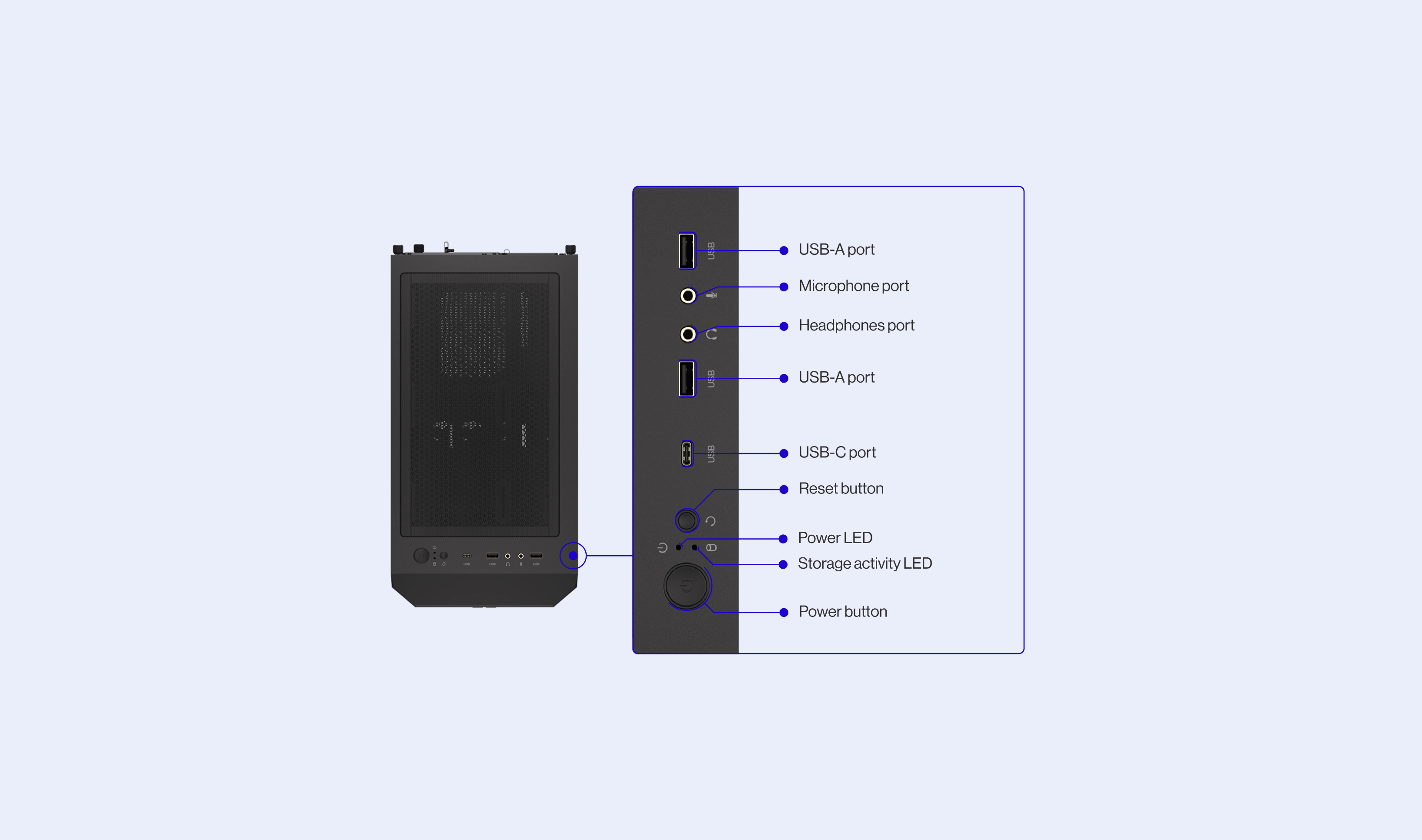

I/O panel with fast USB-C

On the top panel of this small computer case there's a modern and functional I/O panel that provides convenient access to the most used ports. Available are two USB-A 3.2 Gen 1 ports (Type-A up to 5 Gb/s), two 3.5 mm audio minijack connectors for headphones or speakers and a microphone, and also a very fast USB-C 3.2 Gen 2×2 port (up to 20 Gb/s). Thanks to this you can connect modern accessories and devices without problems – quickly, comfortably and without the need for adapters.

ENDORFY Signum M30 Air EY2A019 PC Case Side View Removed Panel Compatibility Icons Max Dimensions Config Fans
ENDORFY Signum M30 Air EY2A019 PC Case Top View Compatibility Config IO Panel
ENDORFY Signum M30 Air EY2A019 PC Case Side View Removed Panel Compatibility Icons Max Dimensions Config CPU GPU PSU
ENDORFY Signum M30 Air EY2A019 PC Case Side View Removed Panel Compatibility Icons Max Dimensions Config Radiators
ENDORFY Signum M30 Air EY2A019 PC Case Side View Removed Panel Compatibility Icons Max Dimensions Config Drives

Features you'll love about the Signum M30 Air

Ventilated mesh-panel design

Three dust filters (including two magnetic ones)

Three preinstalled Stratus 120 PWM fans

FDB bearings and PWM control with fan-stop

Tempered glass side panel

Cable space behind the motherboard tray

USB-C 3.2 Gen 2×2 port (up to 20 Gb/s)

See the product dimensions for the Signum M30 Air

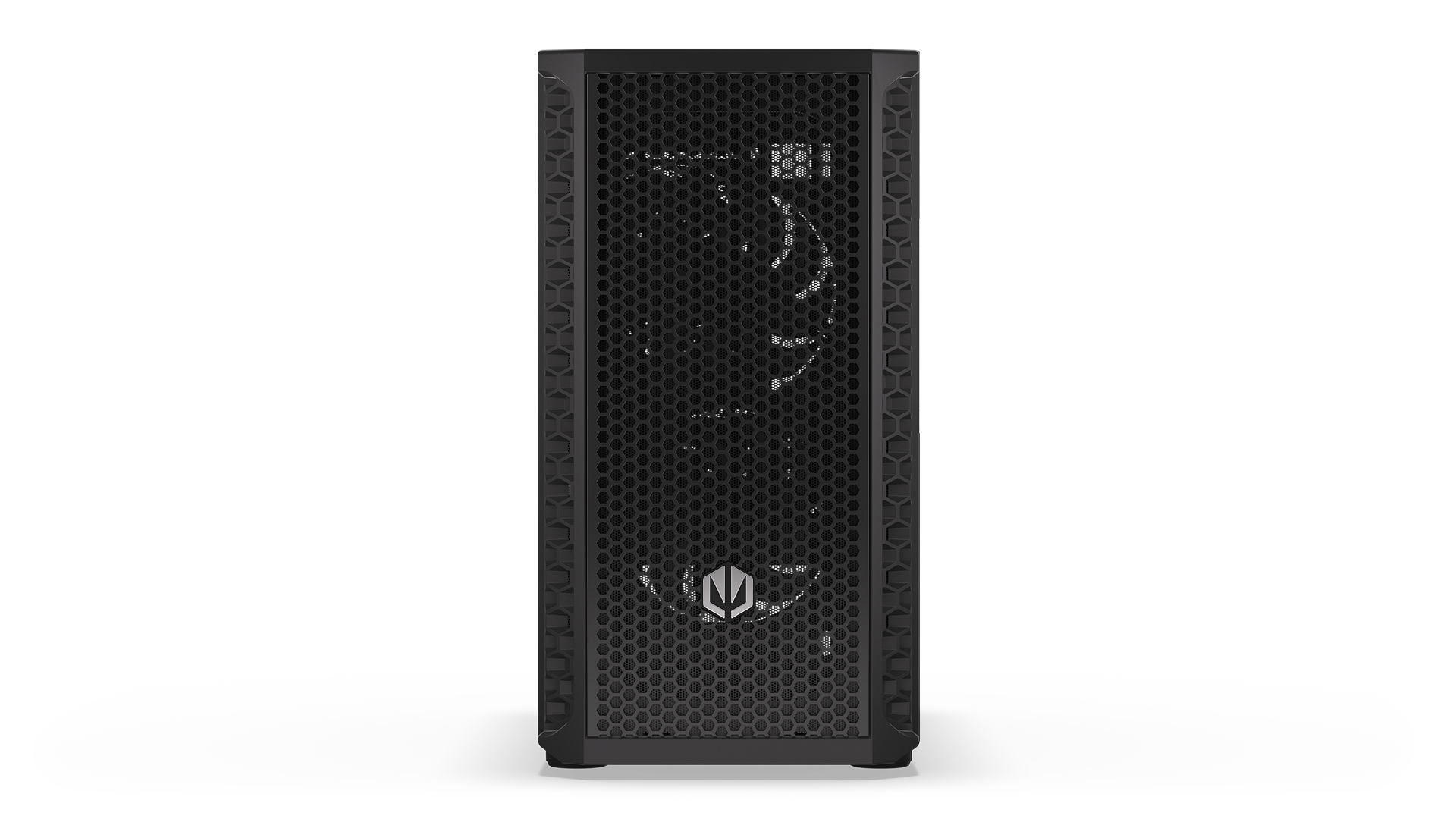

ENDORFY Signum M30 Air EY2A019-PC Case Front View Dimensions Height Width
ENDORFY Signum M30 Air EY2A019-PC Case Left View Tempered Glass Side Panel Height Depth

Technical specification Signum M30 Air PC Case

Technical specifications

Color Black
Dimensions [mm] 387x205x401
ARGB lighting no
Warranty months 36
Number of fans (maximum) [pcs] 7
Number of fans included 3
Maximum graphics card (GPU) length [mm] 345
Maximum power supply (PSU) length [mm] 180
Maximum CPU cooler height [mm] 159
Expansion card slots [pcs] 4
Side panel glass
Product type PC case

Motherboard standard

microATX yes
Mini-ITX yes
FlexATX yes

Number of internal bays [pcs]

3.5" 2
2.5" 2

Included fans [pcs]

Front 2× Stratus 120 PWM (200–1400 rpm)
Rear 1x Stratus 120 PWM (200–1400 rpm)

Radiator compatibility [mm]

Front 1× 240
Top 1× 240

Dust filters

Front yes (mesh panel)
Top yes
Bottom yes

I/O panel

USB-C 1× USB-C 3.2 Gen 2x2 (up to 20 Gbps)
USB-A 2× USB-A 3.2 Gen 1 (up to 5 Gbps)
Headphones 1× 3.5 mm mini-jack
Microphone 1x 3.5 mm mini-jack
POWER button 1
RESET button 1

Package contents

Signum M30 Air Case 1
Preinstalled Stratus 120 PWM fan 3
Preinstalled PWM fan splitter 1
Mounting kit 1
User manual 1
