Elementum E5 550 W Power Supply

209,00 zł
209,00 zł
Lowest price in the last 30 days: 209,00 zł

Elementum E5 550 W is a stable power supply with 80 PLUS® certification that performs well both as a model used by PC integrators and when building a computer at home. Equipped with the necessary fixed cabling, it allows powering a graphics card using 2 PCI-E connectors (8-pin and 6-pin).

View full technical specification
Certificates
80 PLUS® 80 PLUS®
Power
In Stock
Fast Delivery
Risk-free returns within 14 days
Buy now, pay later
Data security

You can find the warranty terms HERE.

Cooling Sp. z o.o.
Sokołowska 24
05-806 Sokołów
Poland

SKU: EY7A001

EAN: 5903018666105

ENDORFY Elementum E5 550W EY7A001 Gallery 01 PSU Front Right Side View Socket

Key features of the Elementum E5 550 W power supply

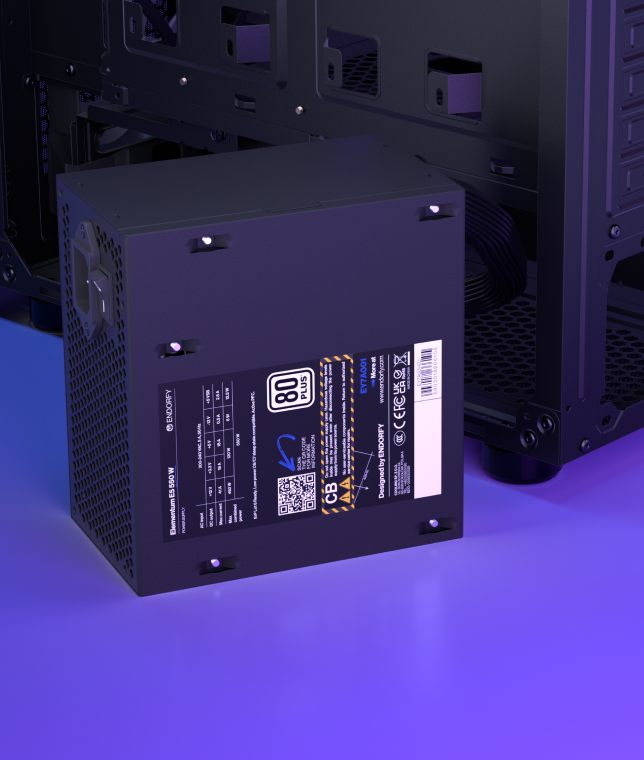

Zasilacz ENDORFY Elementum E5 550 W – zabezpieczenia OVP UVP SCP OPP SIP
Stałe okablowanie zasilacza ENDORFY Elementum E5 350 W
Wentylator 120 mm w zasilaczu ENDORFY Elementum E5 350 W
Mężczyzna montujący komputer przy użyciu śrubokręta

Protection package

OVP, UVP, SCP, OPP and SIP protections protect the unit from short circuits and overloads — when activated, they cause the power supply to shut down immediately.

Fixed cabling

Fixed cabling includes ATX 24-pin, EPS 4+4-pin, PCI-E 6+2-pin and 6-pin connectors, as well as MOLEX and SATA harnesses for powering drives and other devices.

Efficient 120 mm fan

The fan keeps the power supply cool even during demanding tasks, ensuring reliable operation.

3-year warranty

The power supply is covered by a 3-year manufacturer warranty.

Discover the possibilities of the Elementum E5 550 W

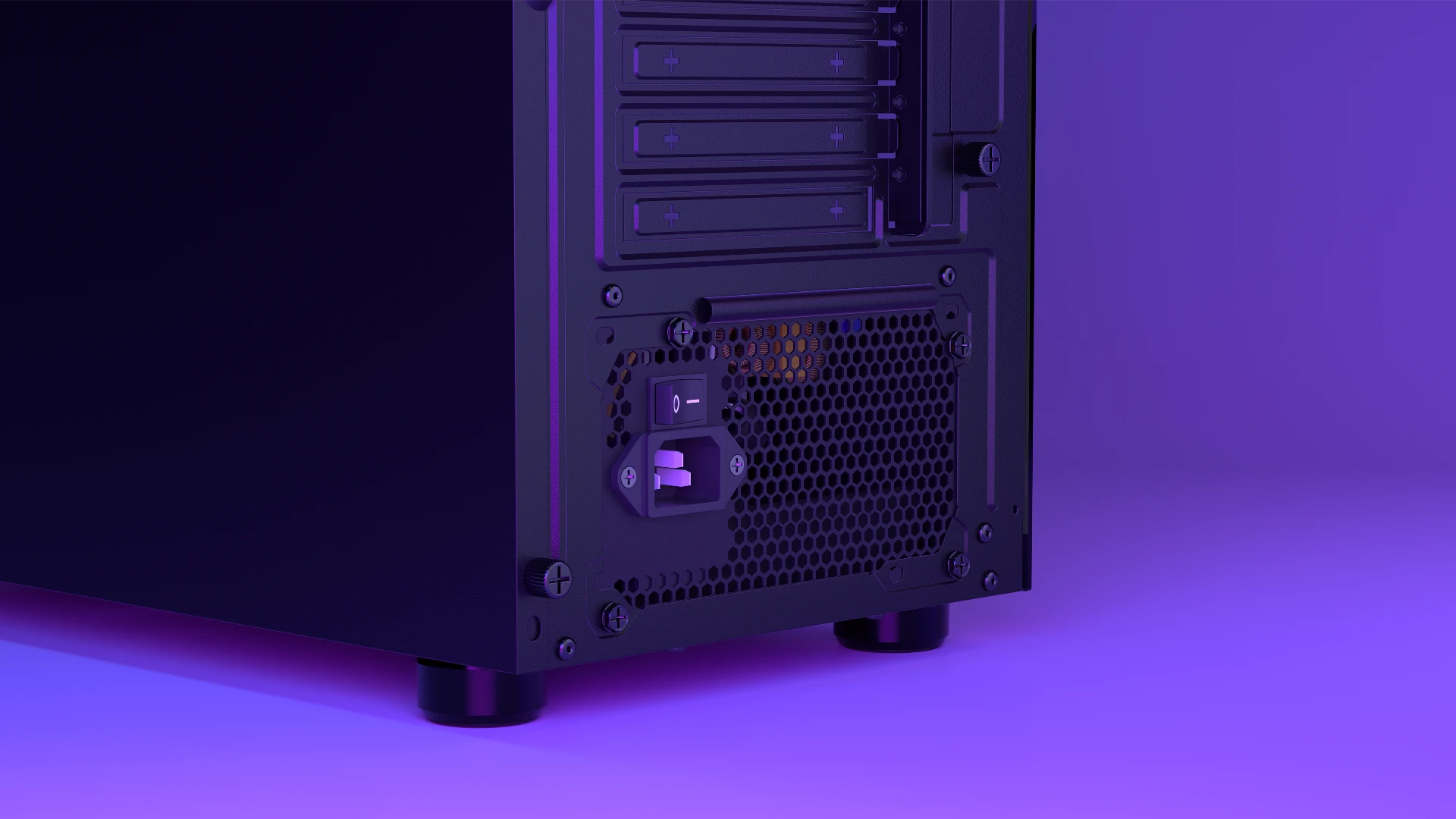

Zbliżenie na tył obudowy PC z zamontowanym zasilaczem ENDORFY Elementum E5 550 W – zabezpieczenia OVP UVP SCP OPP SIP

Protection package

A range of protections (OVP, UVP, SCP, OPP and SIP) protects the unit, among other things, against short circuits and overloads. In practice, this means that any fault or surge from the electrical installation will cause the power supply ElementumE5 550B7W and thus the computer to shut down immediately.

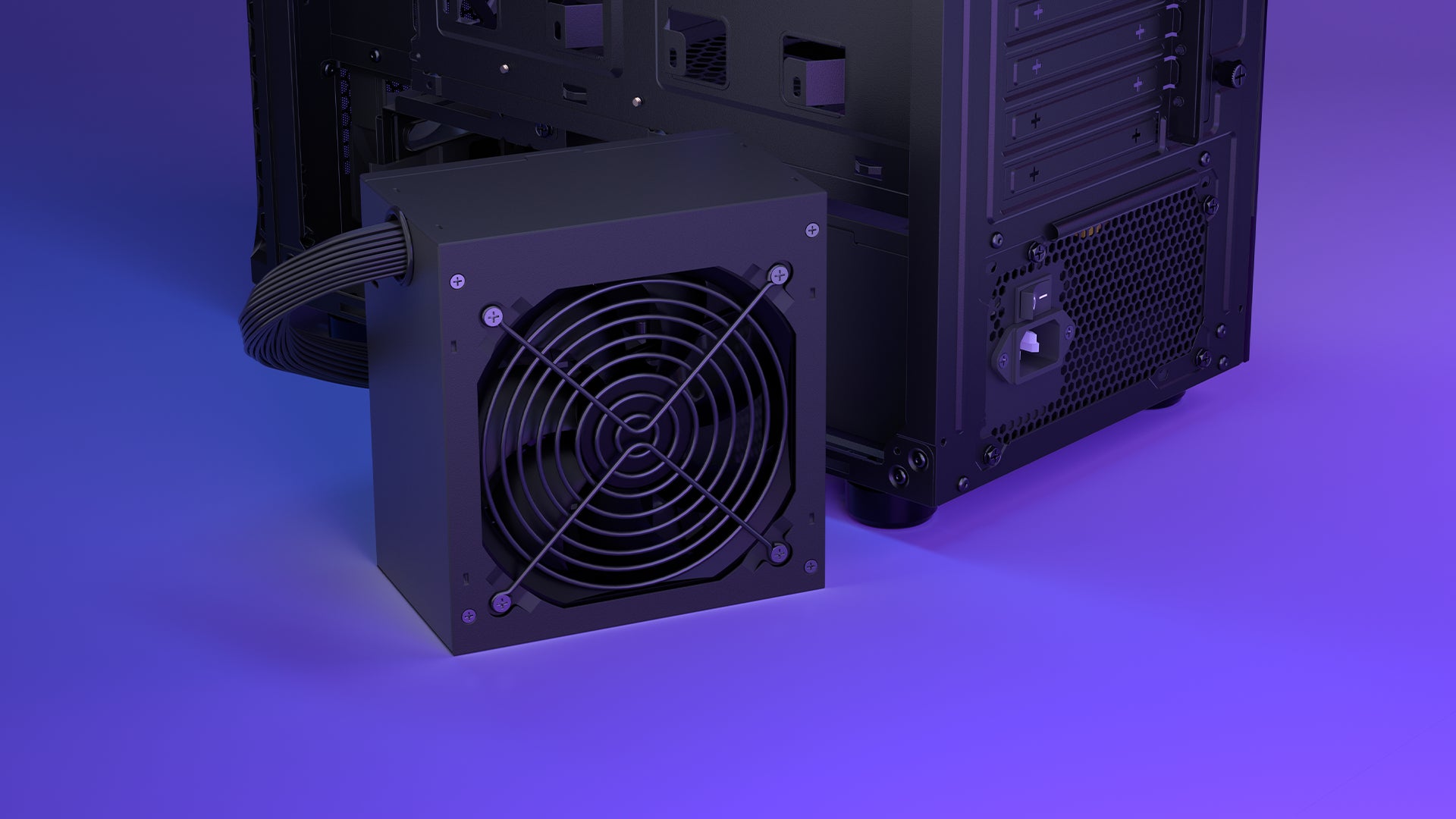

Tył obudowy PC ze stojącym obok zasilaczem ENDORFY Elementum E5 550 W z widocznym wentylatorem 120 mm

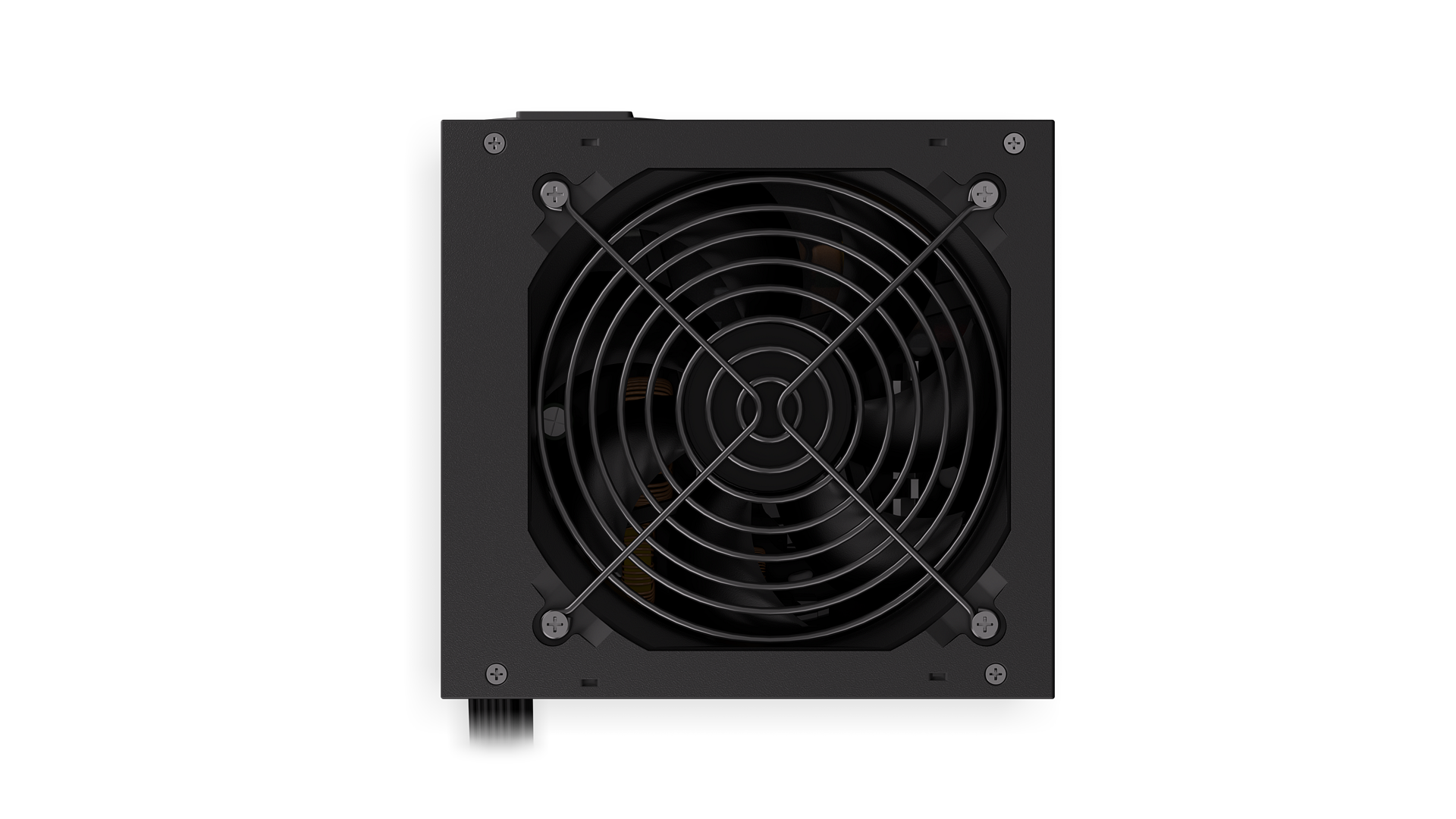

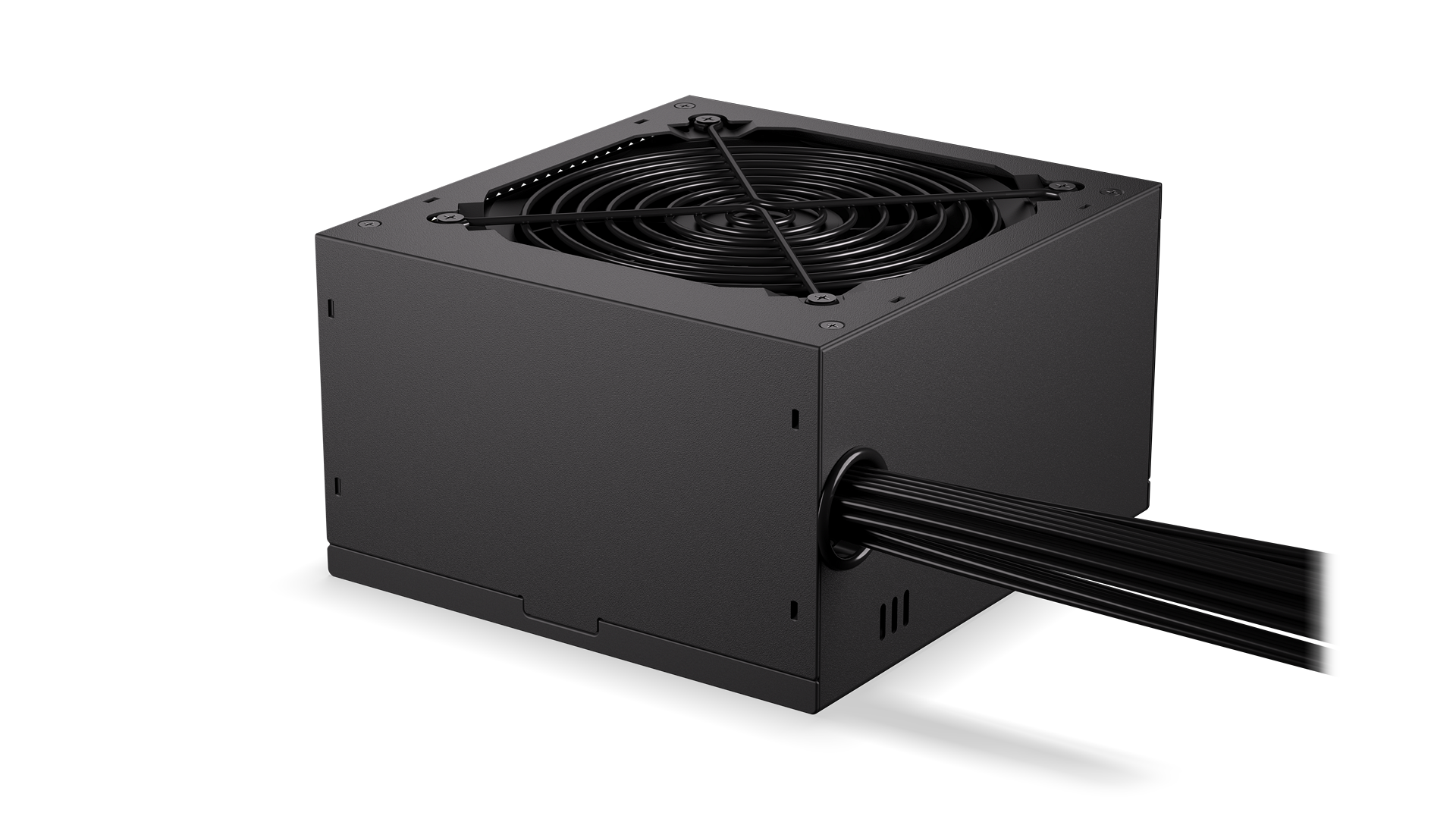

12-centimeter fan

The Elementum E5 550B7W is cooled by a 120 mm fan. Thanks to it, the entire power supply maintains a low temperature even during demanding tasks, and you can use your PC while maintaining quiet operation, which is especially useful in less soundproofed computer cases.

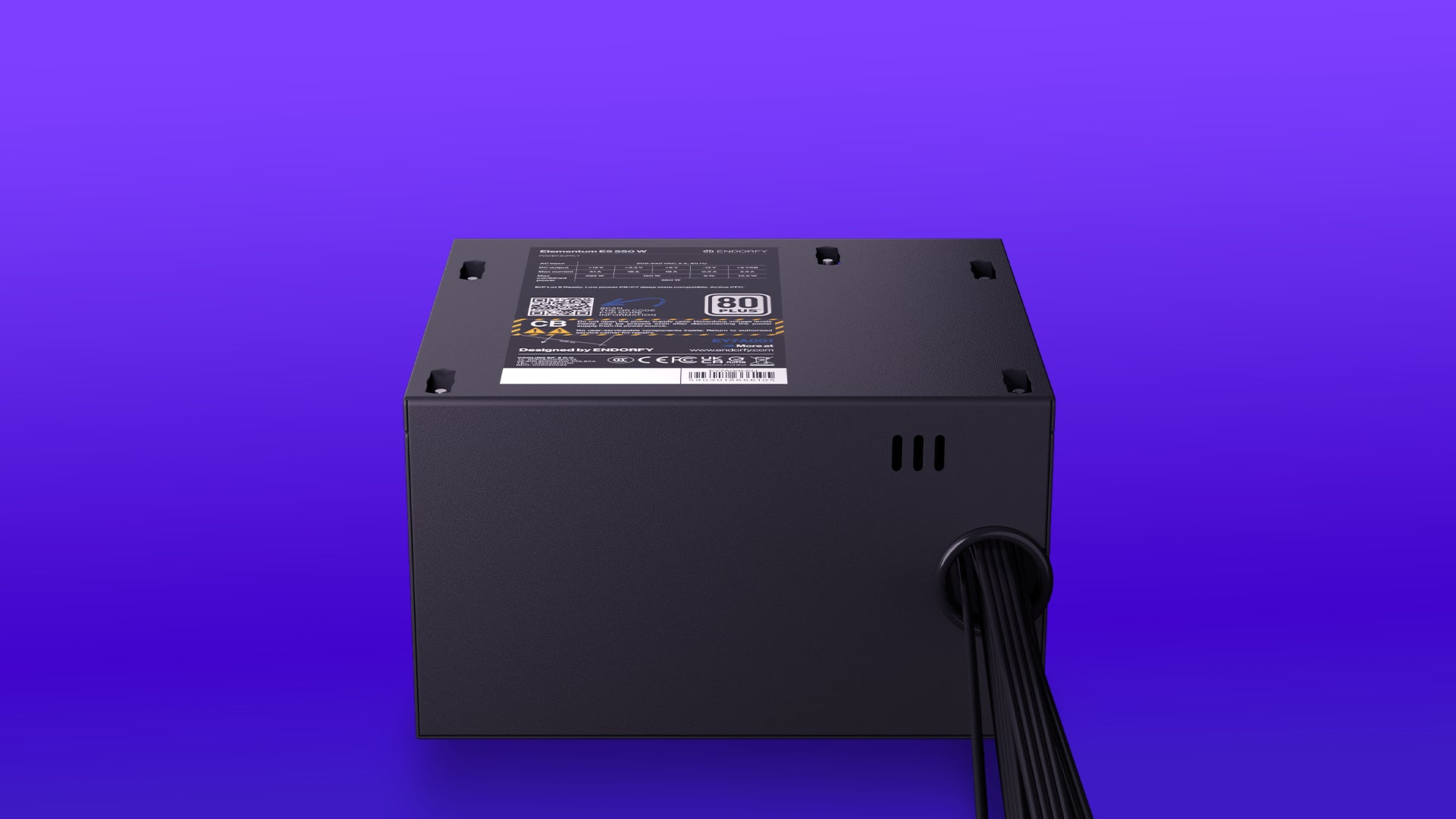

Zasilacz ENDORFY Elementum E5 550 W z widocznym okablowaniem

Cabling for your computer

The Elementum E5 550 W power supply is equipped with fixed cabling that includes all the connectors needed to deliver power in a typical computer build. The main ATX 12V and EPS 4+4-pin harnesses for the motherboard and CPU have lengths of 600 mm and 705 mm, respectively. GPU power is provided via a 560 mm cable with 6+2-pin and 6-pin ends, and storage drives or other devices can be powered via MOLEX and SATA connectors from the remaining two harnesses.

Mężczyzna montujący komputer przy użyciu śrubokręta

3-year warranty

We are confident in the quality and reliability of equipment bearing the ENDORFY logo. That is why the Elementum E5 550 W power supply comes with a 3-year warranty confirming its long-lasting and trouble-free operation.

Highlights you'll love about the Elementum E5 550 W

80 PLUS® certification

550 W power

2 PCI-E connectors (8- and 6-pin)

Protection package OVP, UVP, SCP, OPP and SIP

120 mm fan

3-year warranty

See the dimensions of the Elementum E5 550 W product

Technical specification Elementum E5 550 W Power Supply

Technical specifications

Dimensions [mm] 87×140×150
Efficiency 80 PLUS®
Warranty months 36
Number of connectors and cable lengths • 1× EPS 12V 8-PIN (4+4), 625 mm • 1× ATX 24-PIN, 450 mm • 1× PCI-E 8-PIN (6+2), 460 mm • 1× PCI-E 6-PIN, 560 mm • 4× SATA, 410 – 700 mm • 2× MOLEX, 410 - 555 mm
Continuous power [W] 550
Input voltage [V] 230
Product type ATX power supply
Cable type black braided cables
Fan 120 mm

Protections

OVP yes
UVP yes
OCP no
SCP yes
OPP yes
SIP yes
OTP no

Package contents

Elementum E5 550 W Power Supply
Mounting kit
Power cable
User manual

Downloads

EY7A001_Elementum-E5-550W-EN.d20260409-u120228.zip

Instructions

Elementum E5 550 W (EY7A001)
