Supremo FM5 Gold 750W

Mighty power supply that keeps your PC running steadily without unexpected interruptions resets. With Supremo FM5 Gold 750W, you enter God mode – and stay in it for a long time.

We created our power supply to work in harsh conditions. As a result, it doesn’t disappoint your PC even at 105° Celsius (thank the Japanese electrolytic and aluminum-polymer capacitors for this). No wonder it's 80 PLUS® Gold certified ;)

View specifications

Product code: EY7A008

    Supremo FM5 Gold 750W

    The Supremo FM5 Gold 750W is a mighty power supply unafraid of components’ demanding requirements. No wonder, because it’s packed with all the best for stable operation – say goodbye to unexpected coffee break resets.

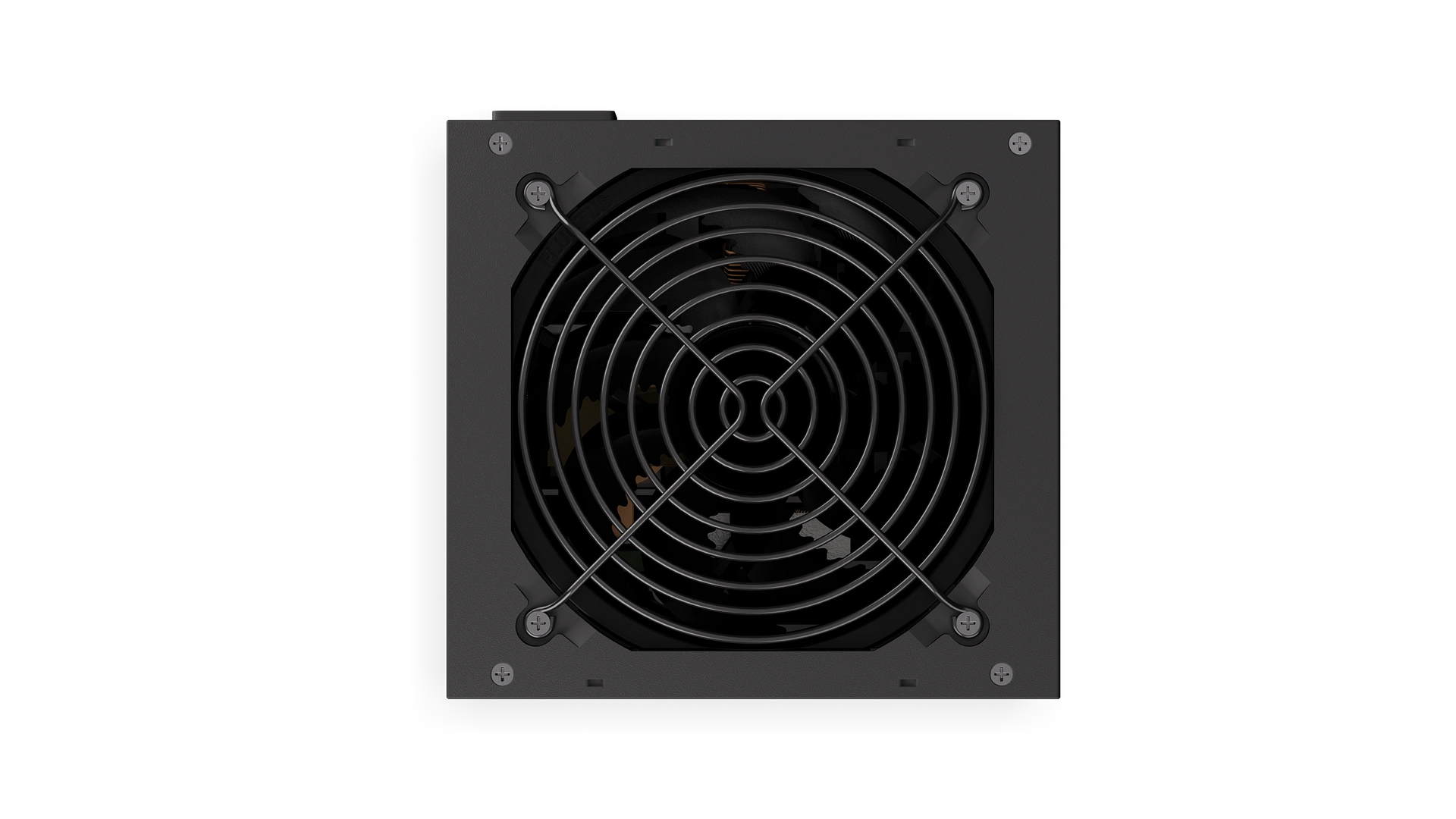

    It’s a DC-DC power supply for tight voltage regulation, stable operation, and a continuous power delivery of 750W. The Supremo FM5 Gold 750W has a 12 cm 120 mm Fluctus fan, so it’ll maintain the right temperature like there’s no tomorrow. No wonder this bad boy has been certified 80 PLUS® Gold.

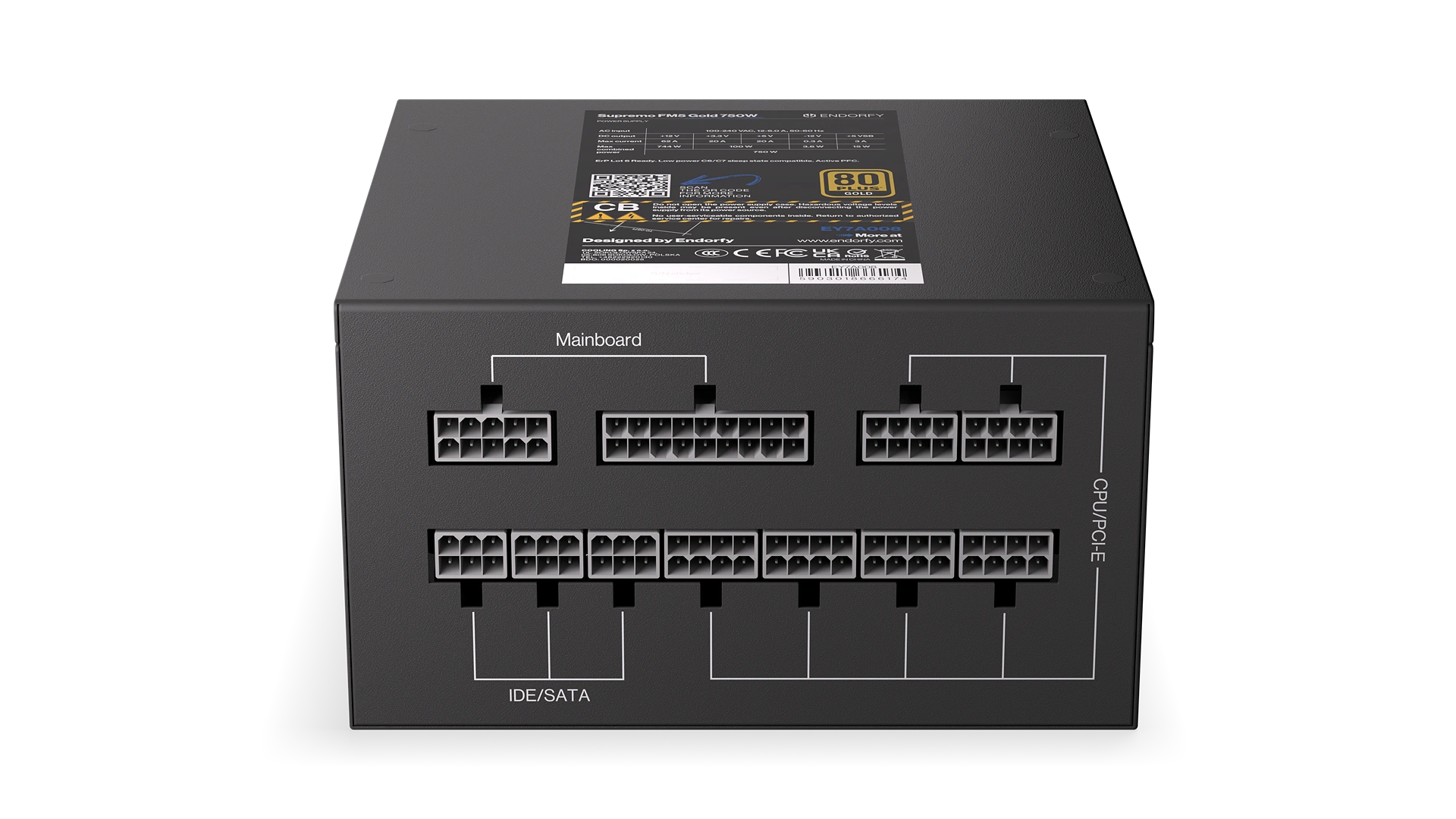

    And the cherry on top – our Supremo is only 14 cm long. That’s enough to fit even into smaller cases (and thanks to its fully modular build, you can plug in only the necessary cables).

    Dimensions

    (Click to zoom. Actual dimensions may vary.)

    Technical data

    • Product codeEY7A008
    • EAN-135903018666174
    • Warranty [months]84
    • Product typeATX power supply
    • Colorblack
    • Dimensions [mm]87×140×150
    • Continuous power [W]750
    • Efficiency80 PLUS® GOLD
    • Cabling typemodular
    • Fan

      120 mm Fluctus

      • Dimensions [mm]120×120×25
      • Speed [RPM]600 (±100) – 1400 (±10%)
      • Current capacity [A]
        • +12 V62
        • +3.3 V20
        • +5 V20
        • -12 V0.3
        • +5 VSB3
        • Protections
          • OVPyes
          • UVPyes
          • OCPyes
          • SCPyes
          • OPPyes
          • SIPyes
          • OTPyes
        • Input voltage [V]115/230
        • MTBF [h]100 000

        Set includes

        • Supremo FM5 Gold 750W power supply
        • 1× Modular cabling
        • 1× Power cord
        • 1× Mounting accessories
        • 1× User and safety manual
