Signum M30 Air

Please select a model

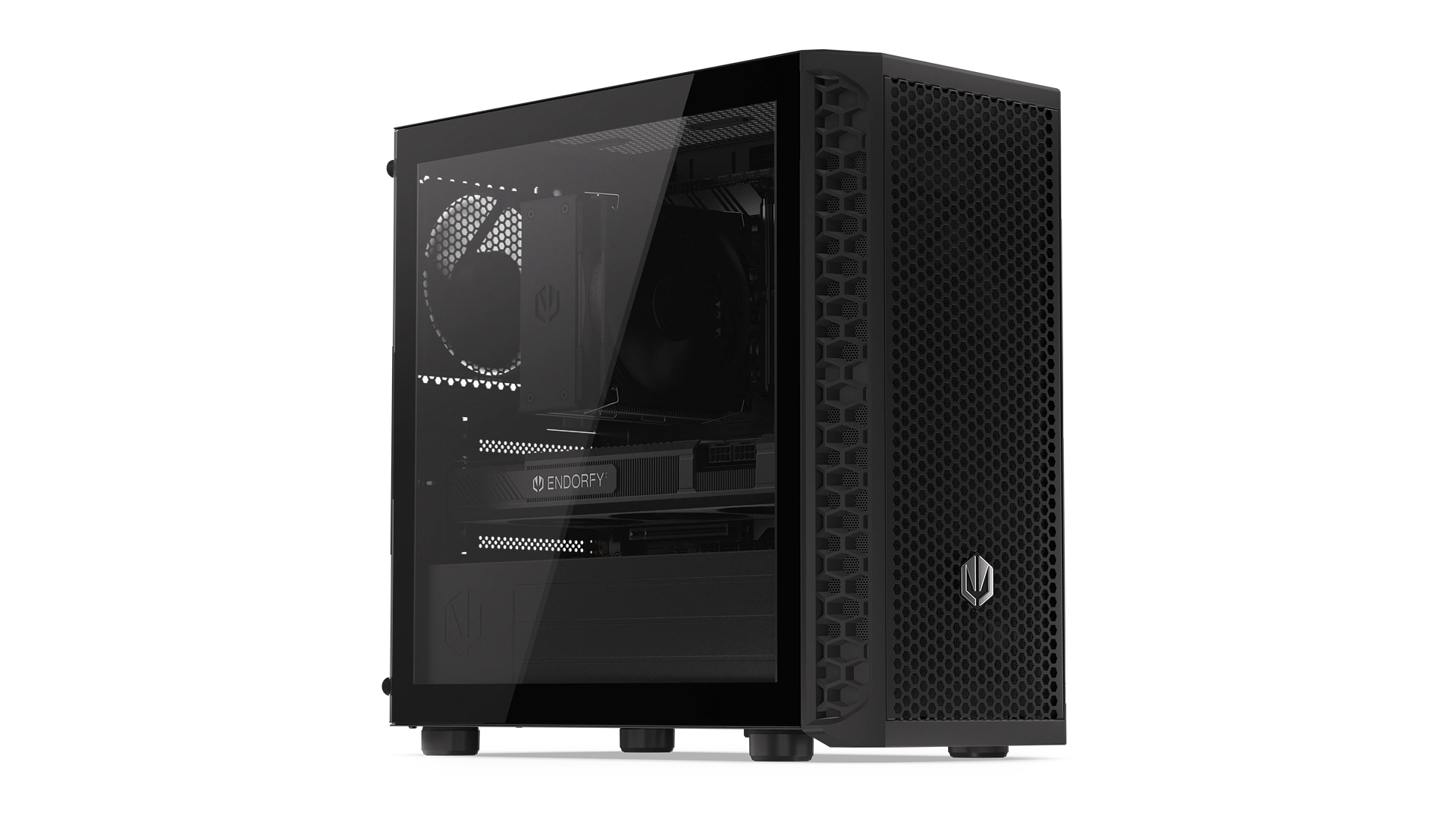

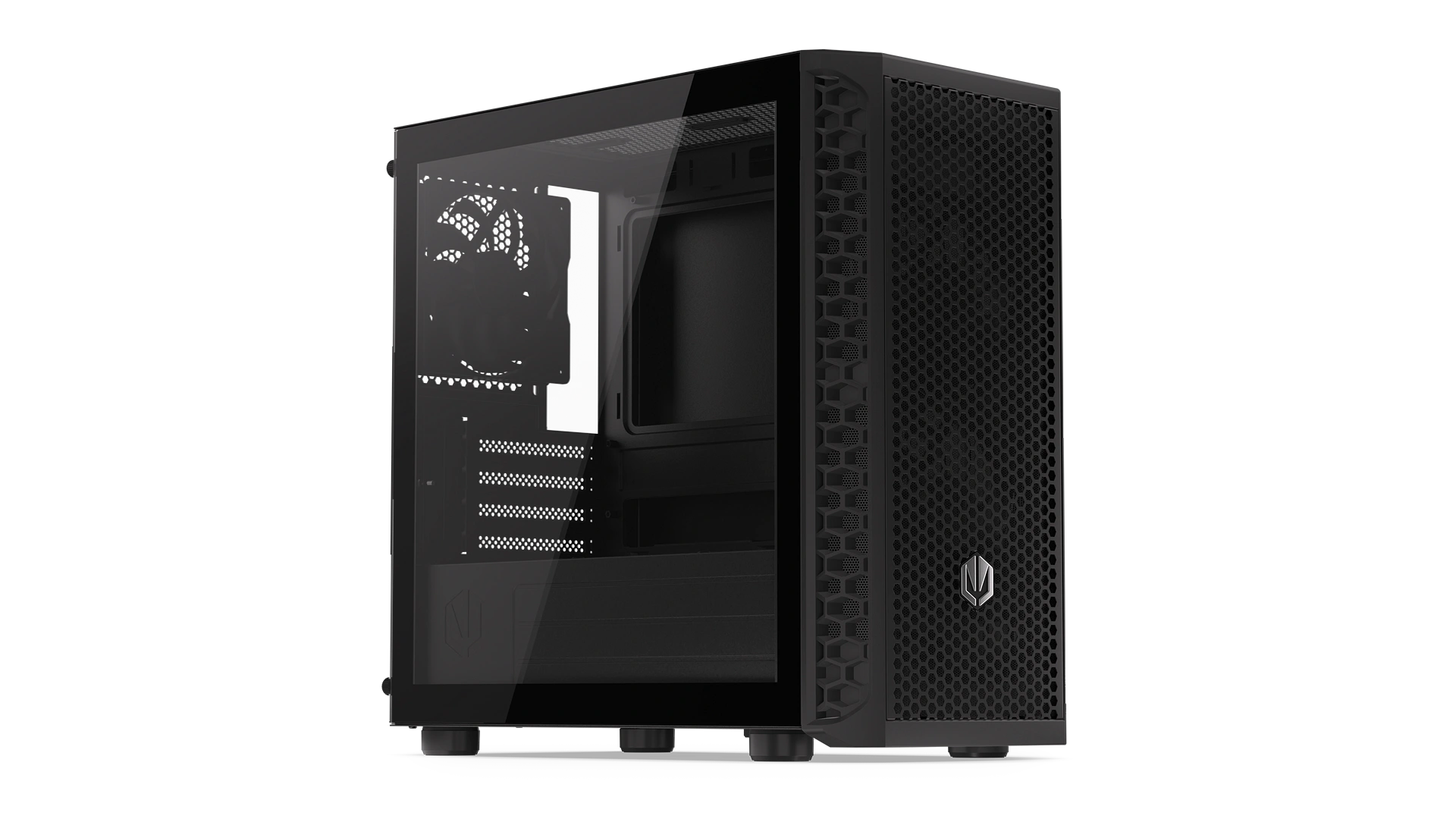

The ENDORFY Signum M30 Air is a compact yet highly versatile microATX case designed for excellent airflow and dust protection. It supports up to seven fans (including three pre-installed, quiet, and powerful Stratus 120 PWM fans), liquid cooling solutions, and up to four drives. The modern I/O panel with high-speed USB-C and tempered glass side panel gives the case a sleek, contemporary look.

View specifications

Product code: EY2A019

Signum M30 Air

The Signum M30 Air is a mini-tower case designed for microATX and smaller motherboards, offering flexibility for your PC build. It supports GPUs up to 345 mm, 240 mm radiators, up to seven 120 mm fans, and CPU air coolers up to 159 mm.

Its airy design, combined with three quiet and powerful Stratus 120 PWM fans, ensures stable temperatures, while magnetic dust filters keep the interior clean. The tempered glass side panel and dedicated cable management space allow you to showcase your components in style. A modern I/O panel featuring a high-speed USB-C port up to 20 Gb/s completes the package.

Efficient cooling and dust protection

The ENDORFY Signum M30 Air microATX case is designed for maximum airflow and effective component cooling. Its mesh front panel, paired with two pre-installed Stratus front fans, ensures a steady stream of air reaches the interior.

Find out more

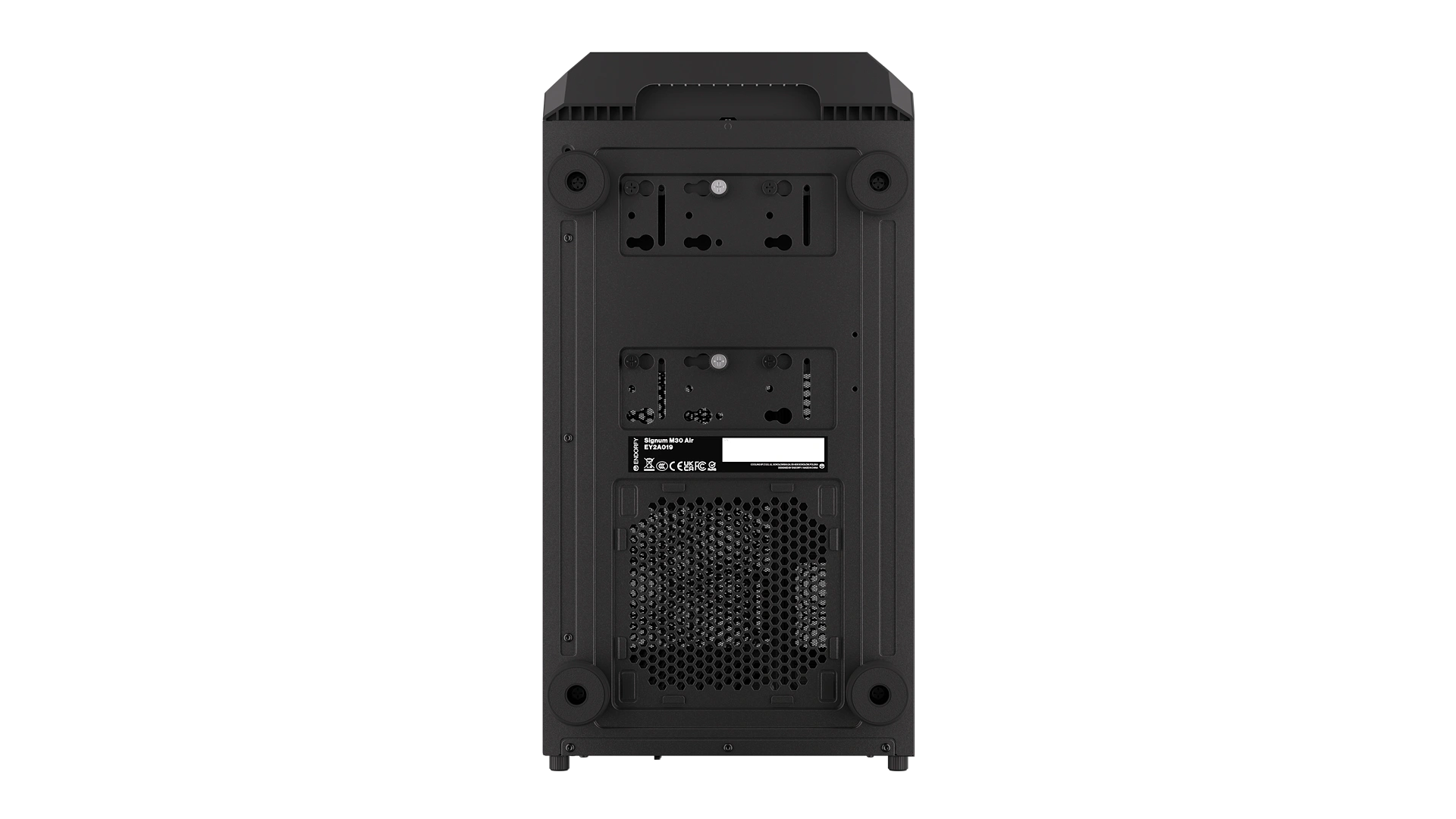

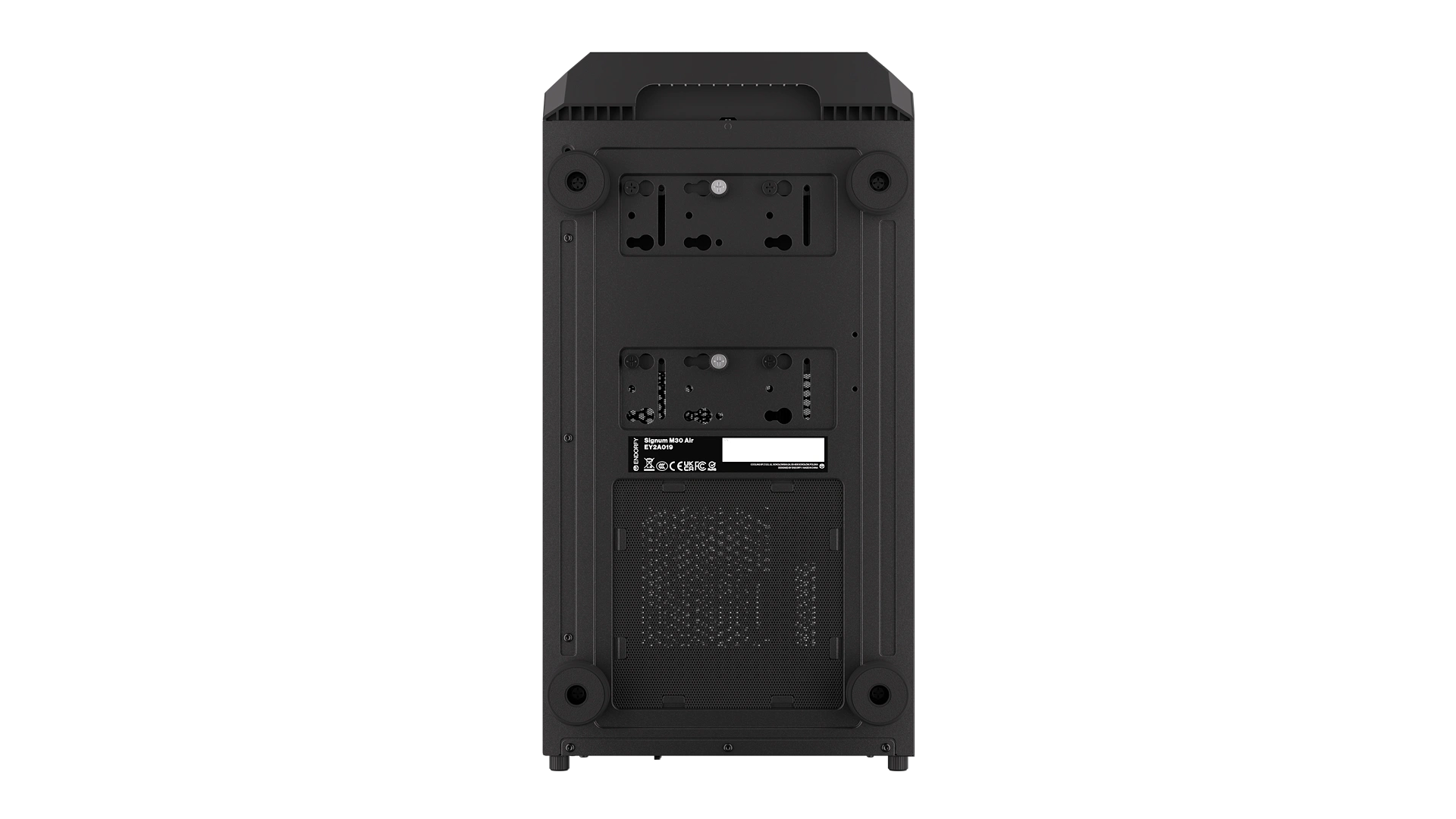

Warm air is efficiently expelled through the rear fan and perforated top panel, keeping system temperatures stable even under heavy load. The Signum M30 supports up to seven 120 mm fans, giving you full flexibility to customize your cooling setup. The front panel, which doubles as a dust filter, along with two additional magnetic filters, can be easily removed without tools, making routine cleaning quick and hassle-free.

Three quiet fans included

The Signum M30 Air comes with three pre-installed Stratus 120 PWM fans connected to a built-in splitter, so you only need to plug a single 4-pin PWM cable into your motherboard. Developed in collaboration with Synergy Cooling, the Stratus fans deliver high performance while maintaining quiet operation. Featuring Fluid Dynamic Bearings (FDB) for long-lasting reliability, the fans offer precise speed control via PWM, including a fan-stop mode for silent operation.

Tempered glass and hidden cable management

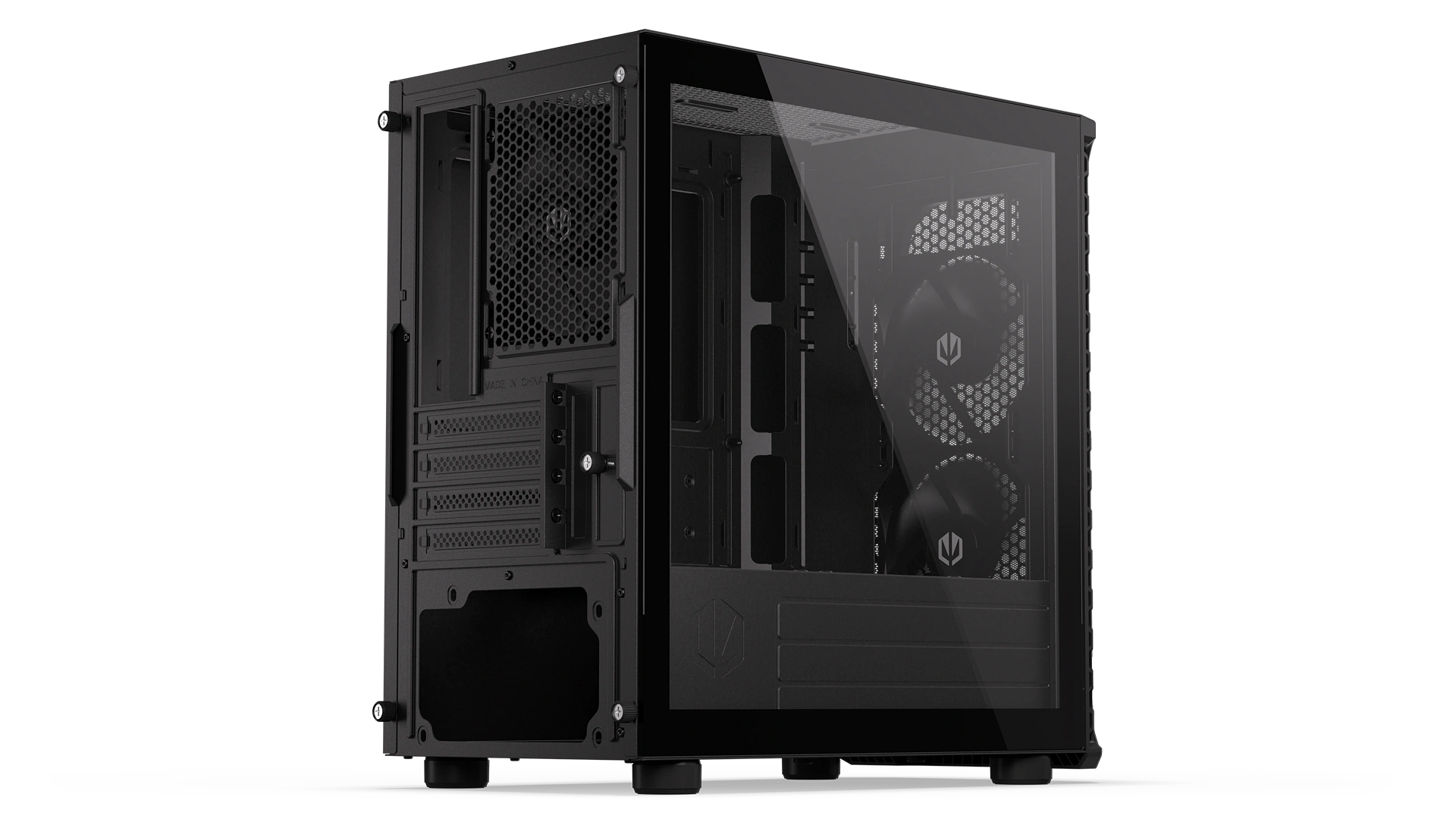

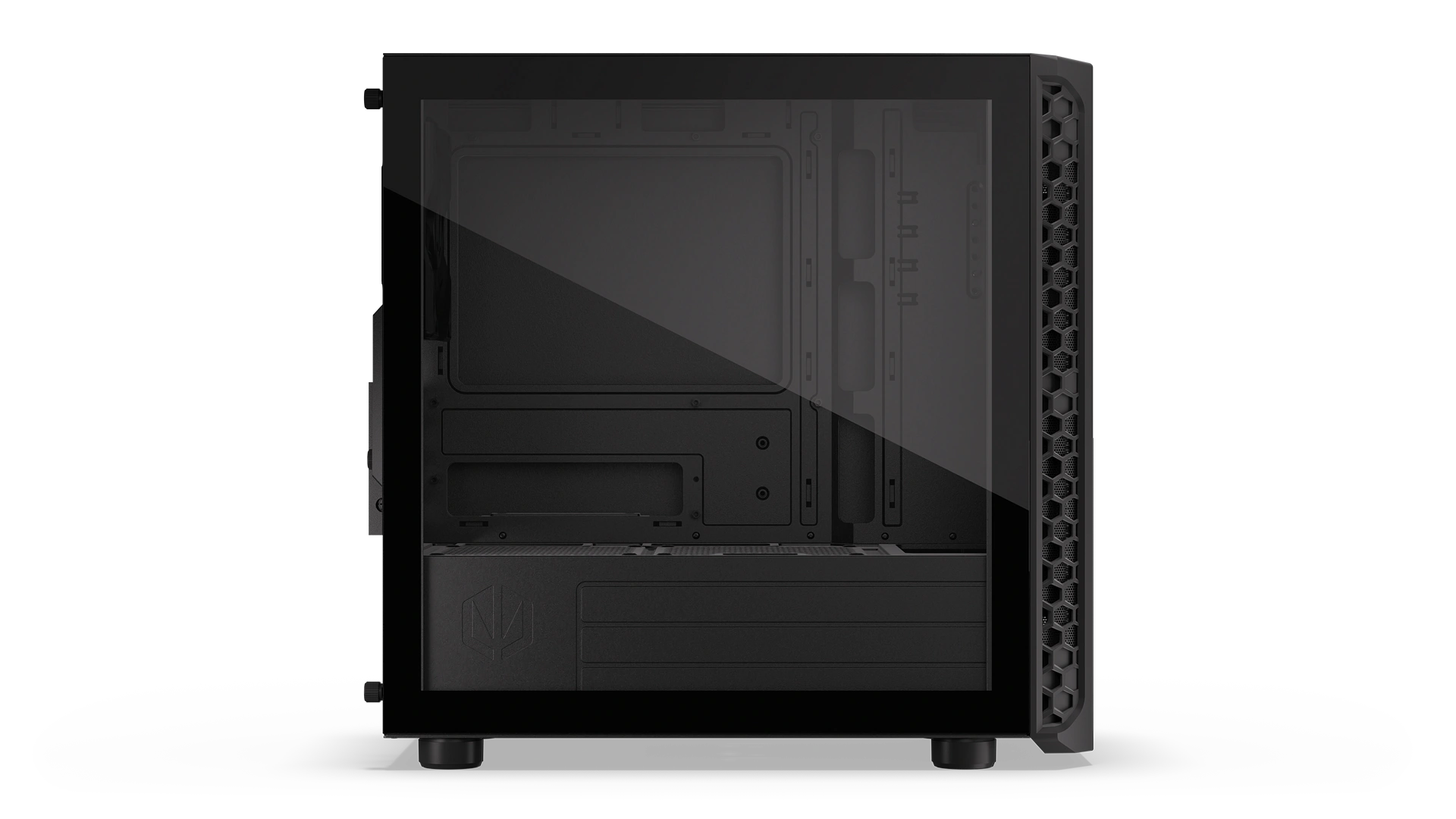

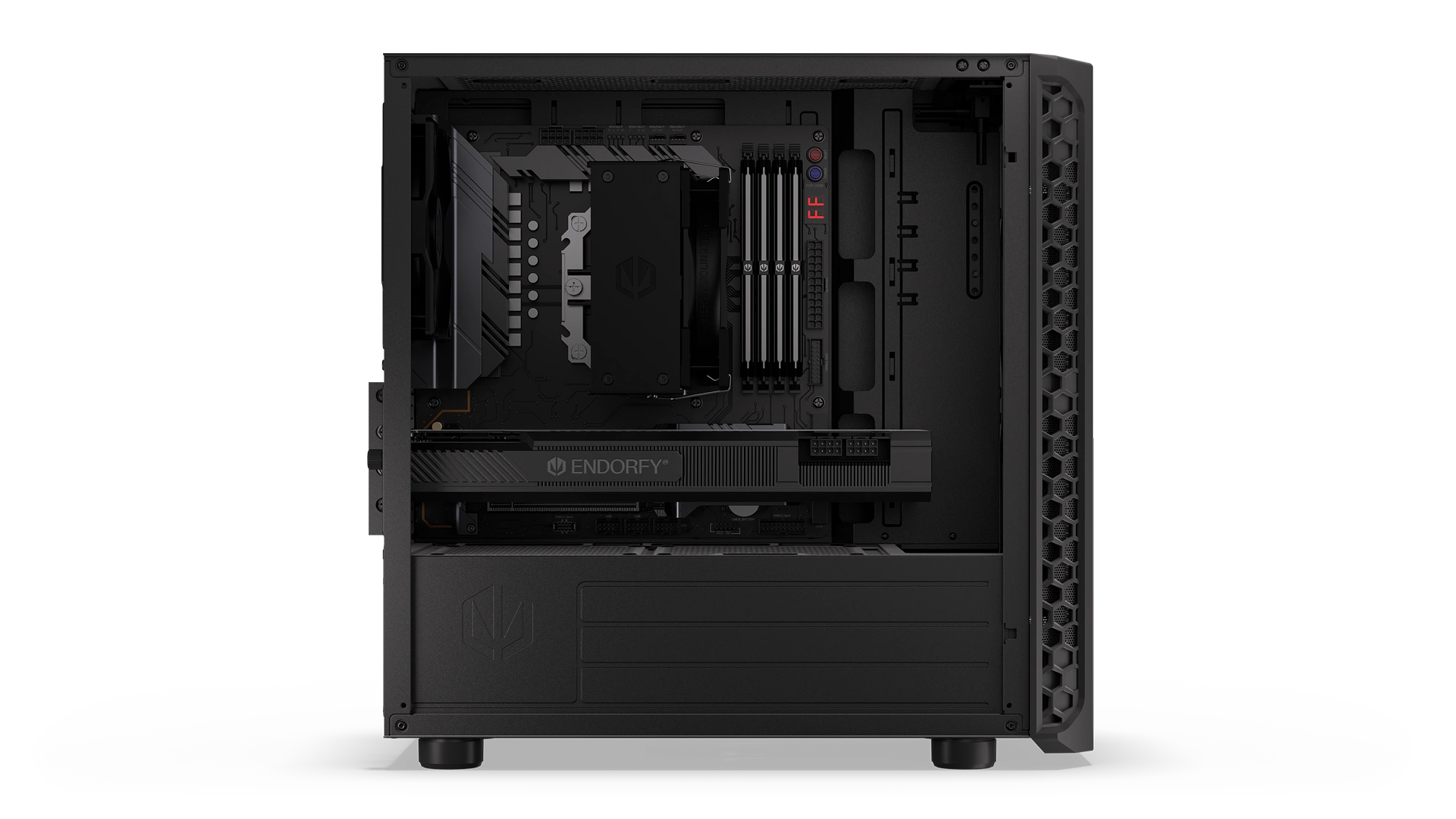

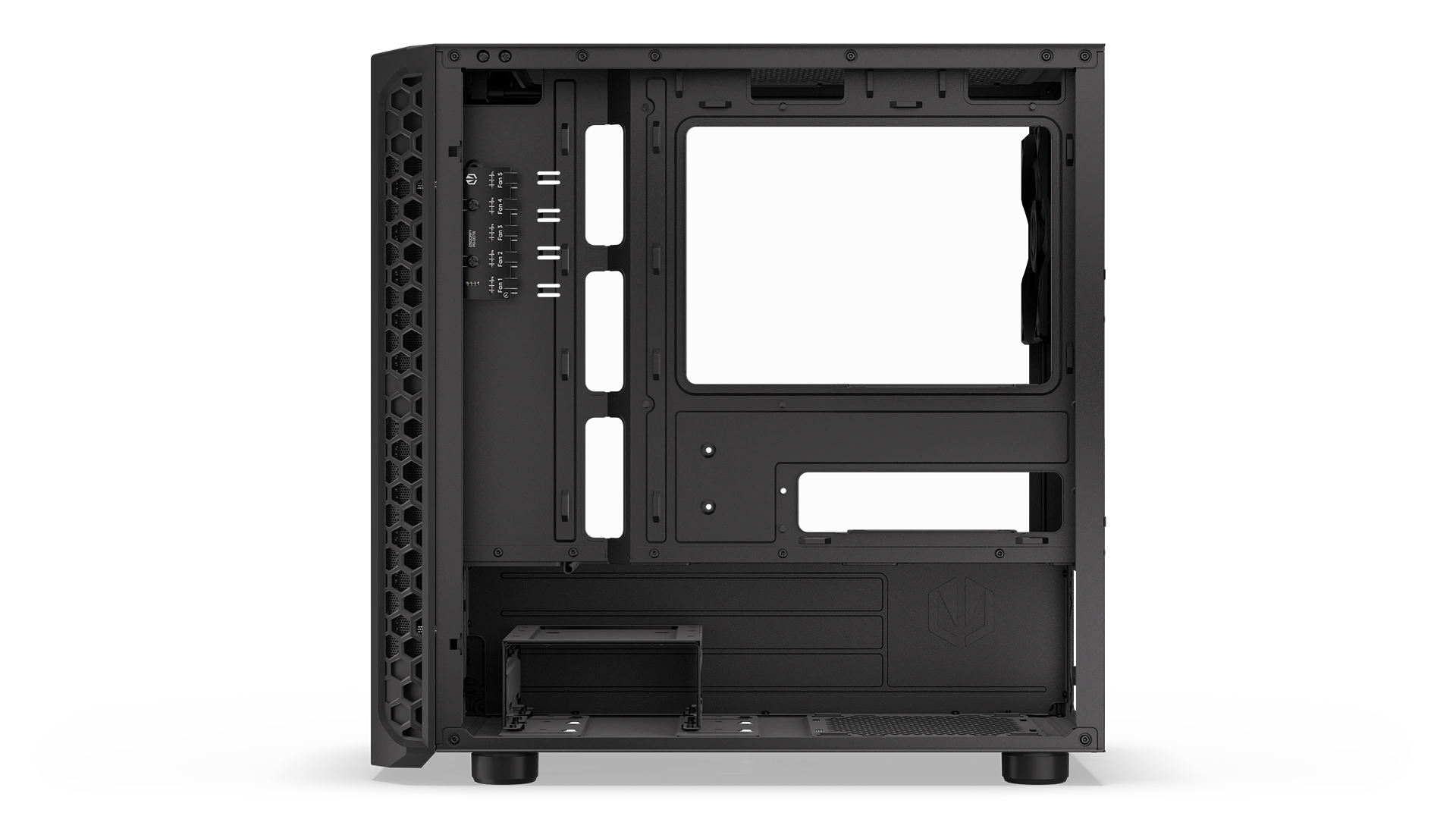

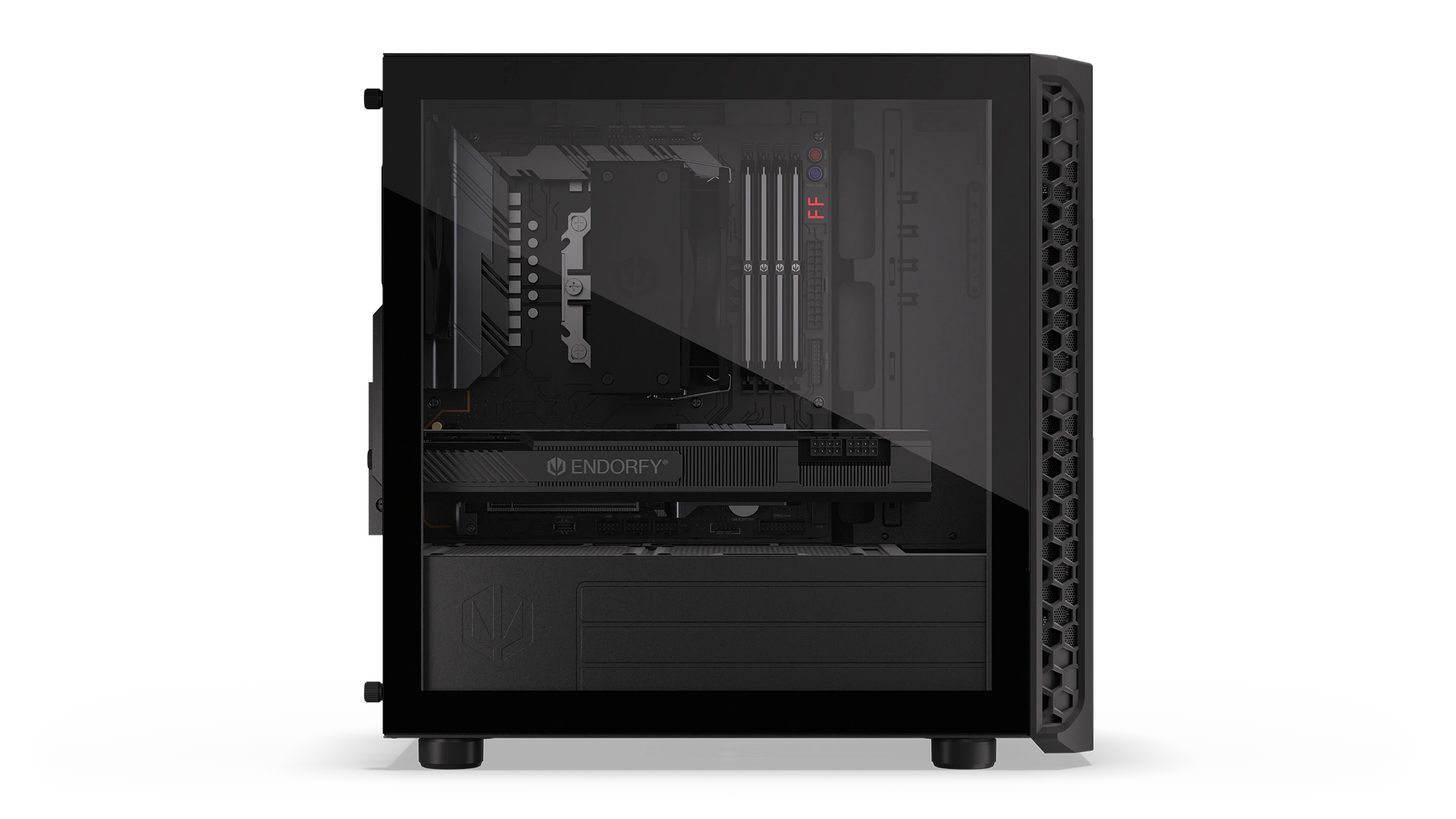

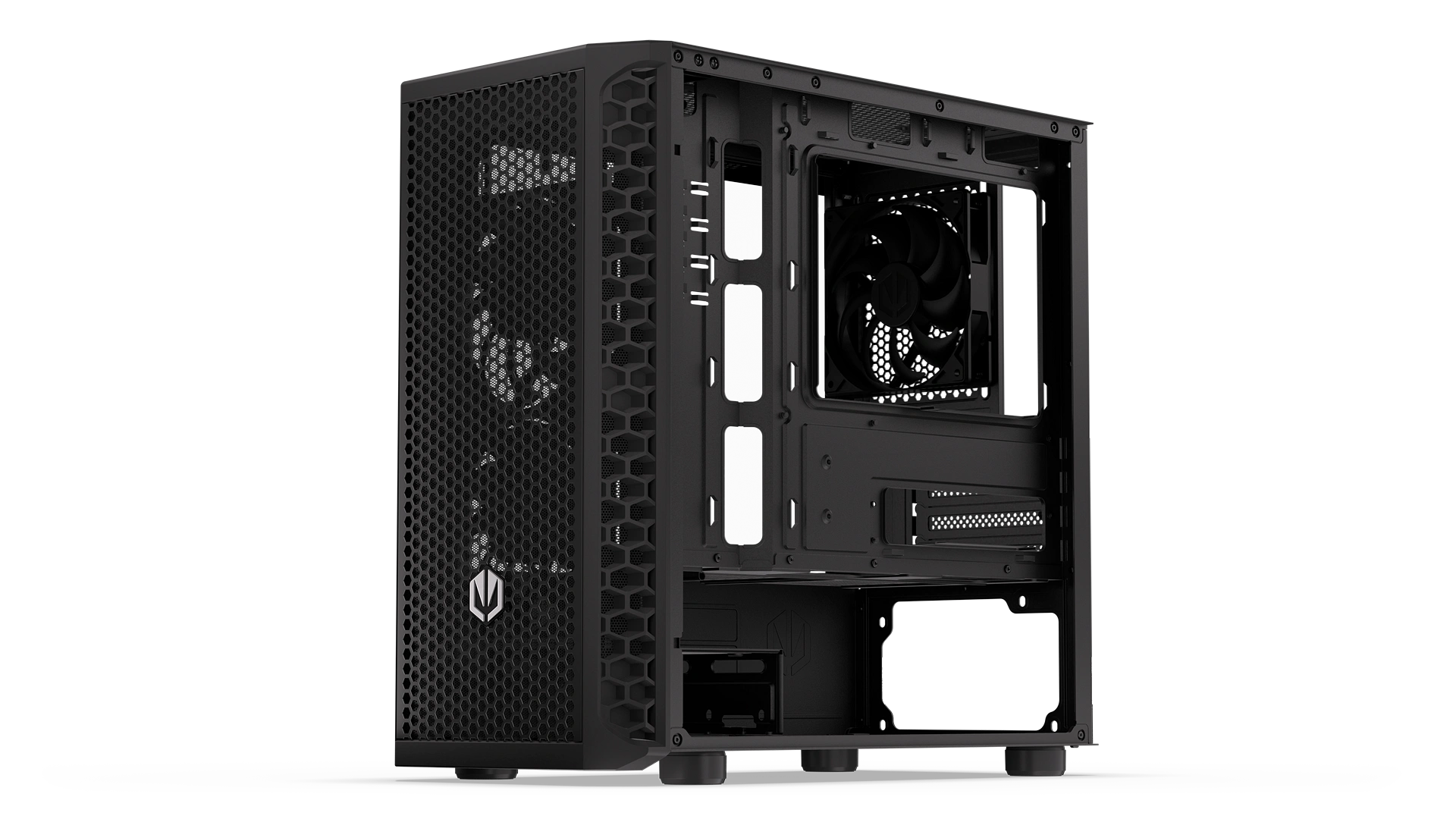

The tempered glass side panel beautifully showcases your components while featuring a thoughtfully designed quick-mount system. Space behind the motherboard tray, along with strategically placed cutouts and zip-tie points, allows for clean and organized cable routing or concealment. This not only enhances the overall appearance of your build but also improves airflow and keeps the interior neat and clutter-free.

Big potential in a compact case

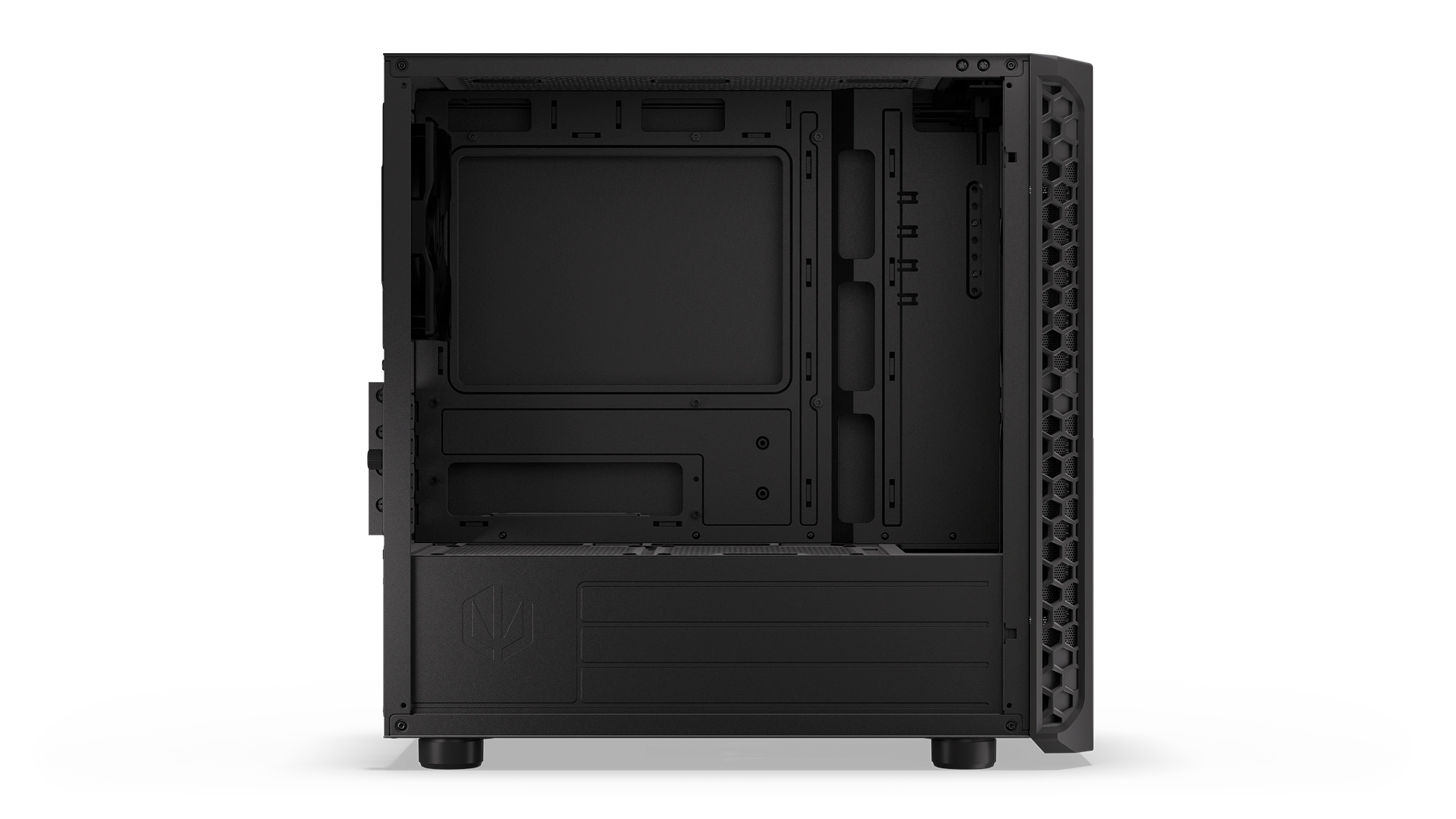

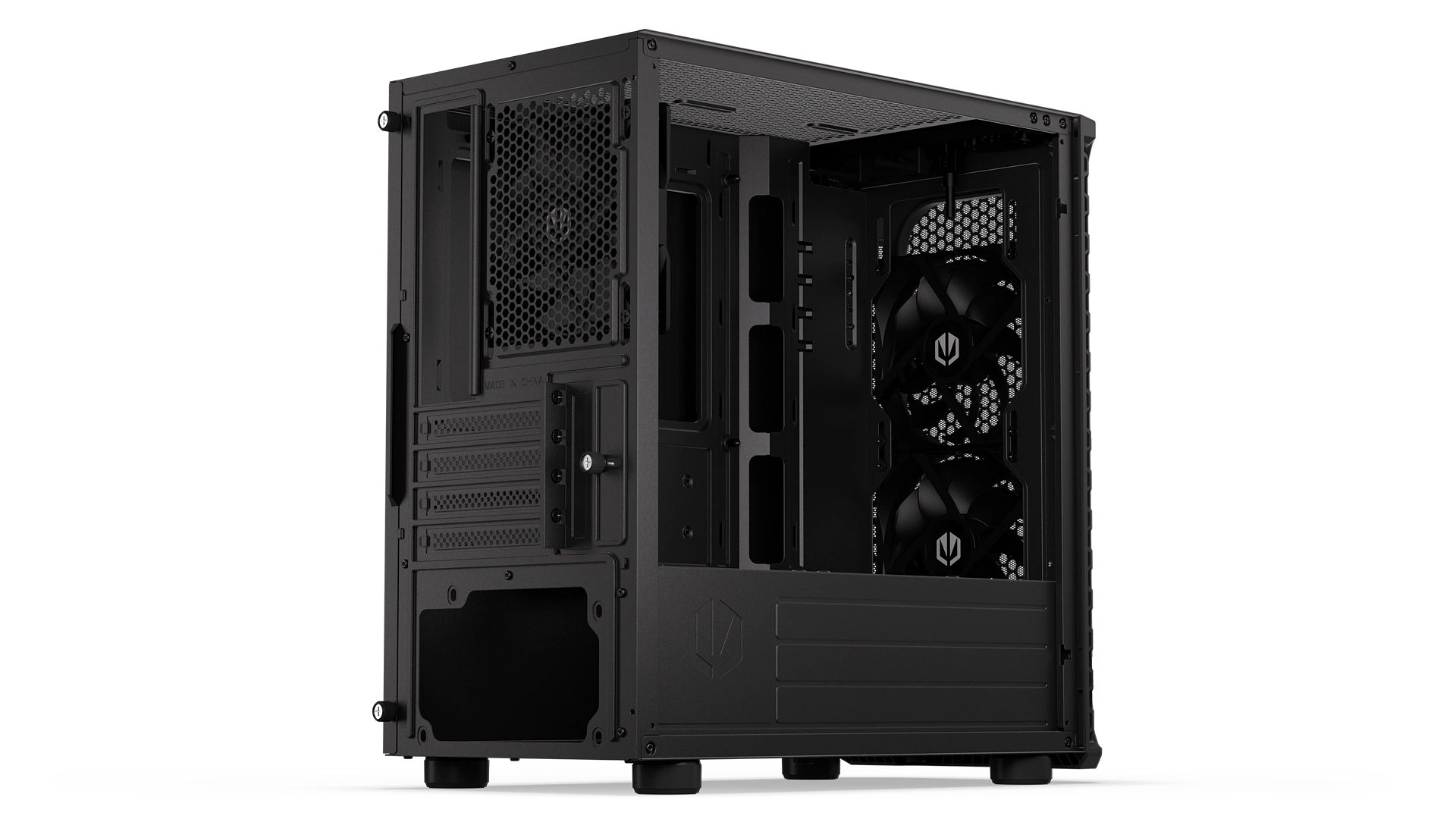

The dual-chamber Signum M30 Air is designed for microATX motherboards but is also compatible with smaller formats. Despite its compact size, it comfortably accommodates modern components, including graphics cards up to 345 mm and power supplies up to 180 mm (or larger when the drive cage is removed), as well as two 2.5" and two 3.5" drives.

Find out more

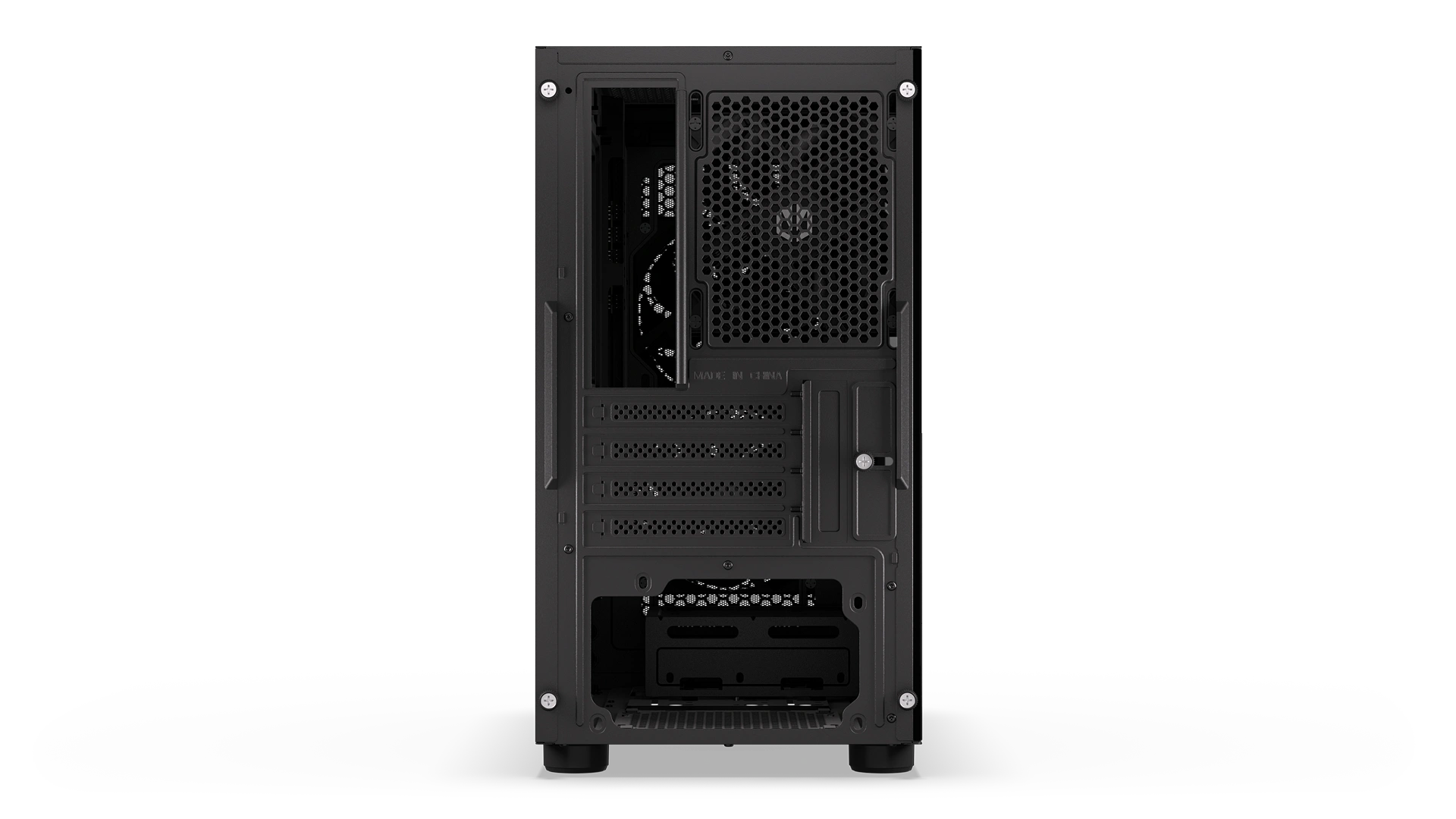

The case supports up to seven 120 mm fans, 240 mm radiators at the front or top, and CPU air coolers up to 159 mm in height. With four expansion slots featuring removable covers, the Signum M30 Air offers impressive flexibility, making it an ideal choice for high-performance builds in a compact form factor.

I/O panel with high-speed USB-C

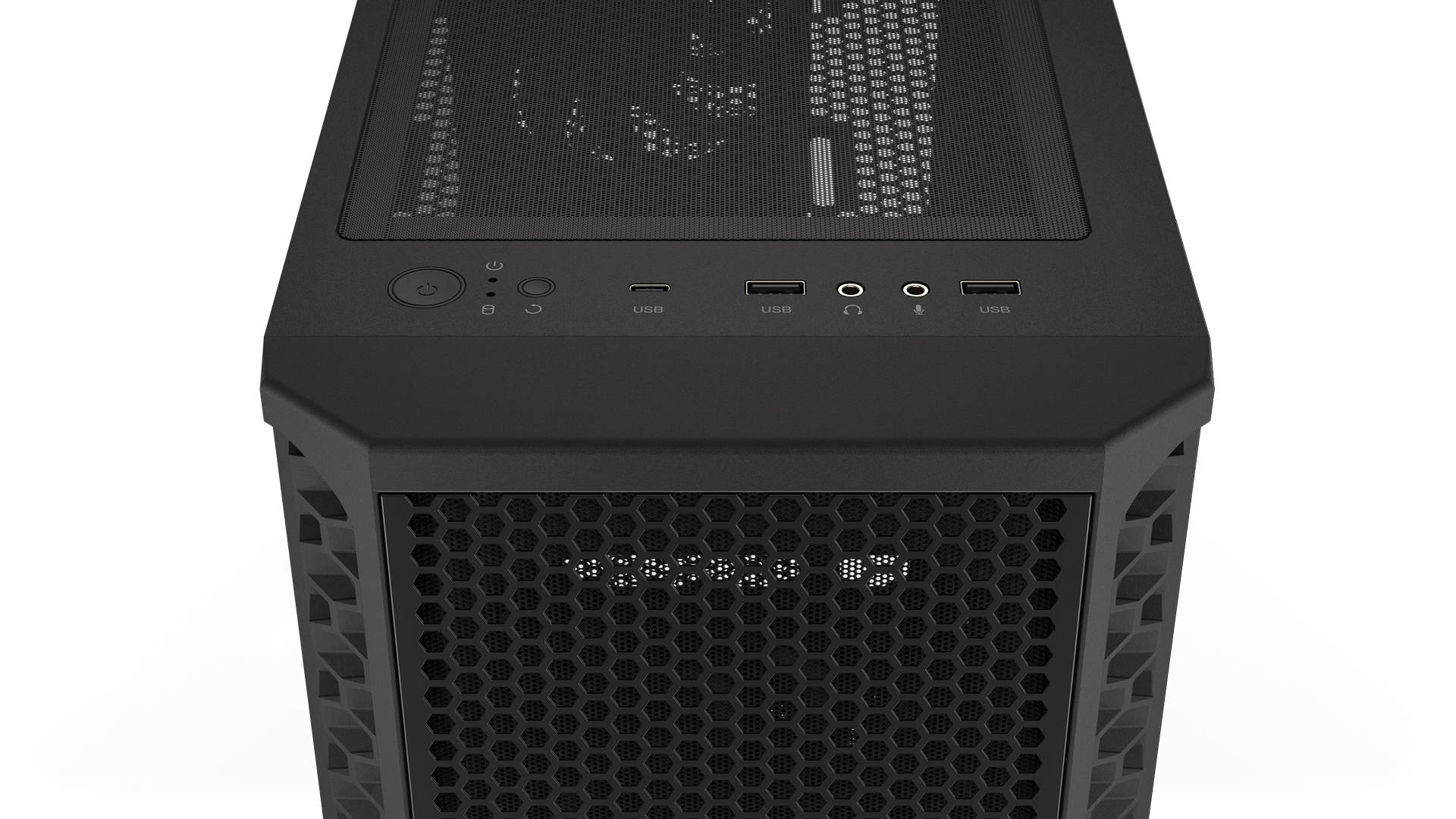

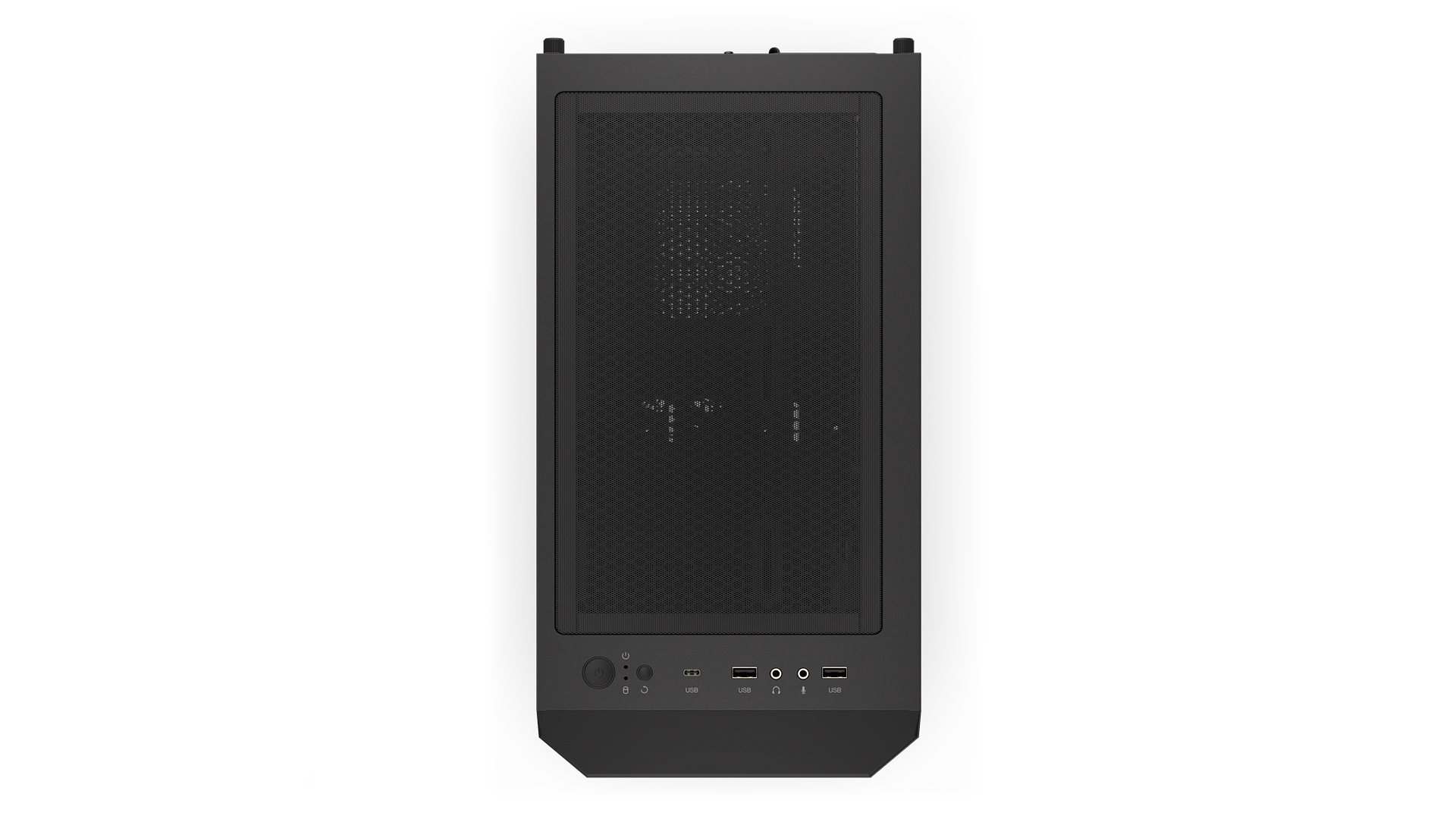

The top panel of this compact PC case features a modern and practical I/O layout, providing easy access to the ports you use most. It includes two USB-A 3.2 Gen 1 ports (up to 5 Gb/s), two 3.5 mm audio jacks for headphones or speakers, and a microphone, as well as a high-speed USB-C 3.2 Gen 2×2 port (up to 20 Gb/s). This makes connecting modern peripherals fast, convenient, and hassle-free — no adapters required.

Maximum dimensions (CPU, GPU, PSU)

Fans compatibility

Radiators compatibility

Storage compatibility

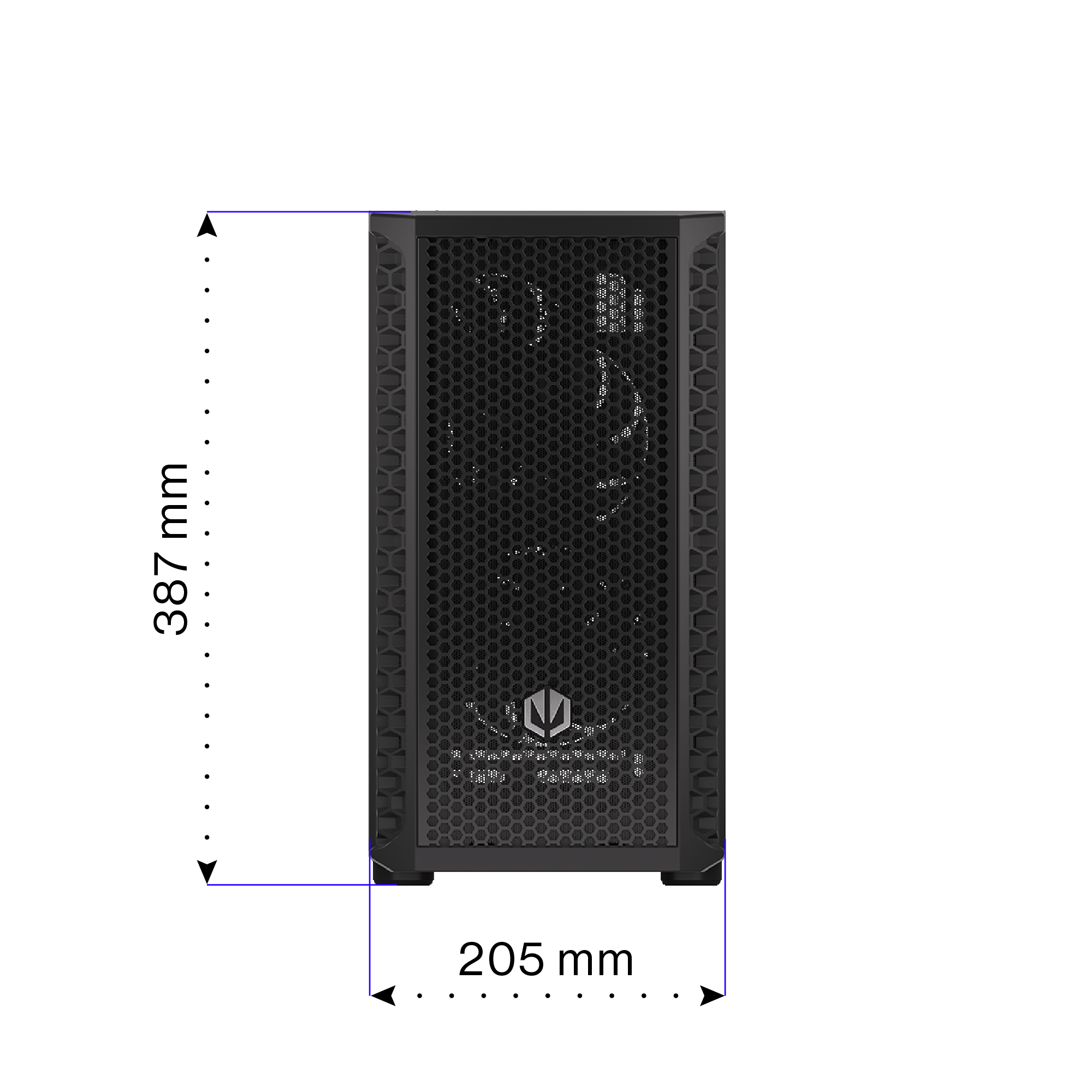

Dimensions

(Click to zoom. Actual dimensions may vary.)

Technical data

Product codeEY2A019
EAN-135903018668888
Warranty [months]36

Product typePC case
Colorblack
Dimensions [mm]387×205×401

Motherboard form factor
- microATXyes
- mini-ITXyes
- FlexATXyes

Graphics card clearance (GPU) [mm]345
CPU cooler clearance [mm]159
Power supply clearance [mm]180
Expansions slots [pcs]4

Number of internal bays
- 2.5"2
- 3.5"2

Fan capacity (maximum) [pcs]7

Included fans [pcs]
- Front2× Stratus 120 PWM (200–1400 rpm)
- Rear1× Stratus 120 PWM (200–1400 rpm)

Radiator capacity [mm]
- Front1× 240
- Top1× 240

Dust filters
- Frontyes (mesh panel)
- Topyes
- Bottomyes

Front I/O
- USB-C1× USB-C 3.2 Gen 2x2 (up to 20 Gbps)
- USB-A2× USB-A 3.2 Gen 1 (up to 5 Gbps)
- Headphones1× minijack 3.5 mm
- Microphone1× minijack 3.5 mm
- Power button1
- Reset button1
