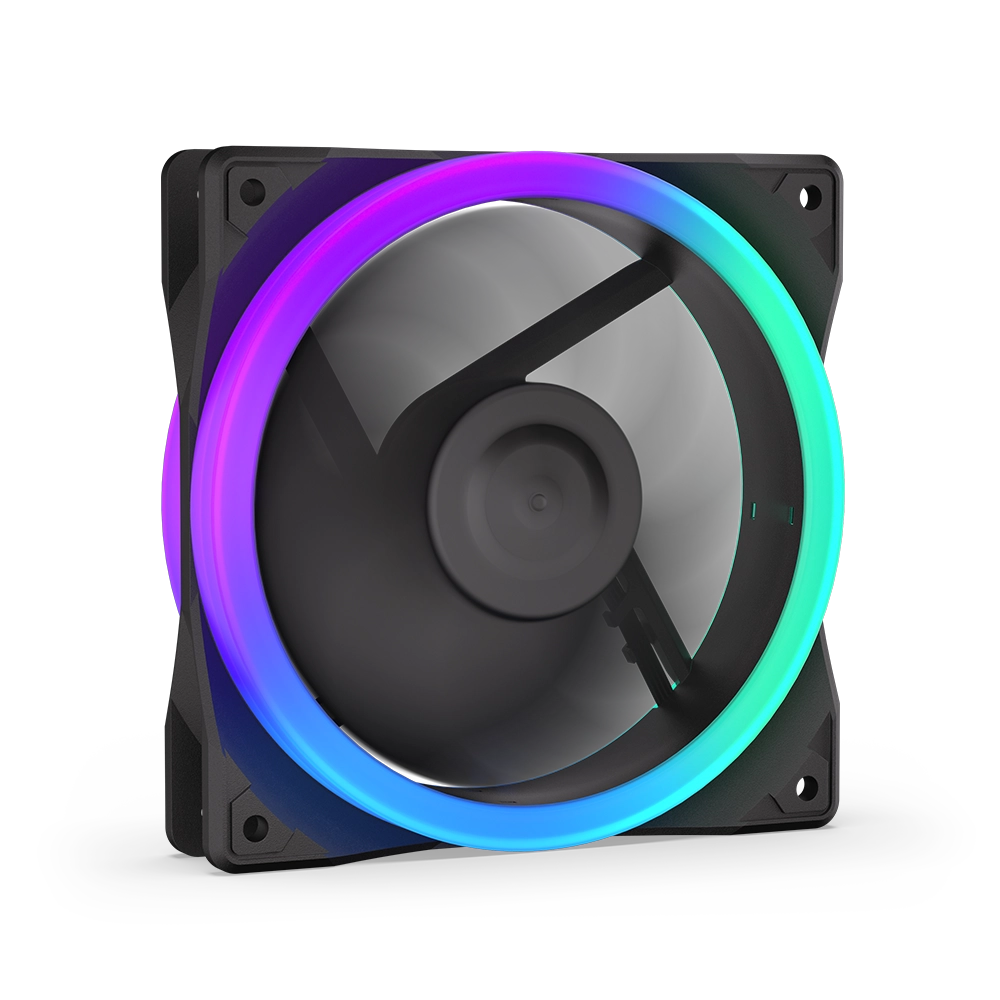

Corona 120

Please select a model

Corona 120 is a stylish 120 mm fan that combines striking looks with quiet and stable operation. Its dual-sided ARGB ring gives your setup a distinctive character, while the wide speed range of 200–1600 RPM with precise PWM control allows you to adjust performance to current needs while maintaining excellent operating culture – especially in semi-passive mode.

View specifications

Product code: EY4A013

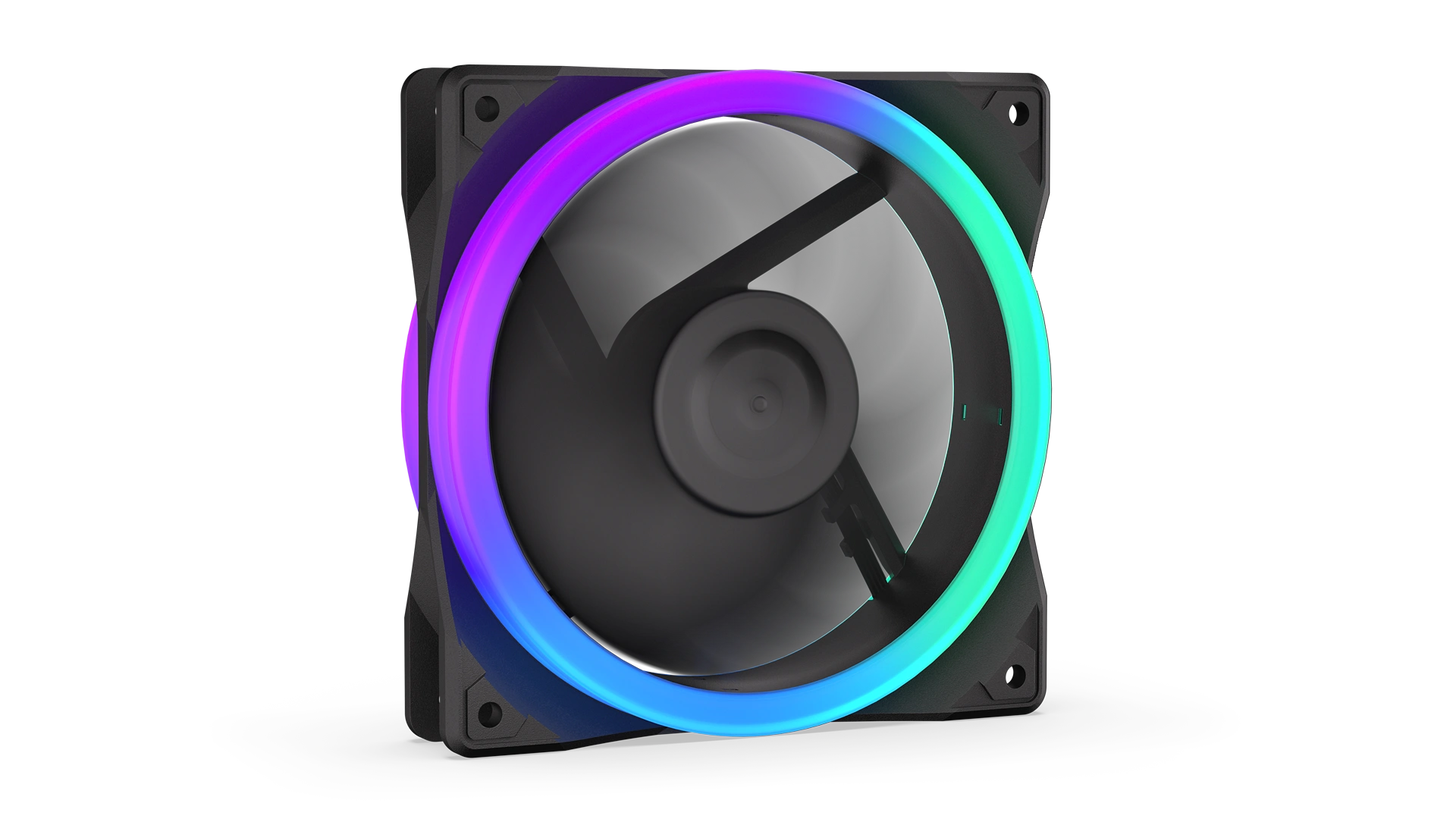

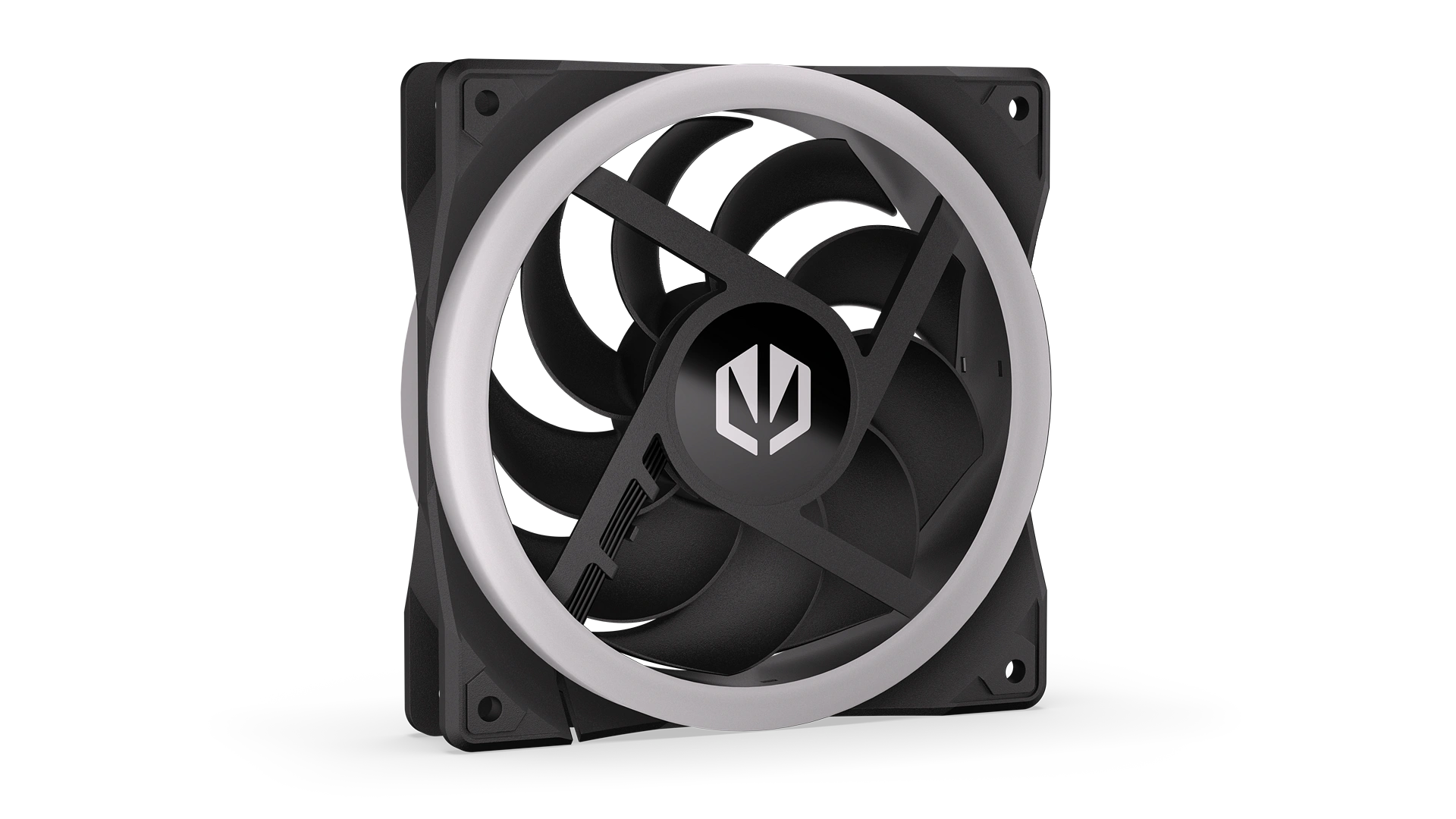

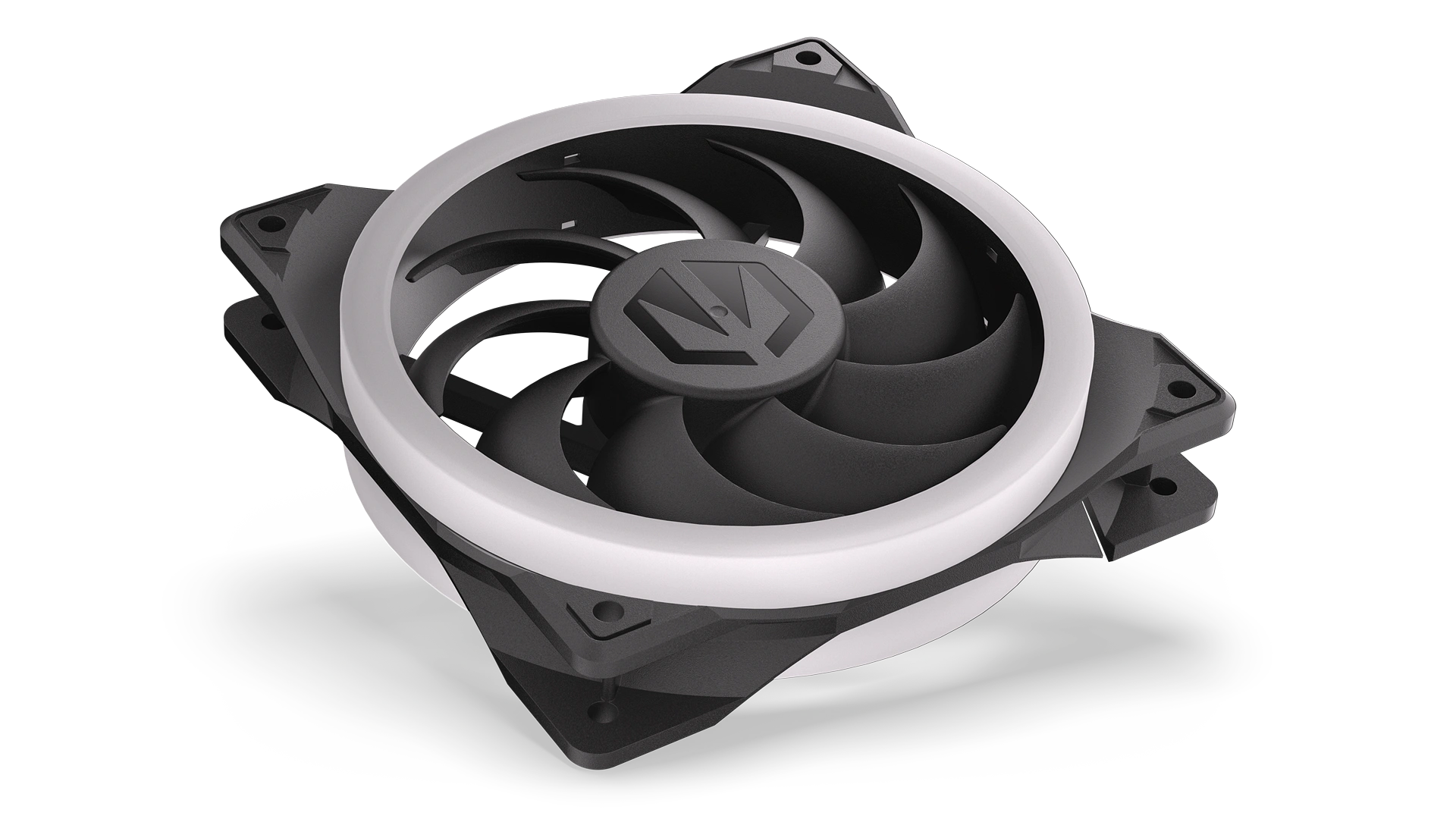

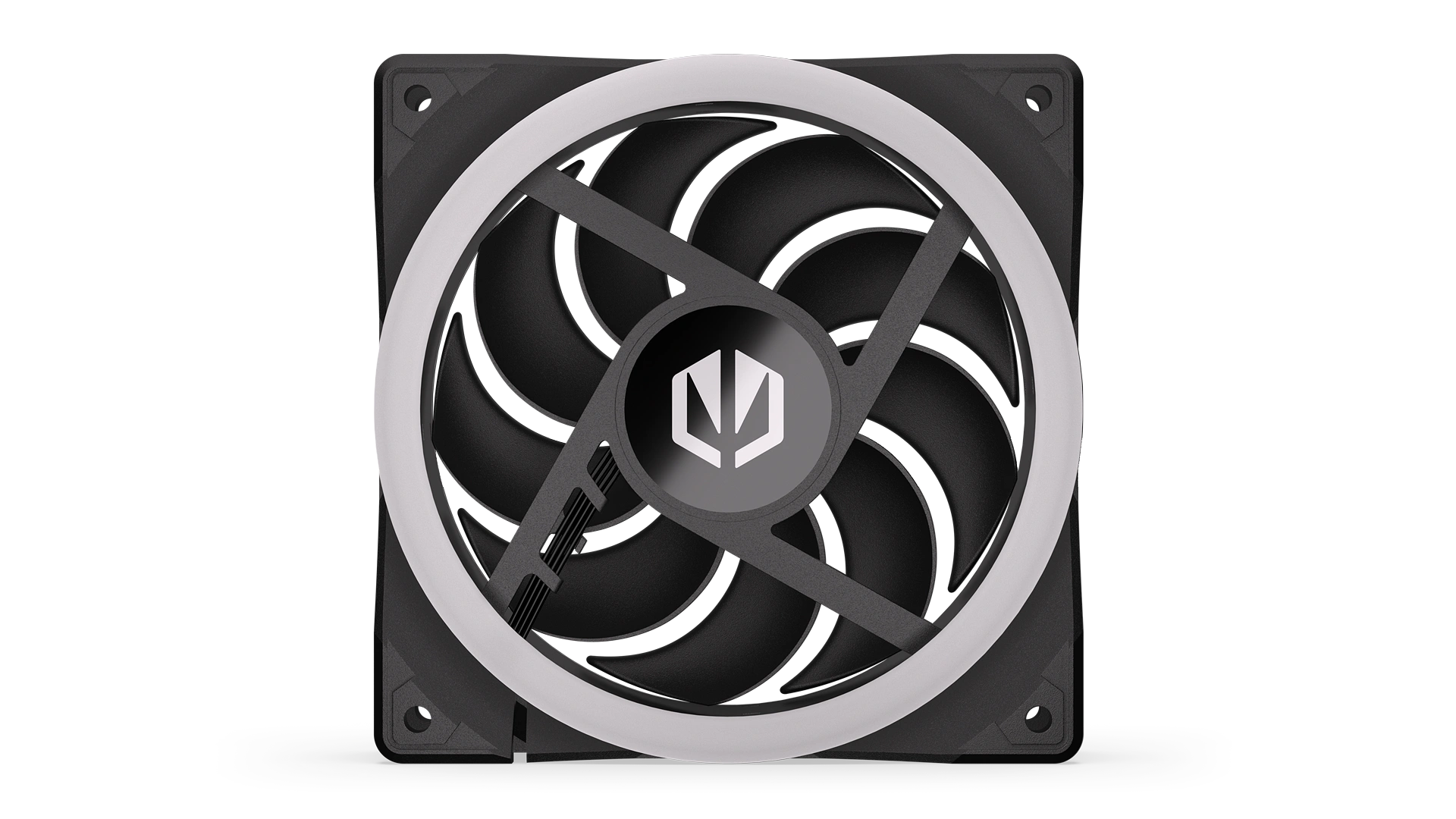

Corona 120

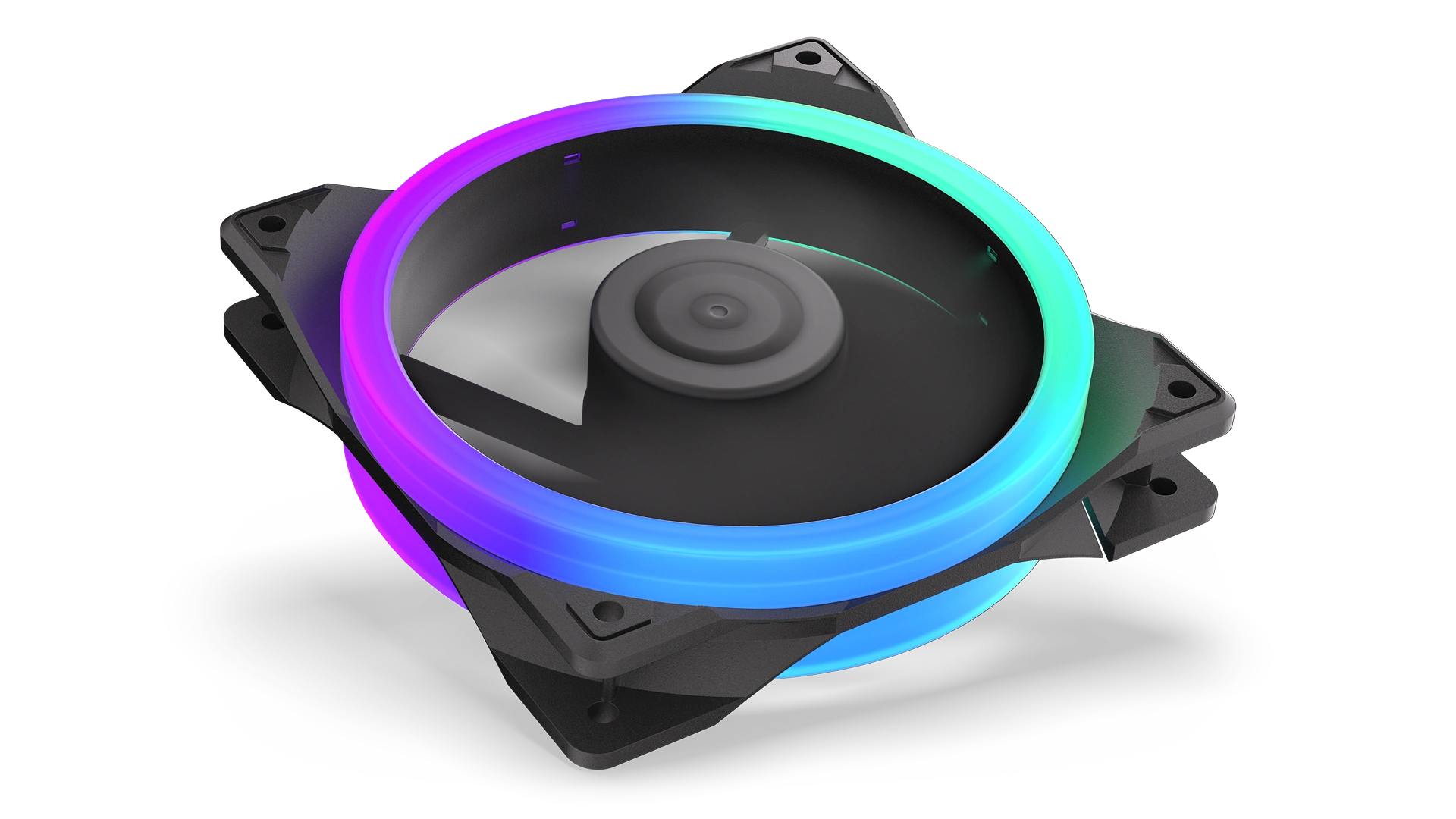

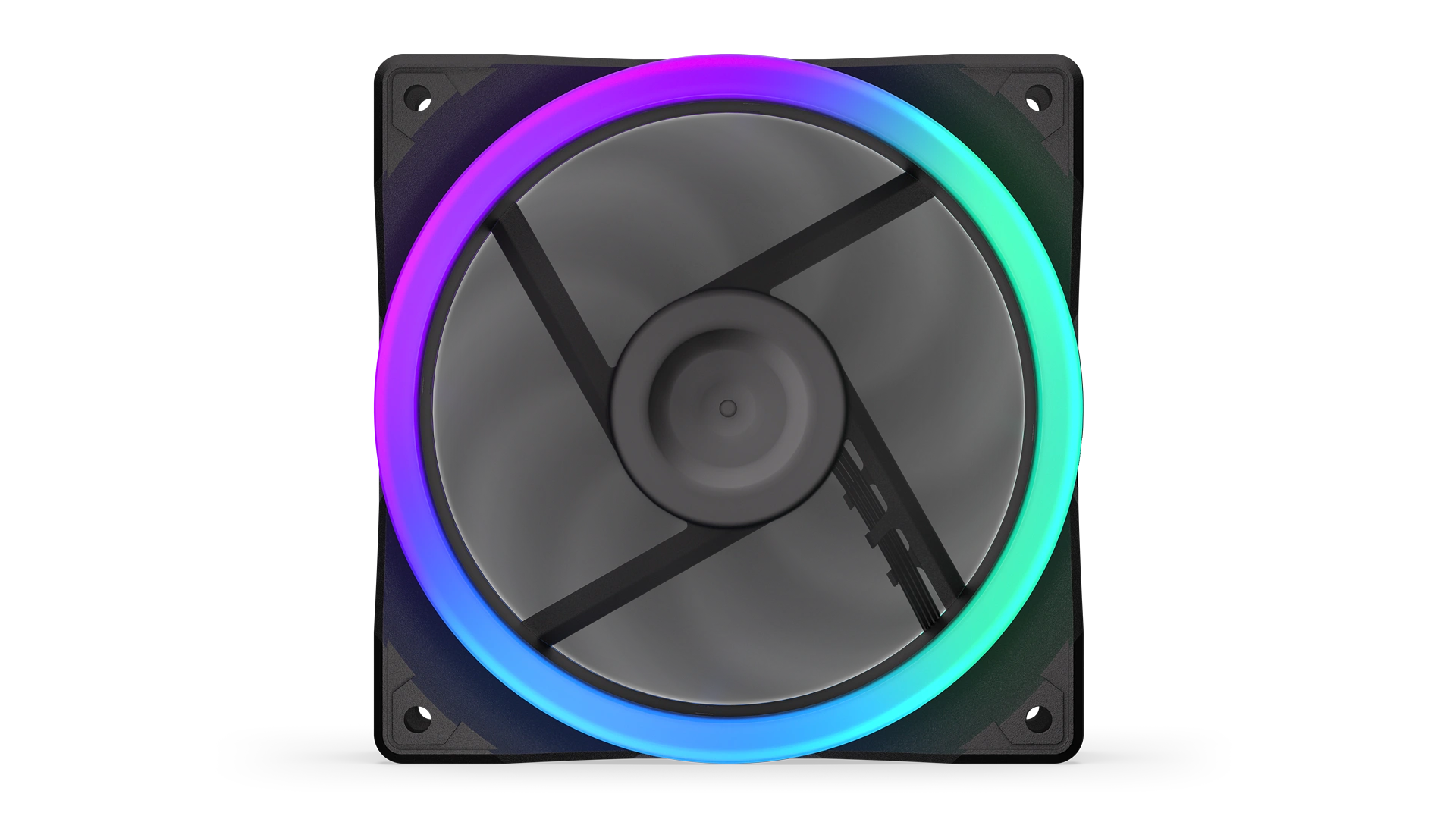

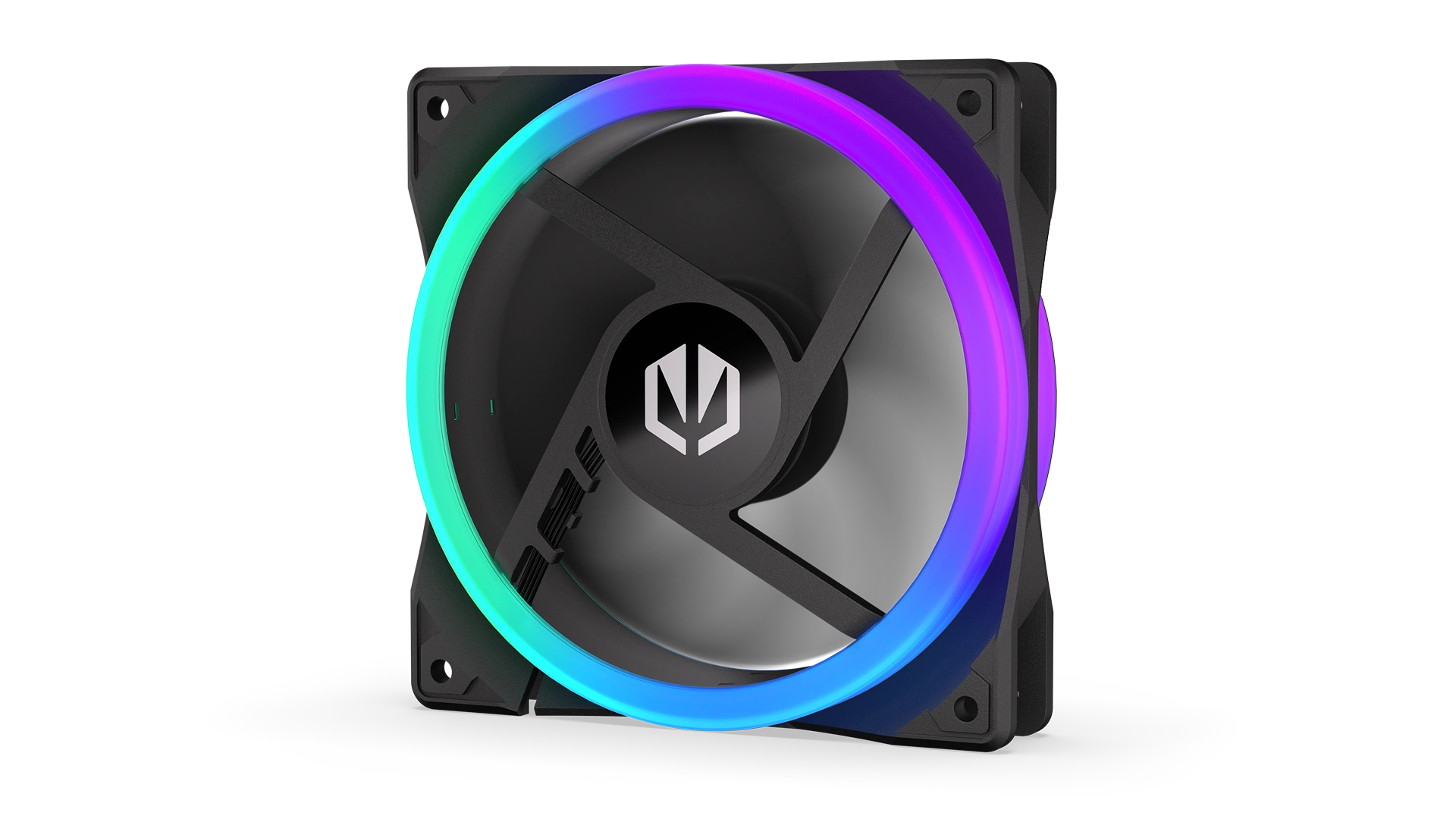

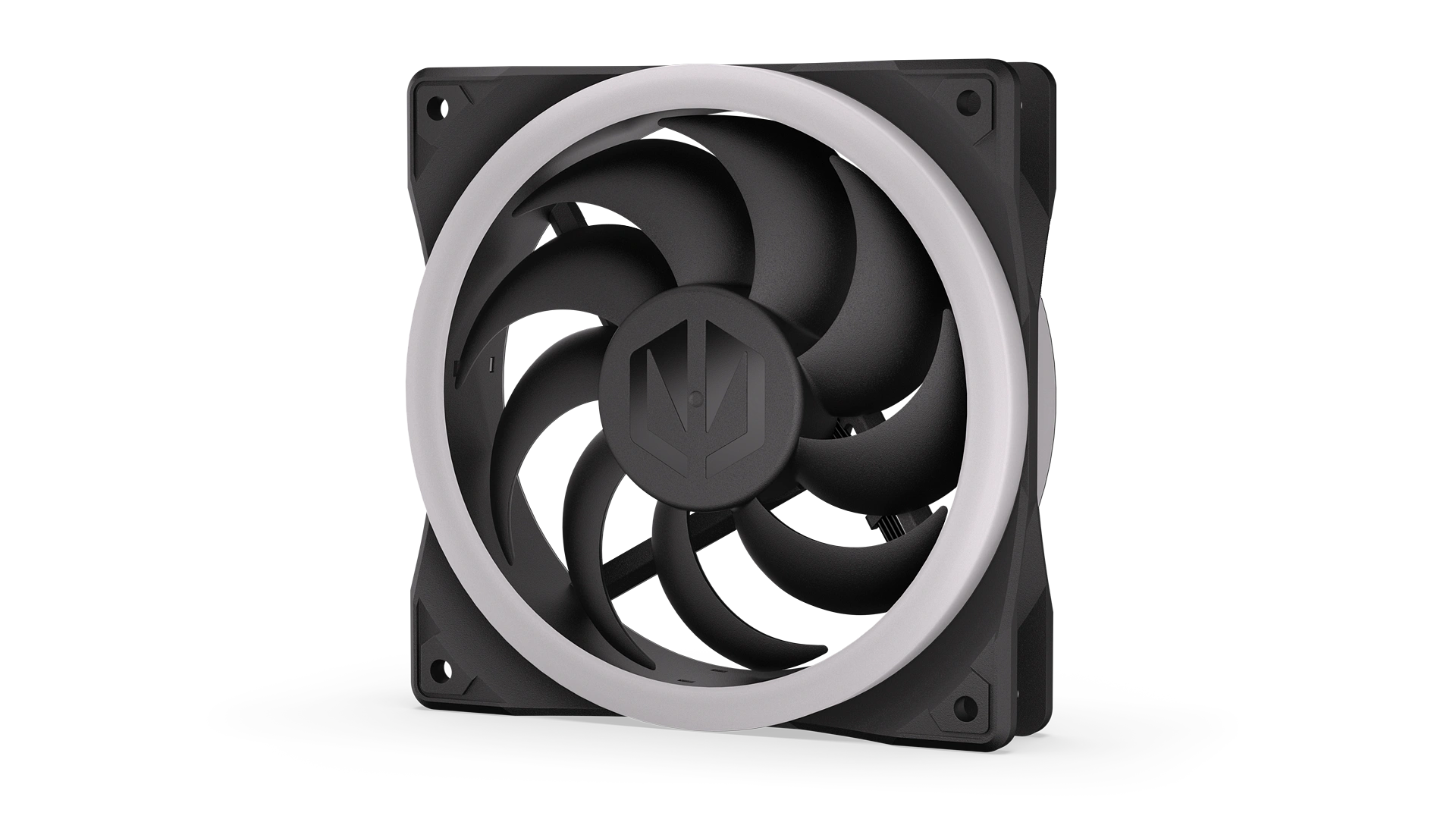

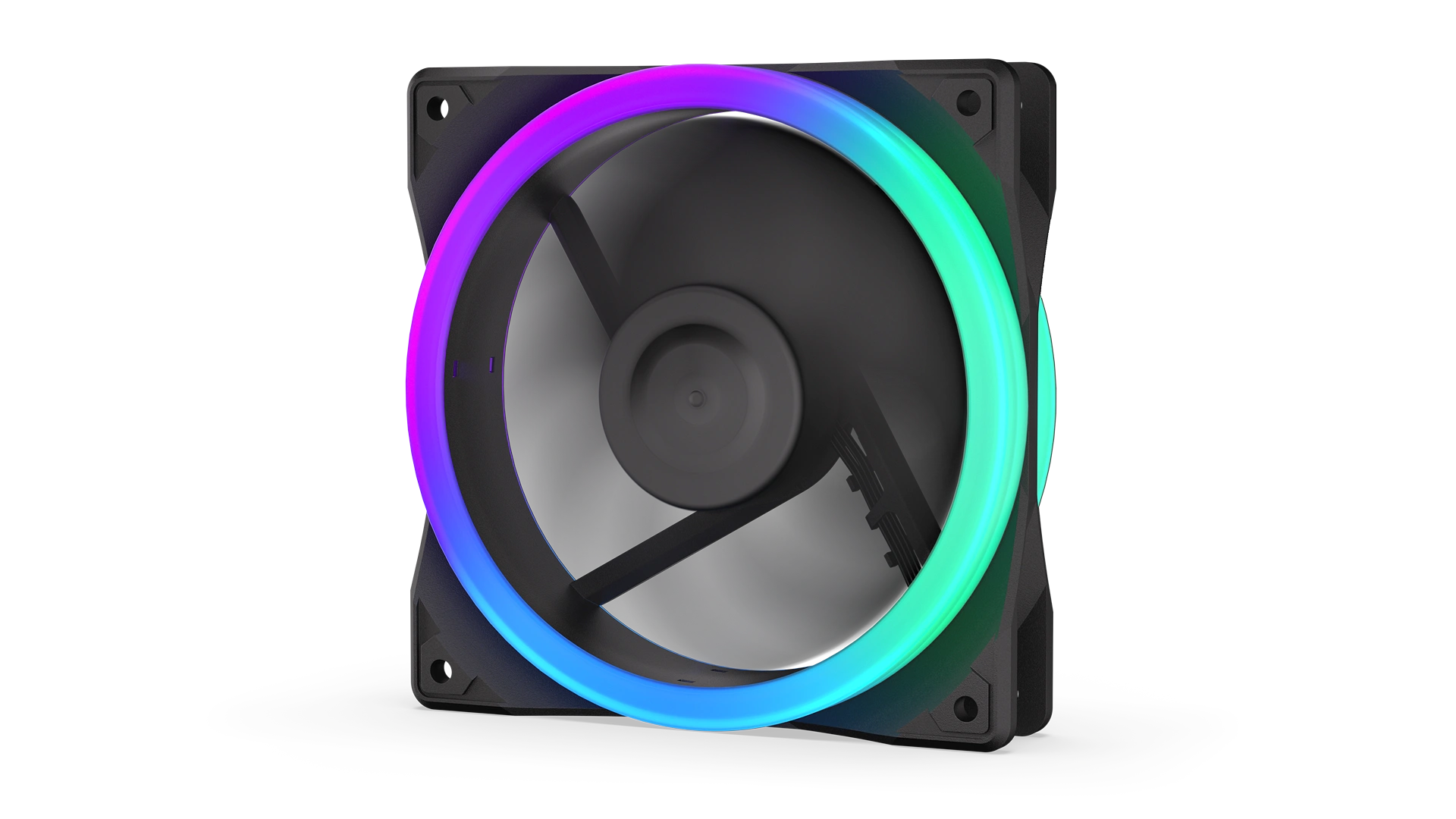

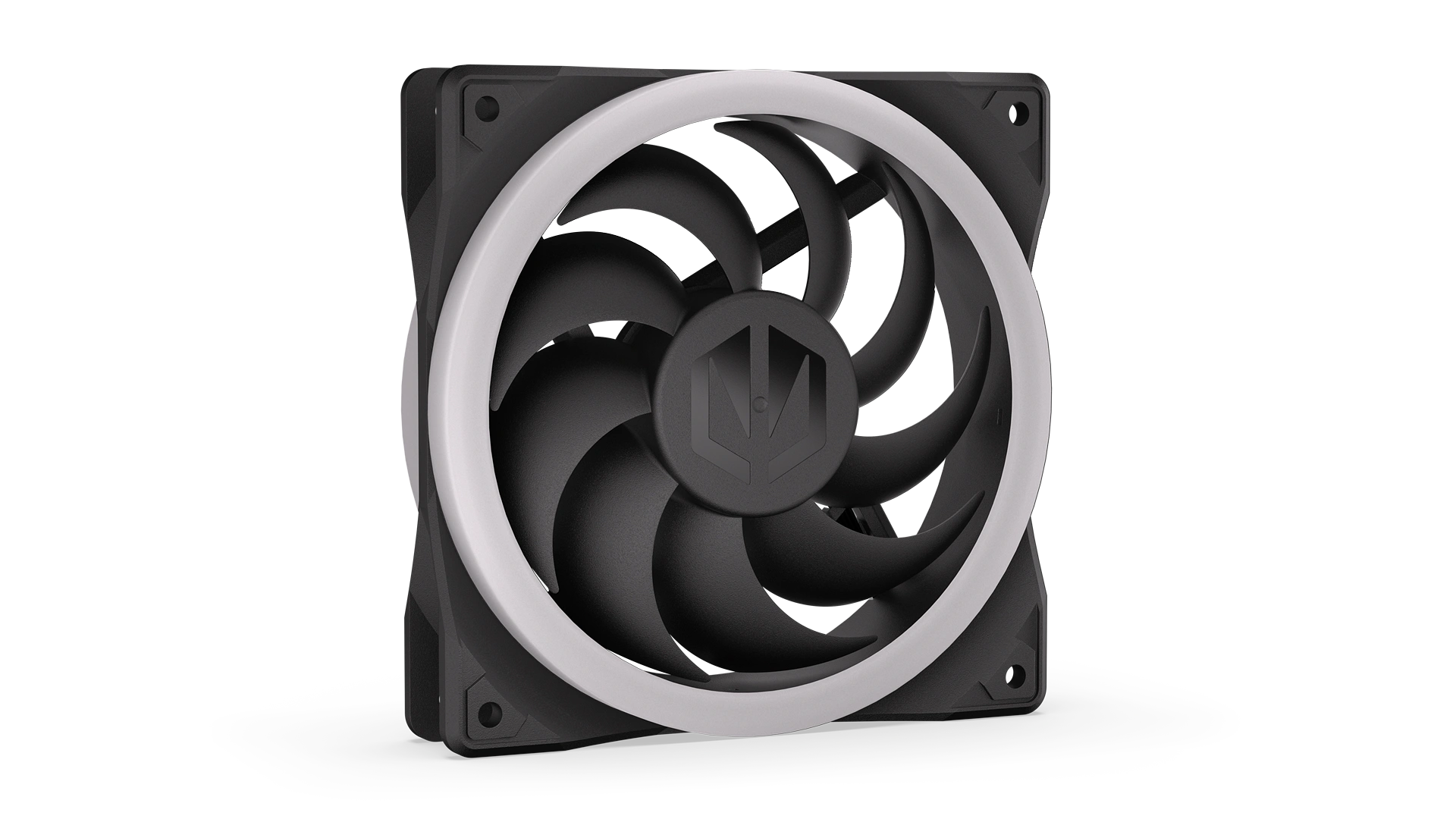

The 120 mm fan featuring a dual-ring ARGB design with 16 individually addressable LEDs, delivers vivid illumination from every angle. With precise PWM control, you can tailor performance to your system’s needs – from near-silent operation at 200 RPM to full power at 1600 RPM. The optimized blade design directs airflow exactly where it’s needed.

The advanced FDB bearing in the ENDORFY Corona 120 minimizes noise and ensures long-lasting durability. A fan stop feature allows the fan to come to a complete halt under low load, enabling an optional semi-passive cooling mode. Backed by a 5-year warranty, it’s a reliable choice for demanding users.

Dimensions

(Click to zoom. Actual dimensions may vary.)

Technical data

  • Product codeEY4A013
  • EAN-135903018666068
  • Warranty [months]60
  • Product typePC fan
  • Colorblack
  • Dimensions [mm]120×120×25
  • ARGB backlightyes, dual-sided
  • BearingFDB
  • Speed [RPM]200 (±100) – 1600 (±10%)
  • Control (speed)PWM
  • Connector (speed)4-pin (female)
  • Voltage (fan) [V]12
  • Current (fan, peak) [A]0.23
  • Control (LED)ARGB
  • Connector (LED)3-pin (female)
  • Voltage (LED) [V]5
  • Current (LED, peak) [A]0.30
  • MTBF [h]80 000

Set includes

  • 1× ENDORFY Corona 120 fan
  • 1× Set of mounting screws
  • 1× User and safety manual
