Arx 500 Air

Please select a model

If you asked us to name one of our best projects, we’d say Arx 500 Air – we took all the best solutions we know and put them together. As a result, we’ve made a large (but slightly shorter than Arx 700 series) PC case for you your components that's as breathable as a room where someone opened all the windows wide.

And replaced one of the walls (and the ceiling) with dust filters.

View specifications

Product code: EY2A010

Arx 500 Air

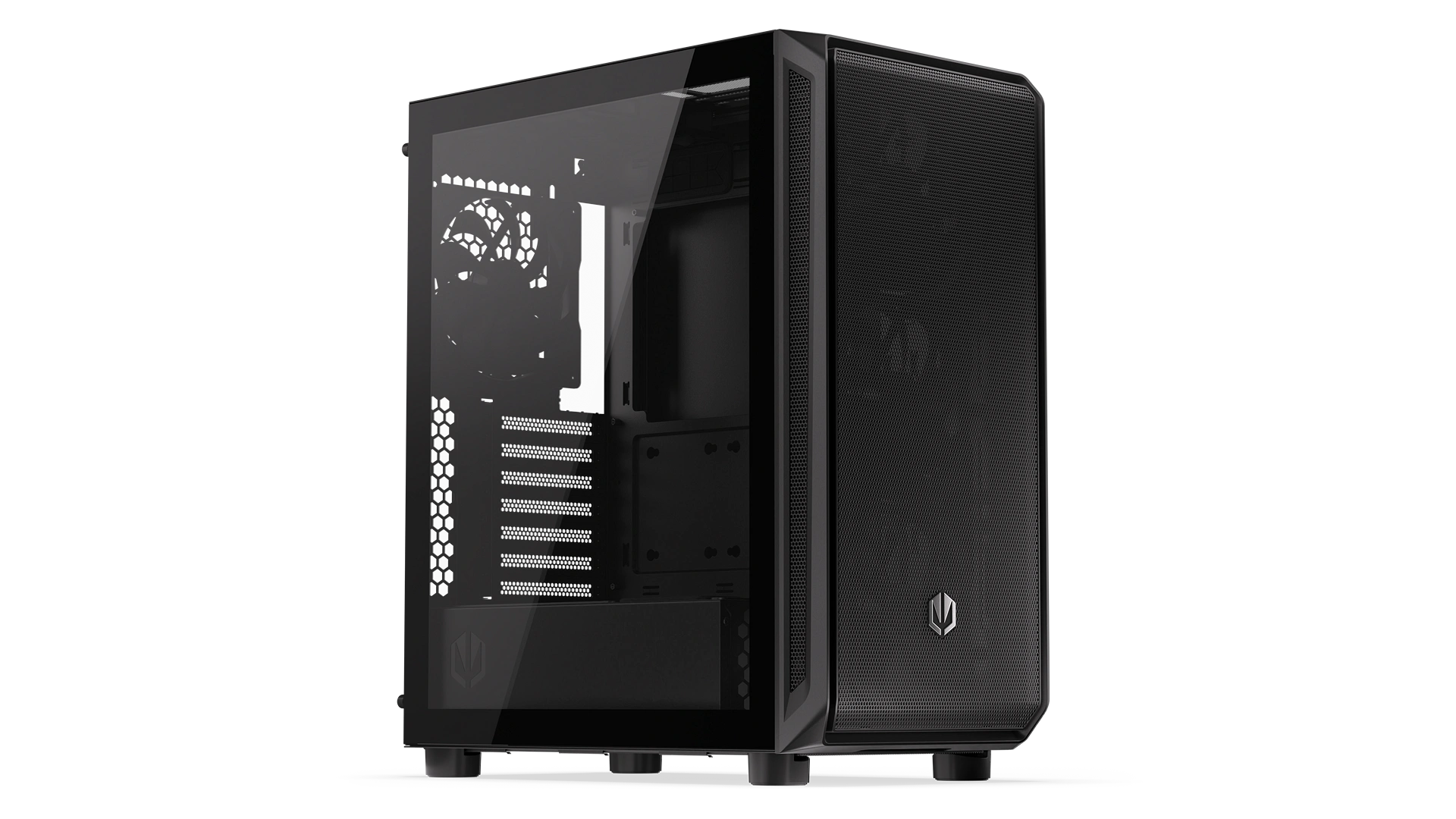

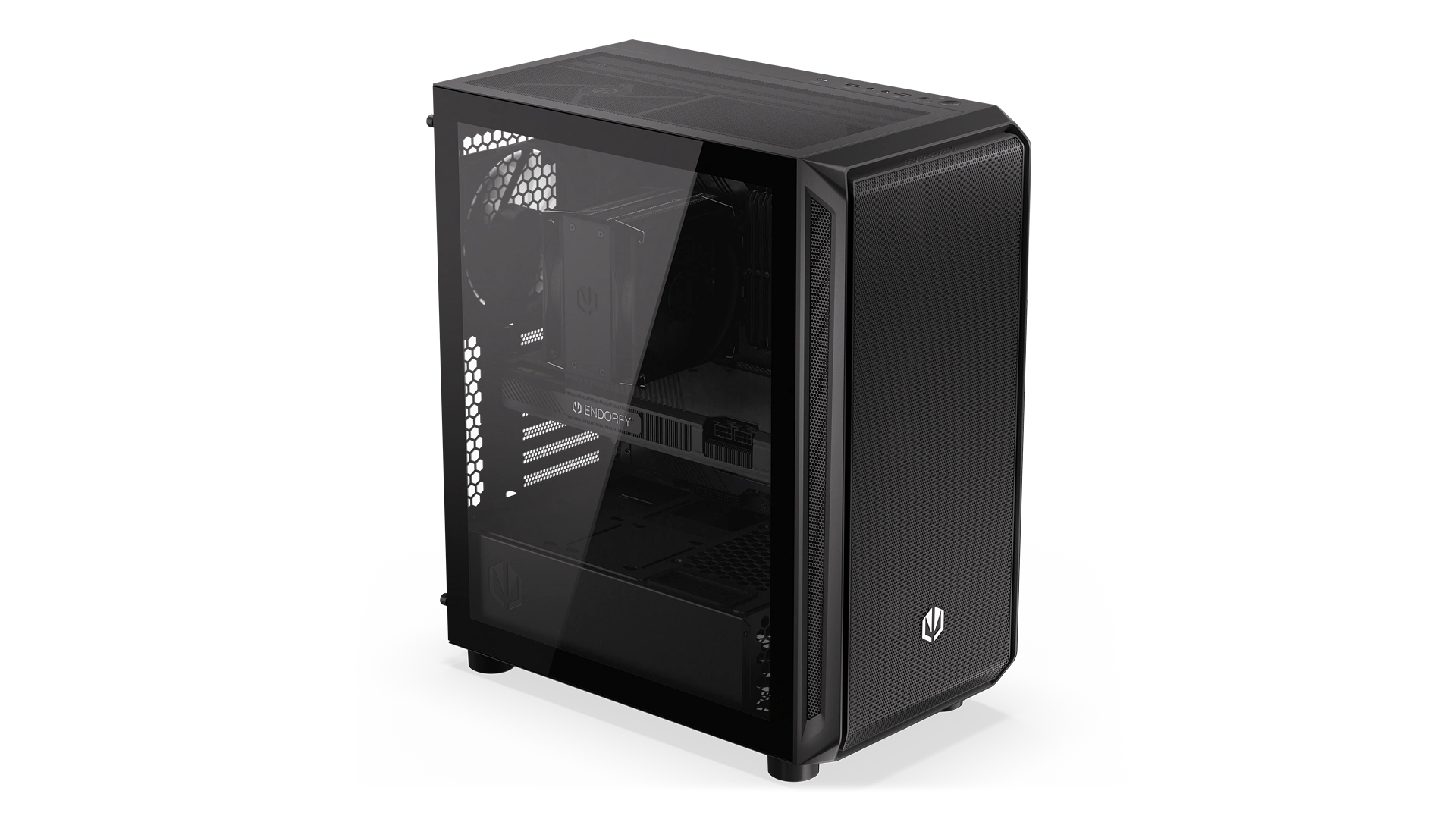

We’ve seen a lot when it comes to PC cases – but the Arx 500 Air still brings a big smile to our faces. No wonder, because we packed all our knowledge into it. Spoiler alert – it came out like a dream.

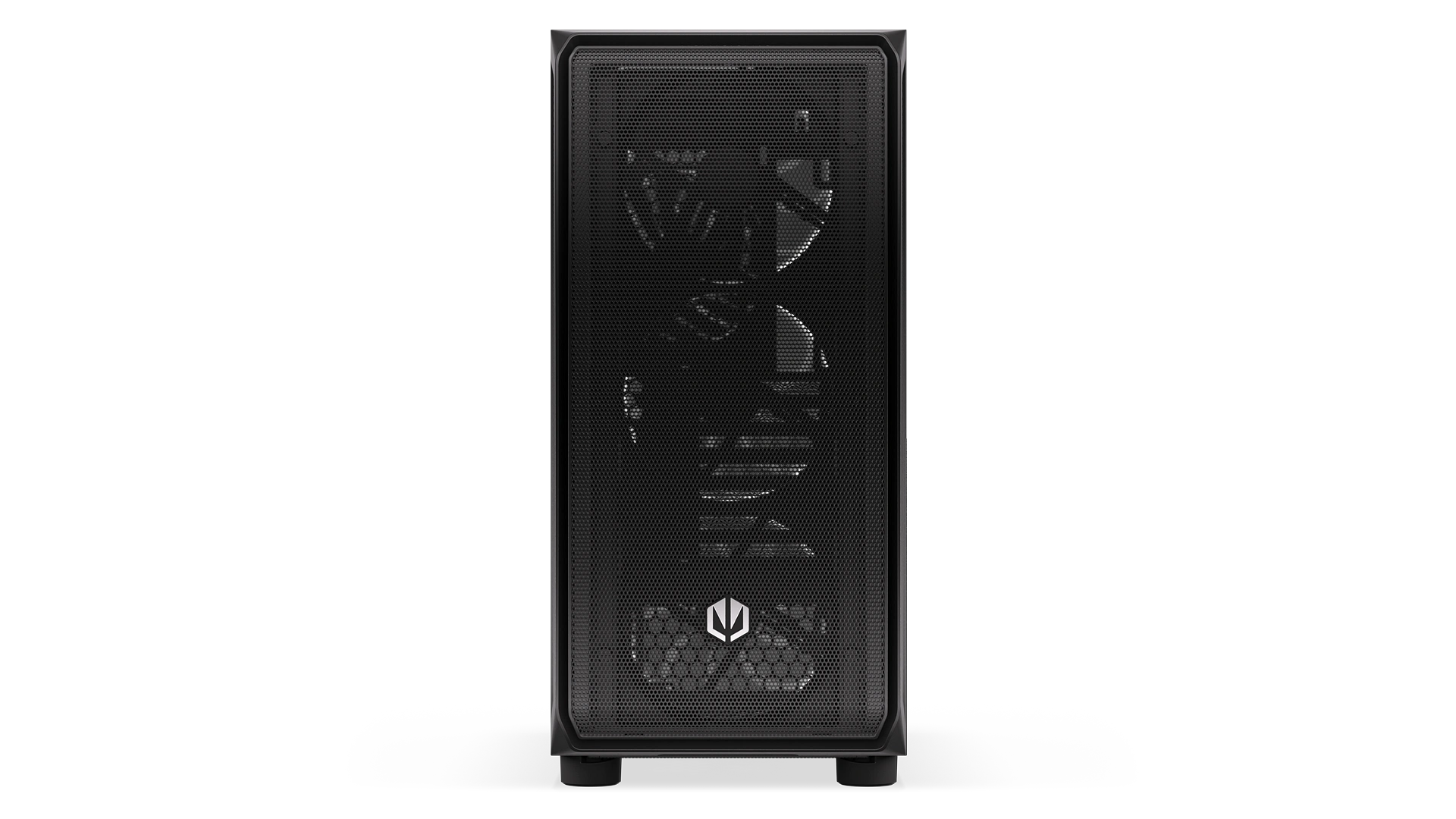

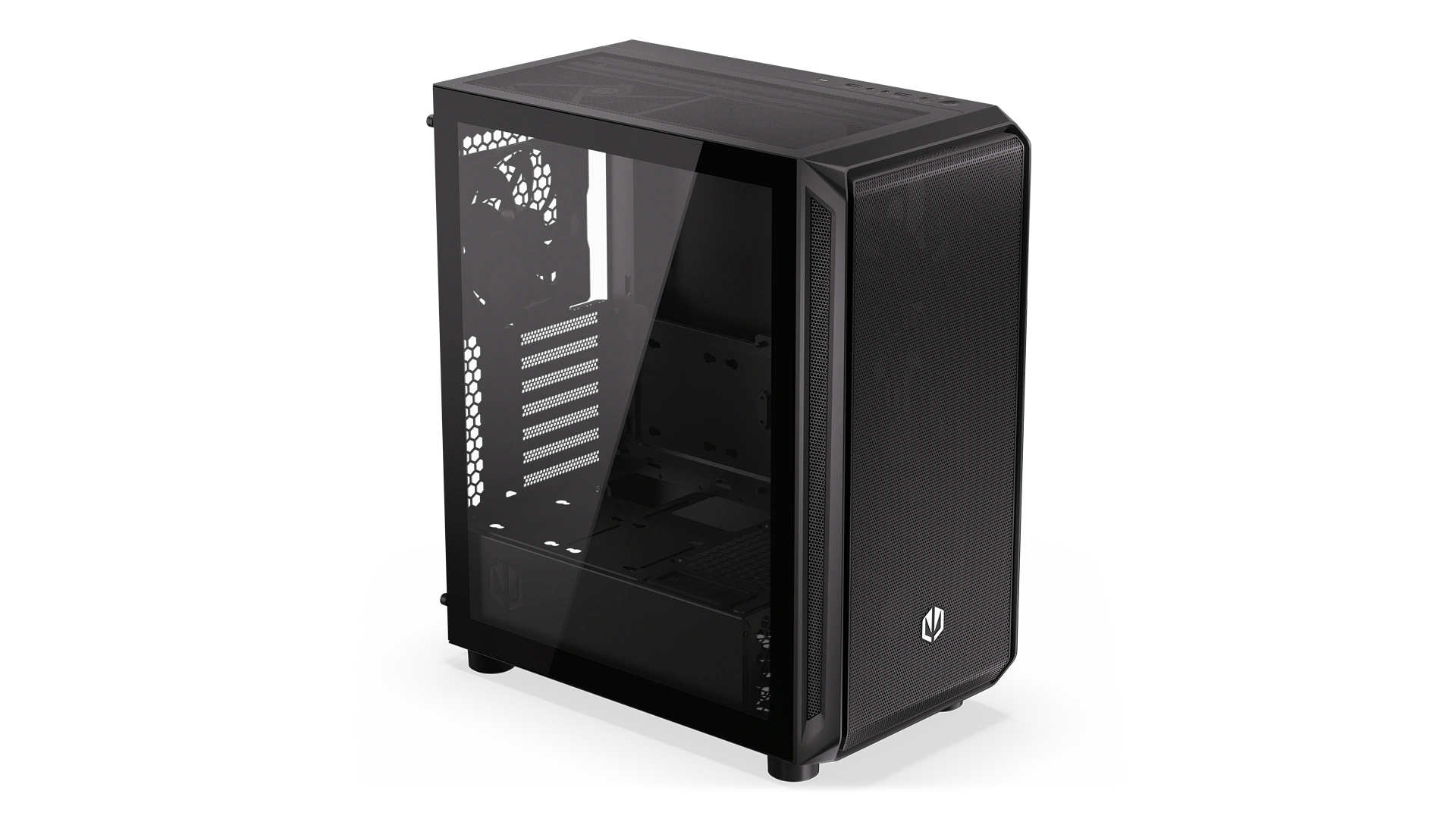

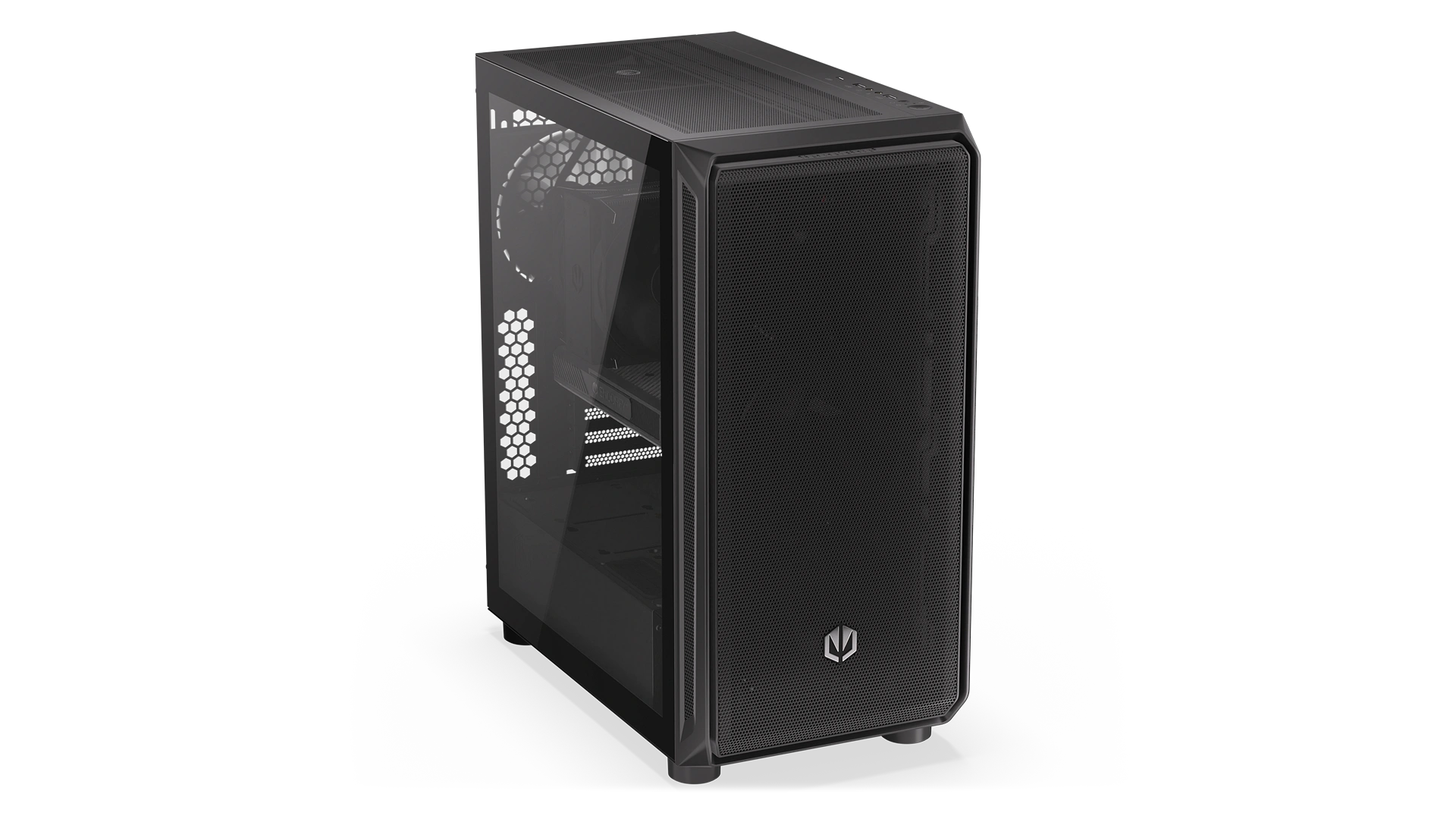

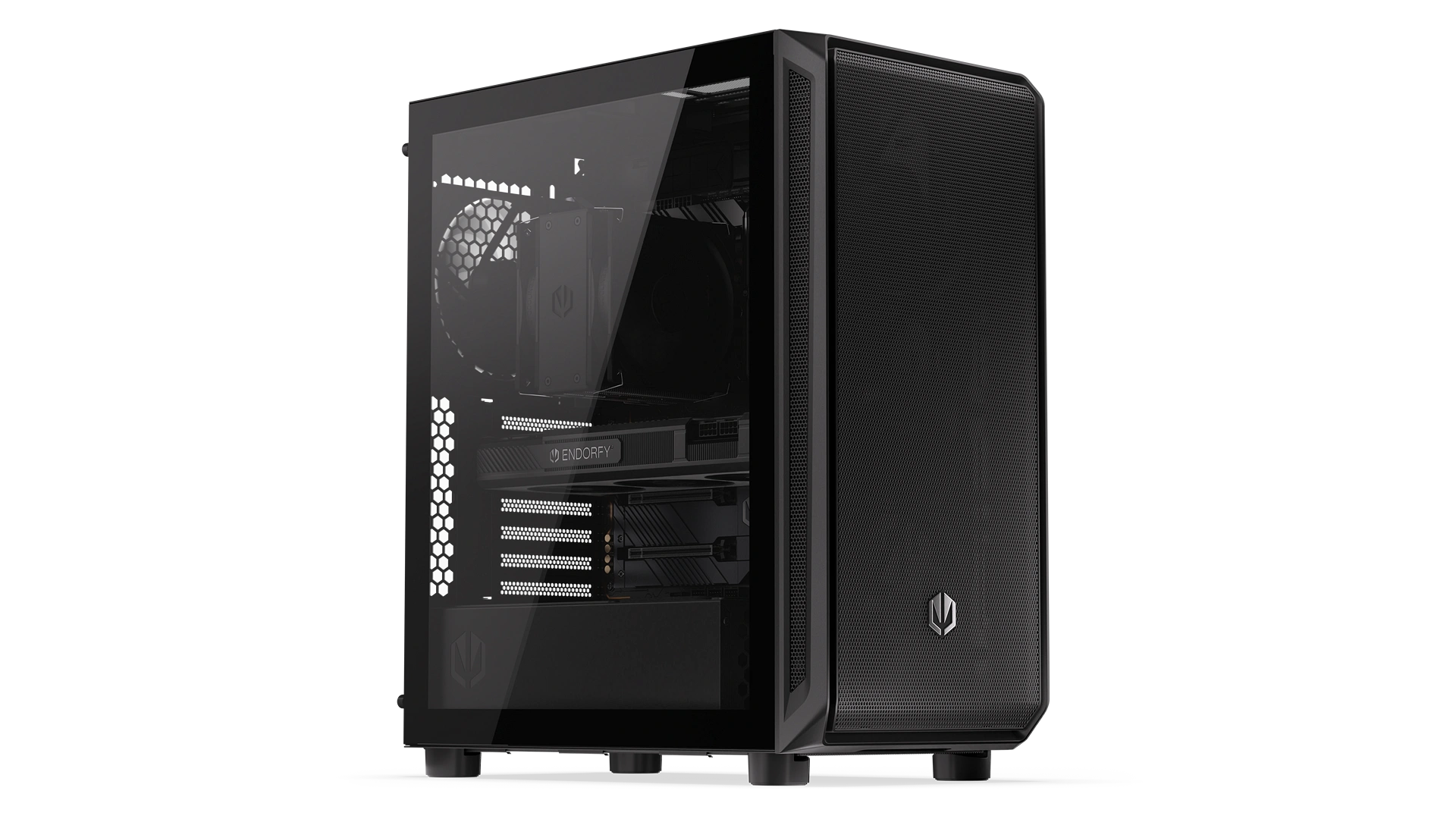

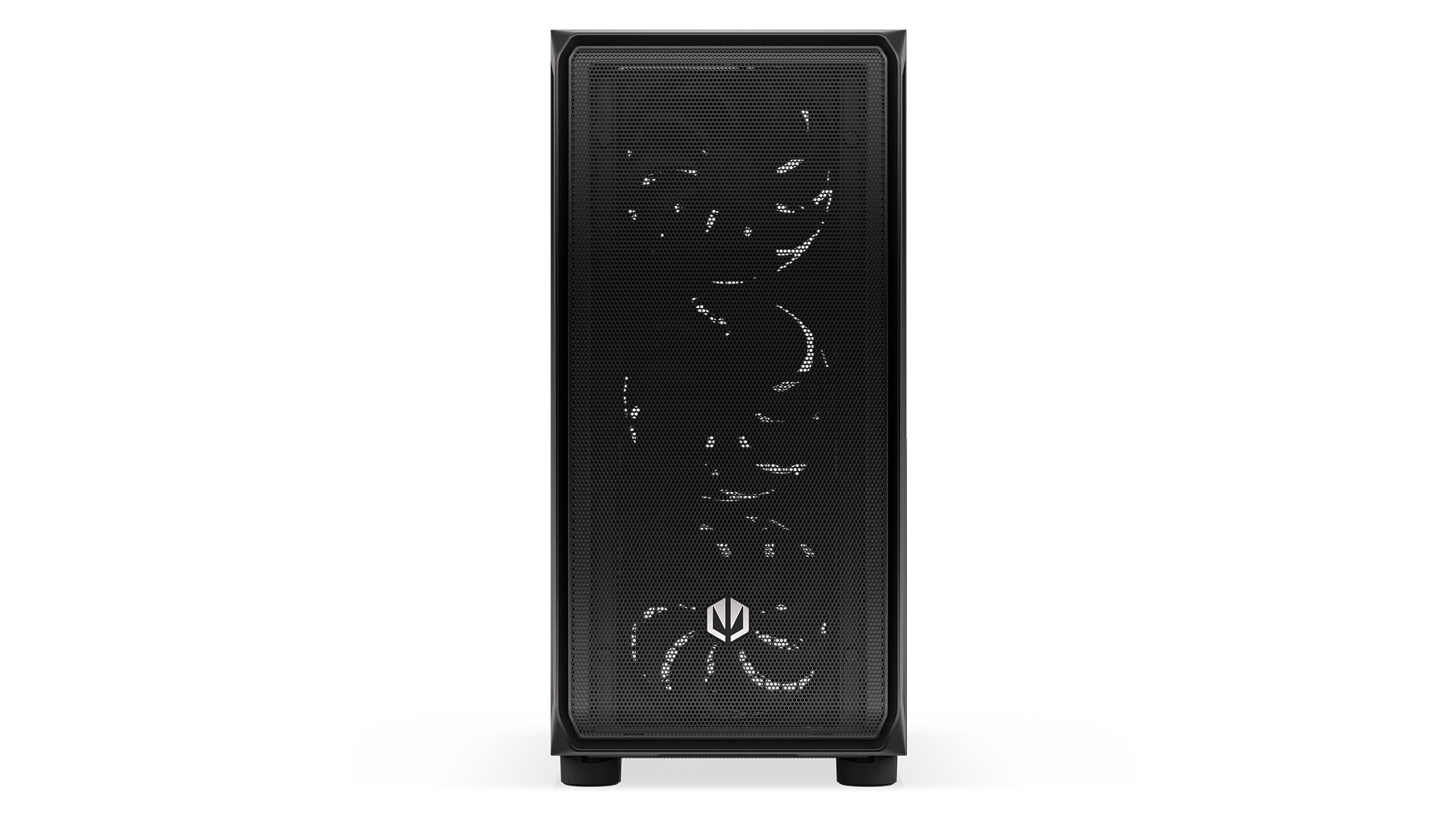

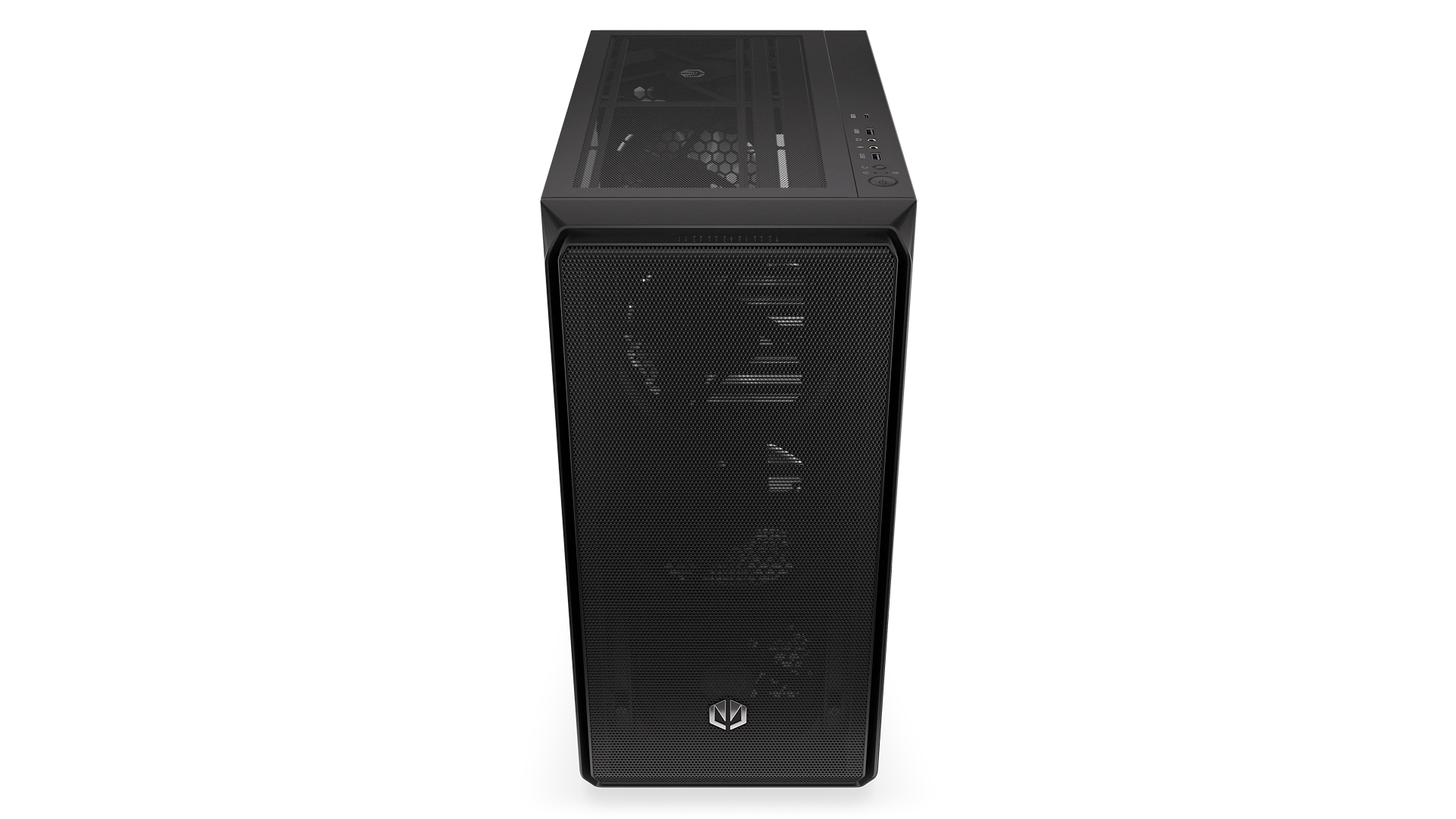

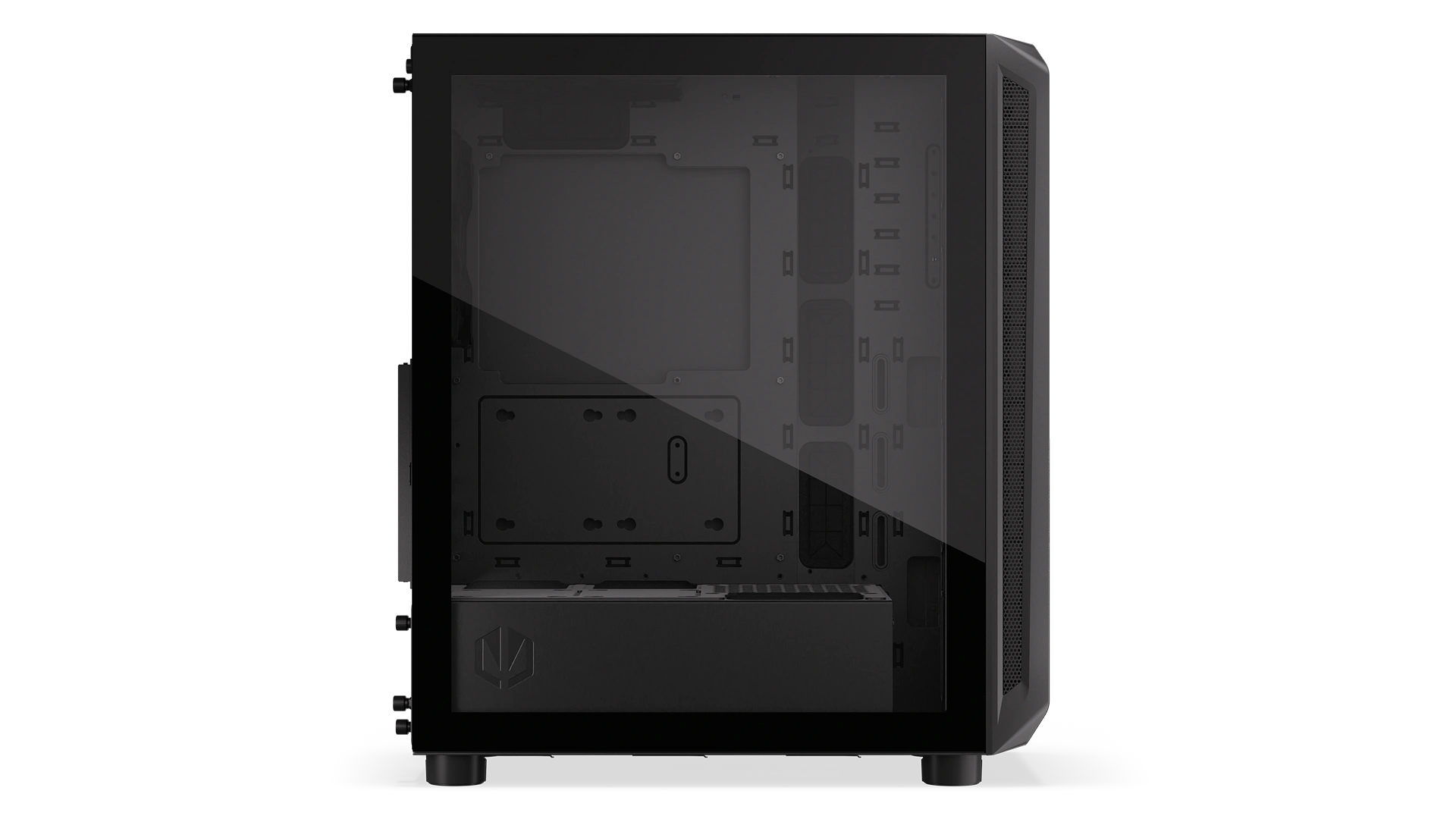

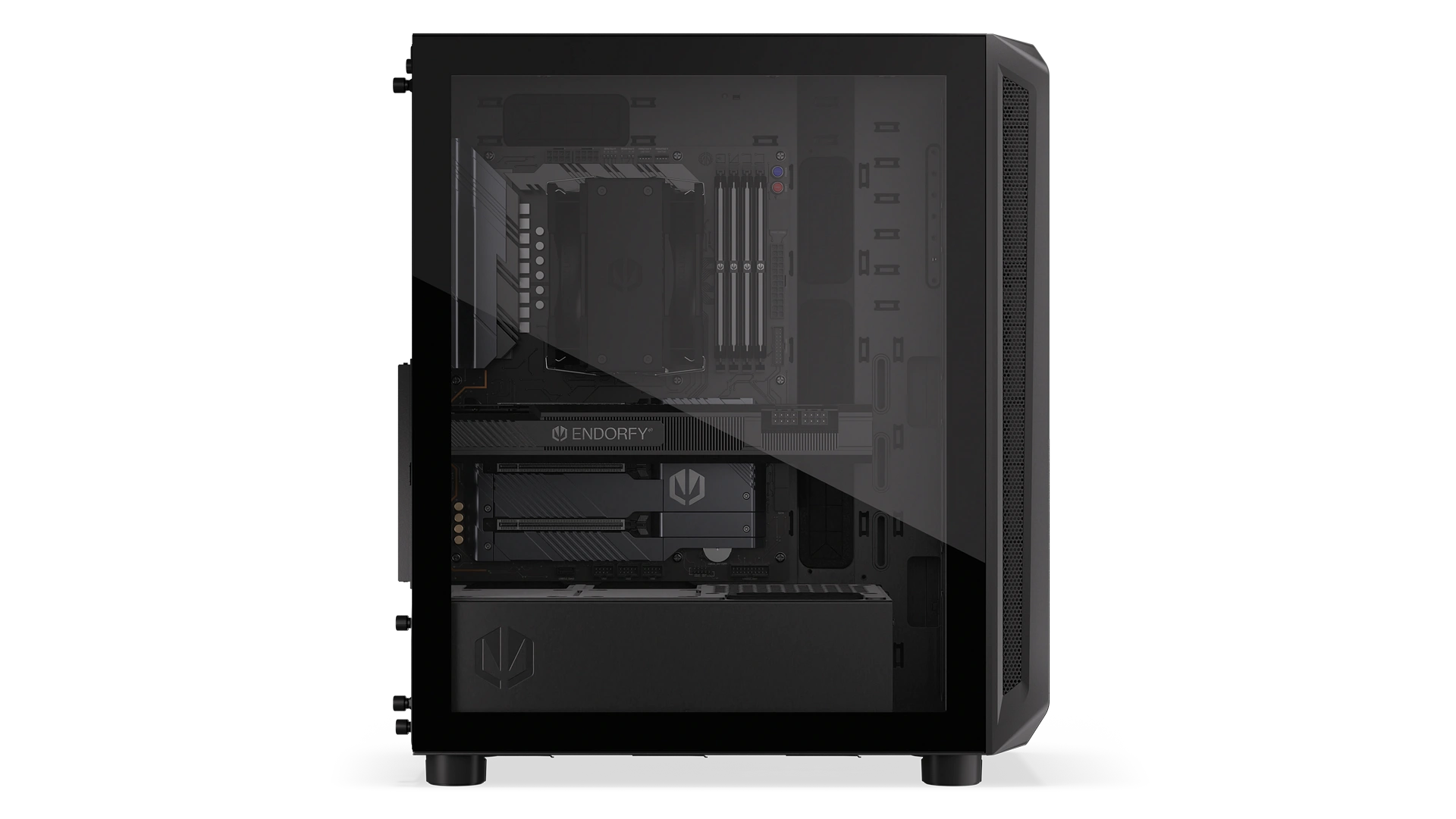

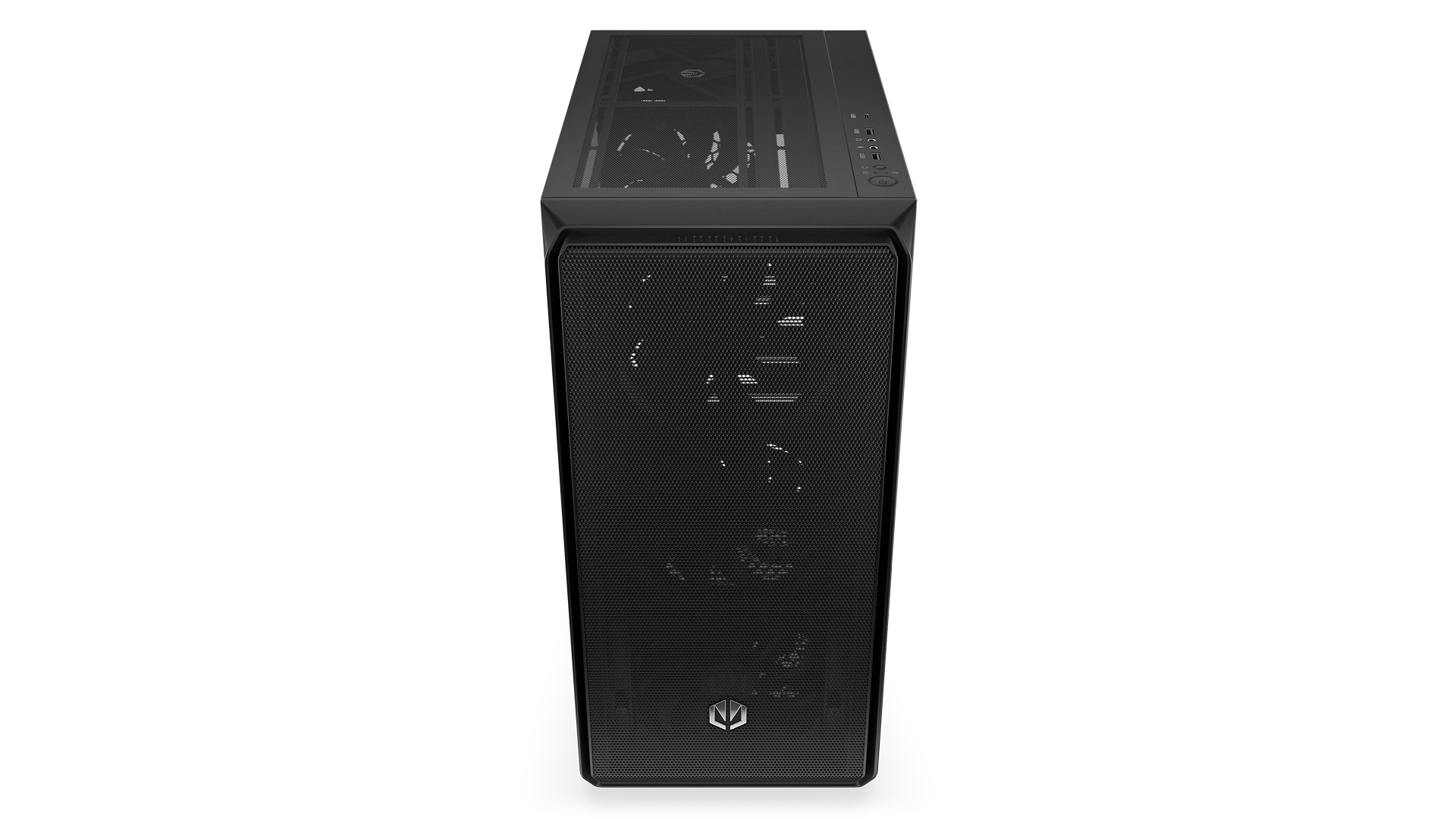

This is one of the largest cases we’ve ever created, only slightly shorter than Arx 700 series. It measures 486×228×429 mm – enough to fit a tall cooling system (up to 179 mm), 7 fans (including 5 Stratus 140 PWM that we give you for a good start), and most graphics cards available on the market (up to 350 mm long). Everything sits in a pleasant breeze, because the finely perforated front and top panels let in fresh air and block dust. You can check it out through the htempered glass window.

Maximum dimensions (CPU, GPU, PSU)
Fans compatibility
Radiators compatibility
Storage compatibility


(Click to zoom. Actual dimensions may vary.)

Technical data

  • Product codeEY2A010
  • EAN-135903018666297
  • Warranty [months]36
  • Product typePC case
  • Colorblack
  • Dimensions [mm]486×228×429
  • ARGB backlightno
  • Motherboard form factor
    • ATXyes
    • microATXyes
    • mini-ITXyes
  • Graphics card clearance (GPU) [mm]350
  • CPU cooler clearance [mm]179
  • Power supply clearance [mm]300
  • Expansions slots [pcs]7
  • Number of internal bays
    • 2,5"/3,5"1
    • 2,5"6
  • Fan capacity (maximum) [pcs]


  • Radiator capacity [mm]
    • Front1× 120, 240, 280, 360
    • Rear1× 120, 140
    • Top1× 120, 240, 280
  • Side panelglass
  • Dust filters
    • Frontyes
    • Topyes
    • Bottomyes

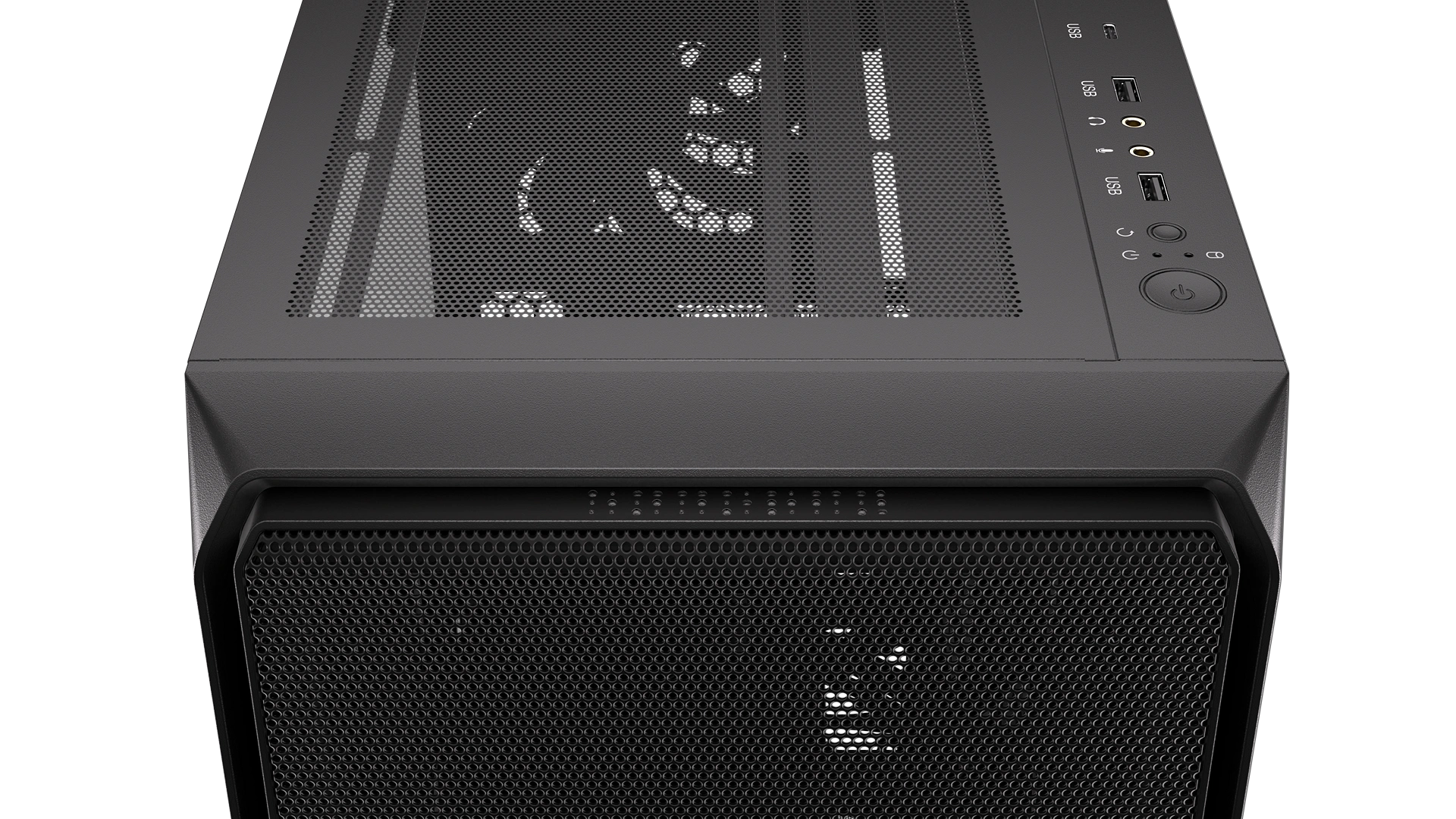

  • Front I/O
    • USB-C1
    • USB-A2
    • Headphones1× minijack 3.5 mm
    • Microphone1× minijack 3.5 mm
    • Power button1
    • Reset button1

    Set includes
