Spartan 5

Please select a model

It’s small. It’s quiet. It’s always ready to cool your treasures components. Spartan 5 – cooler with which you’ll finally hear your thoughts.

View specifications

Product code: EY3A001

Spartan 5

The Spartan 5 is small but efficient, like good air conditioning on a hot summer day. Somewhere in the desert. In the middle of the day.

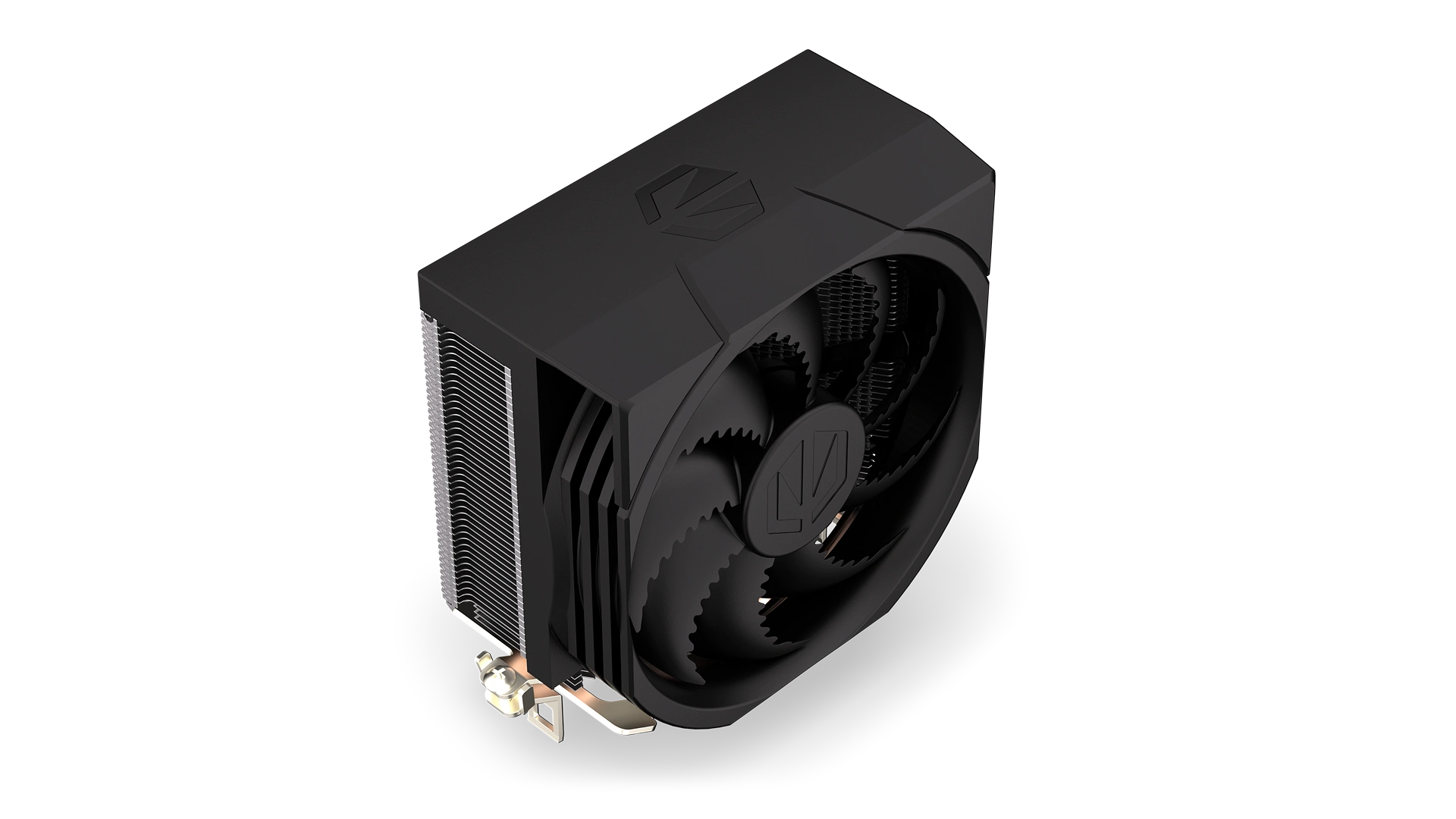

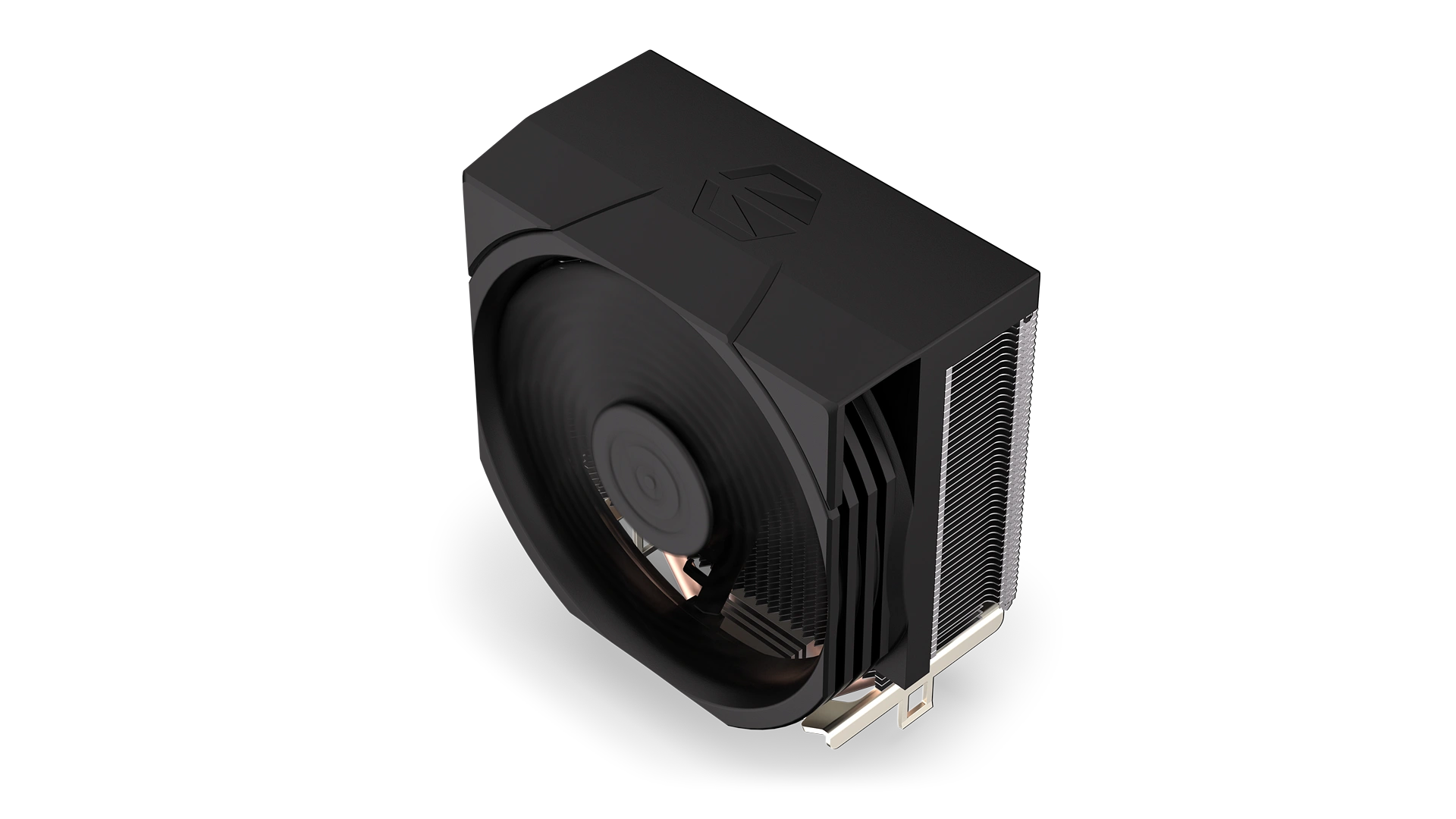

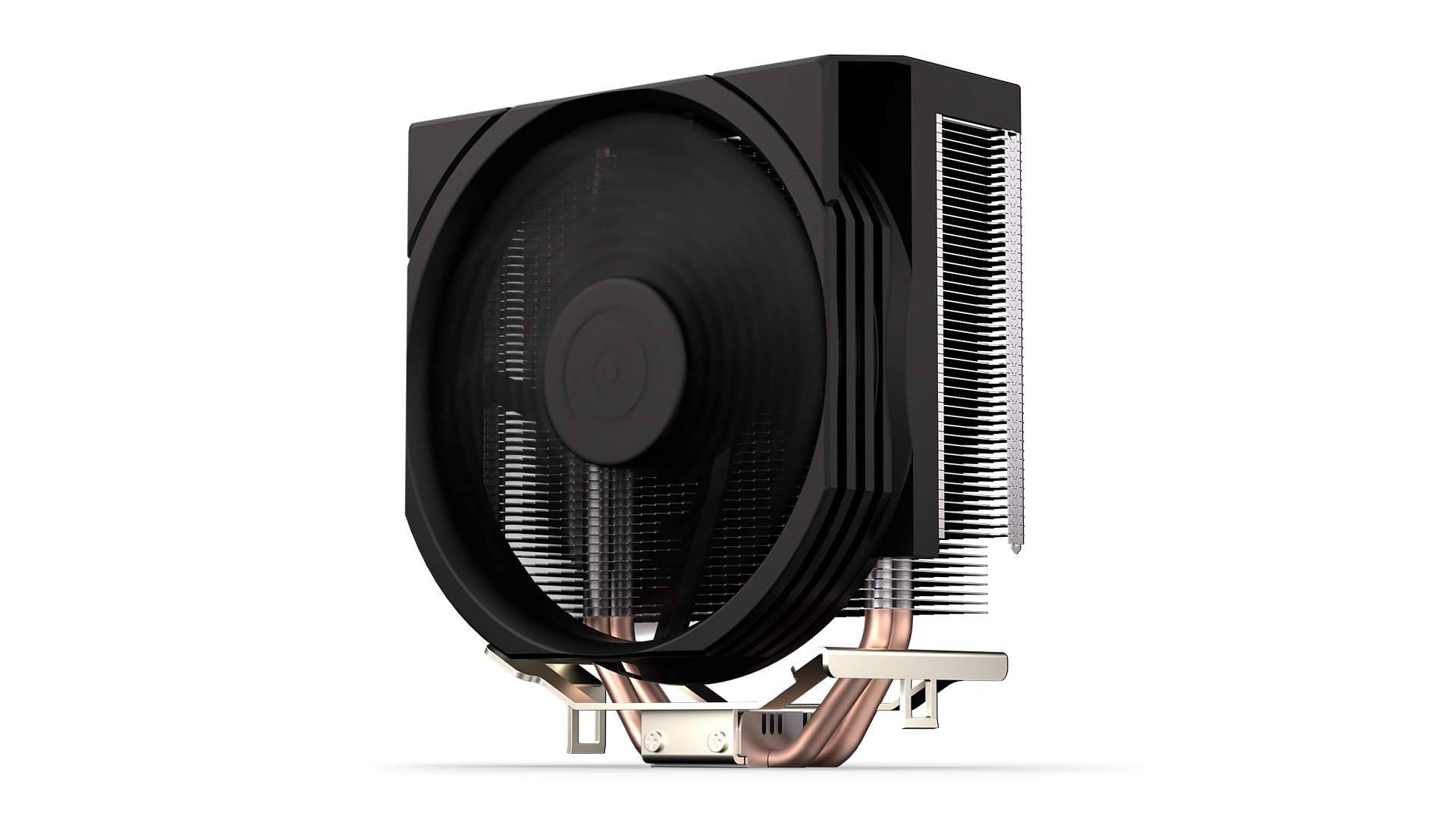

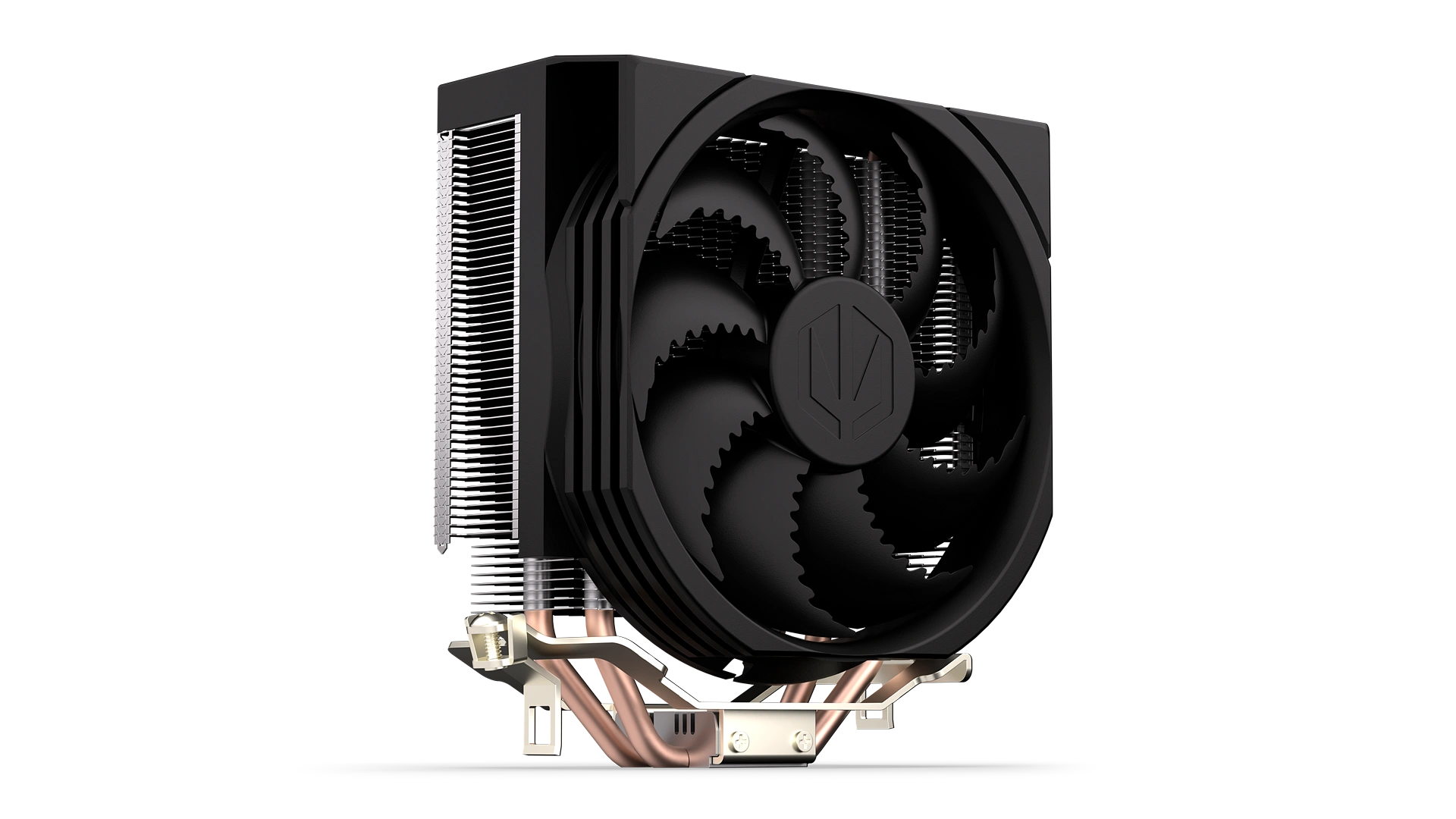

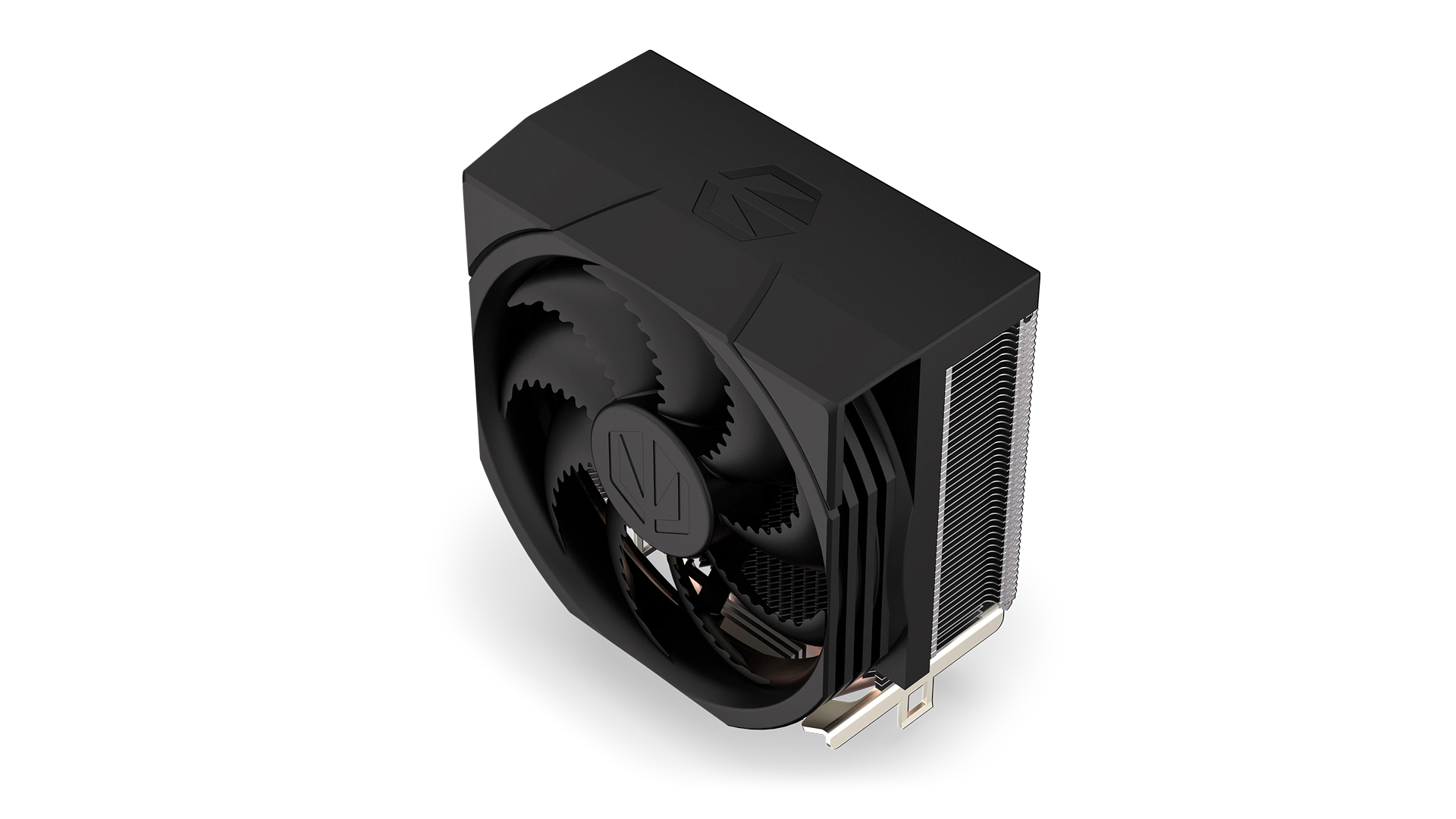

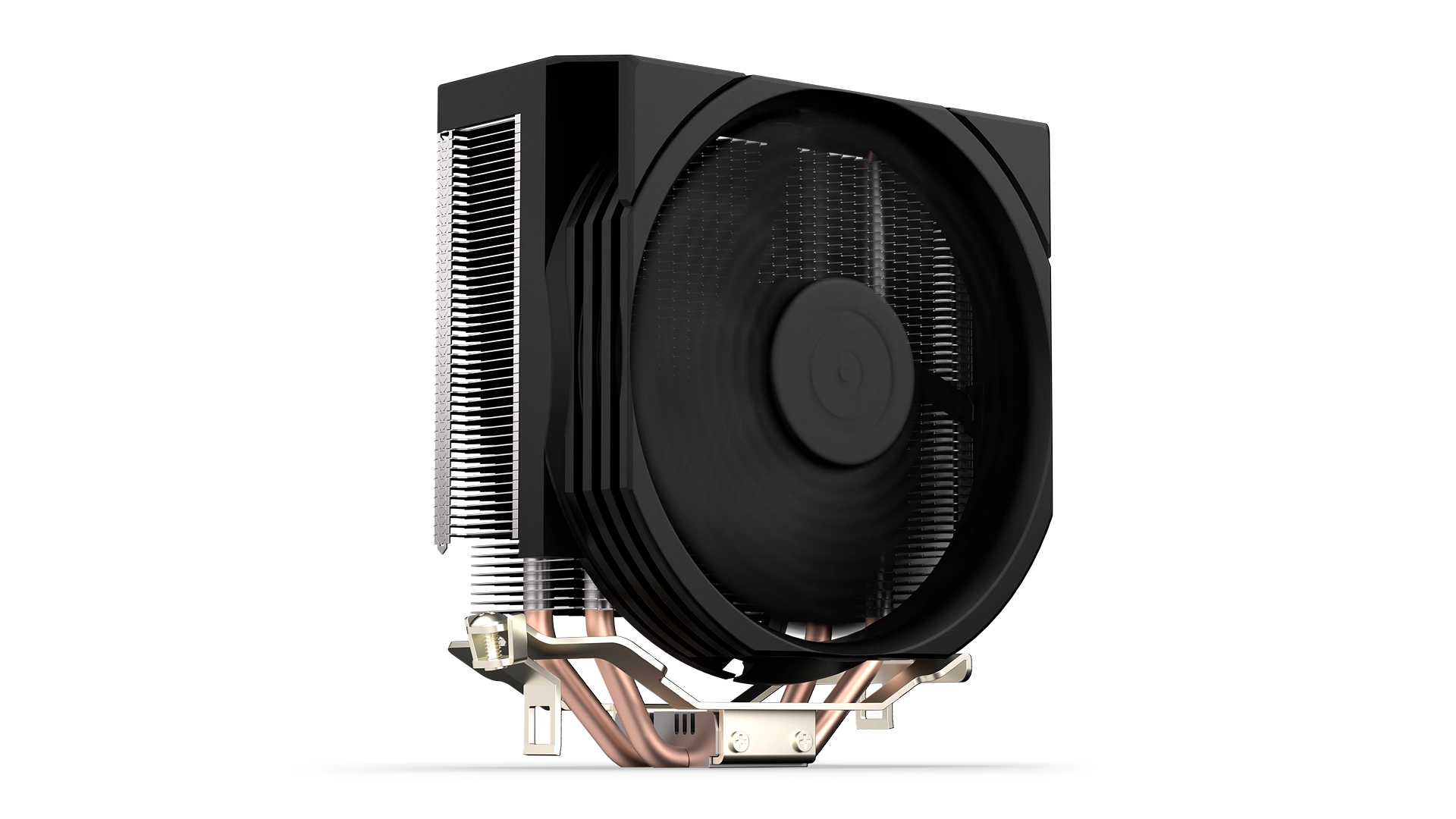

At its highest point, it's h14.6 cm – short enough to fit in most cases (even the small ones) and keep your CPU cool as ice. Its centerpiece is a 120 mm Fluctus 120 PWM fan, which we mounted on a densely finned heatsink. With such a package you can render and design without worrying that your CPU will suddenly get a fever.

The Spartan 5 is also compatible with many sockets (from older ones like AM2 and LGA1156 to AM5 and LGA1700) and tall RAM sticks, and thanks to our cheat sheet video instructions, you can set it up in mere minutes.

Hello, can anyone hear me?

The Spartan 5 works so quietly that it could easily get a high-five from any librarian. If you have hperfect hearing, you may hear it during 3D rendering or advanced technical simulations. Perhaps. 

Find out more
CLOSE

The Spartan 5 works so quietly that it could easily get a high-five from any librarian. If you have hperfect hearing, you may hear it during 3D rendering or advanced technical simulations. Perhaps. 

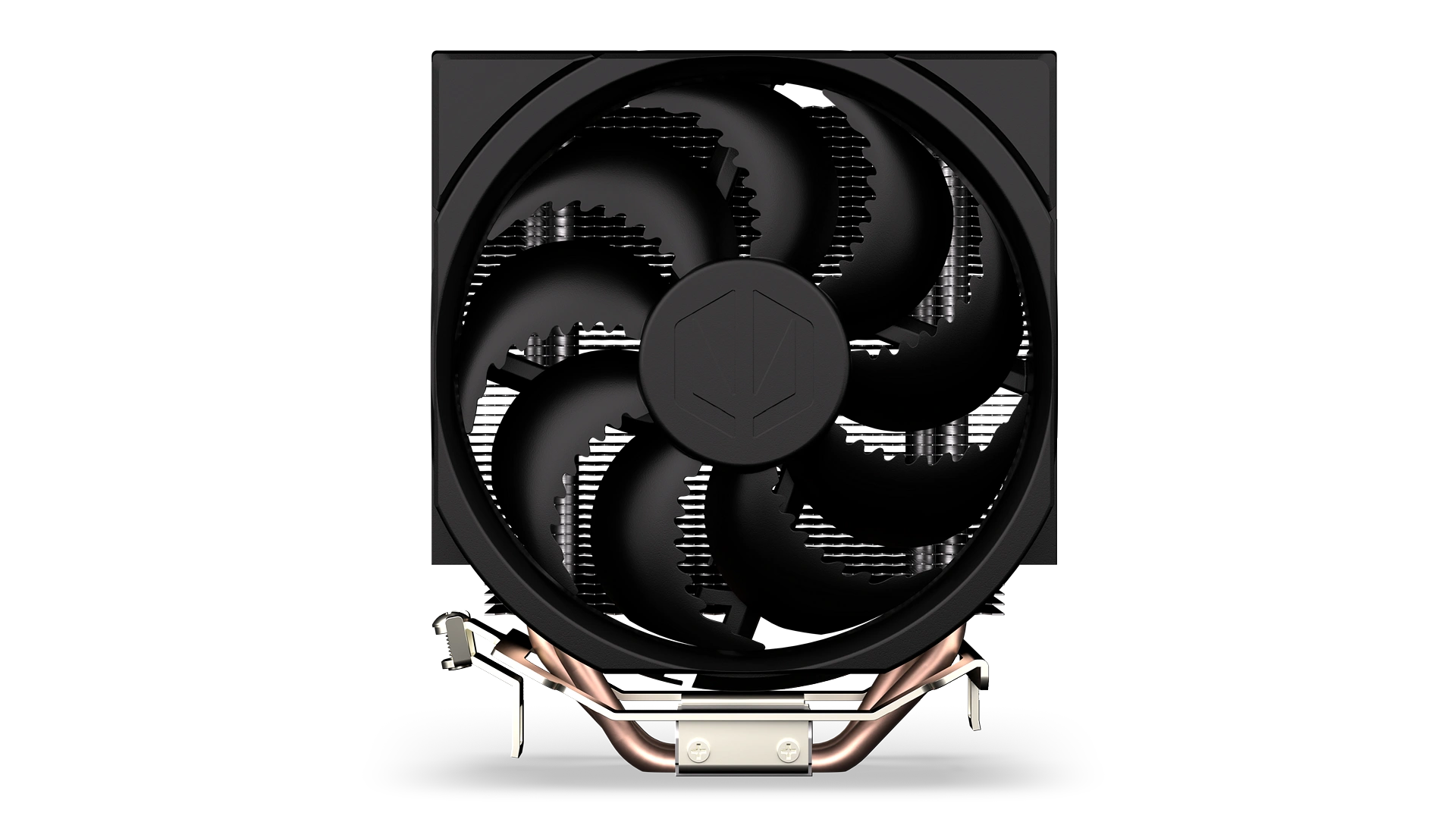

A constant stream of airflow is supplied by the award-winning 120 mm Fluctus 120 PWM fan. The blades have been shaped in such a way as to blow as much air as possible through the densely arranged heatsink fins. Each blade has a wavy edge, which further reduces fan noise (psychoacoustic optimizations used in Fluctus fans are patent pending).

This is Sparta The Spartan 5!

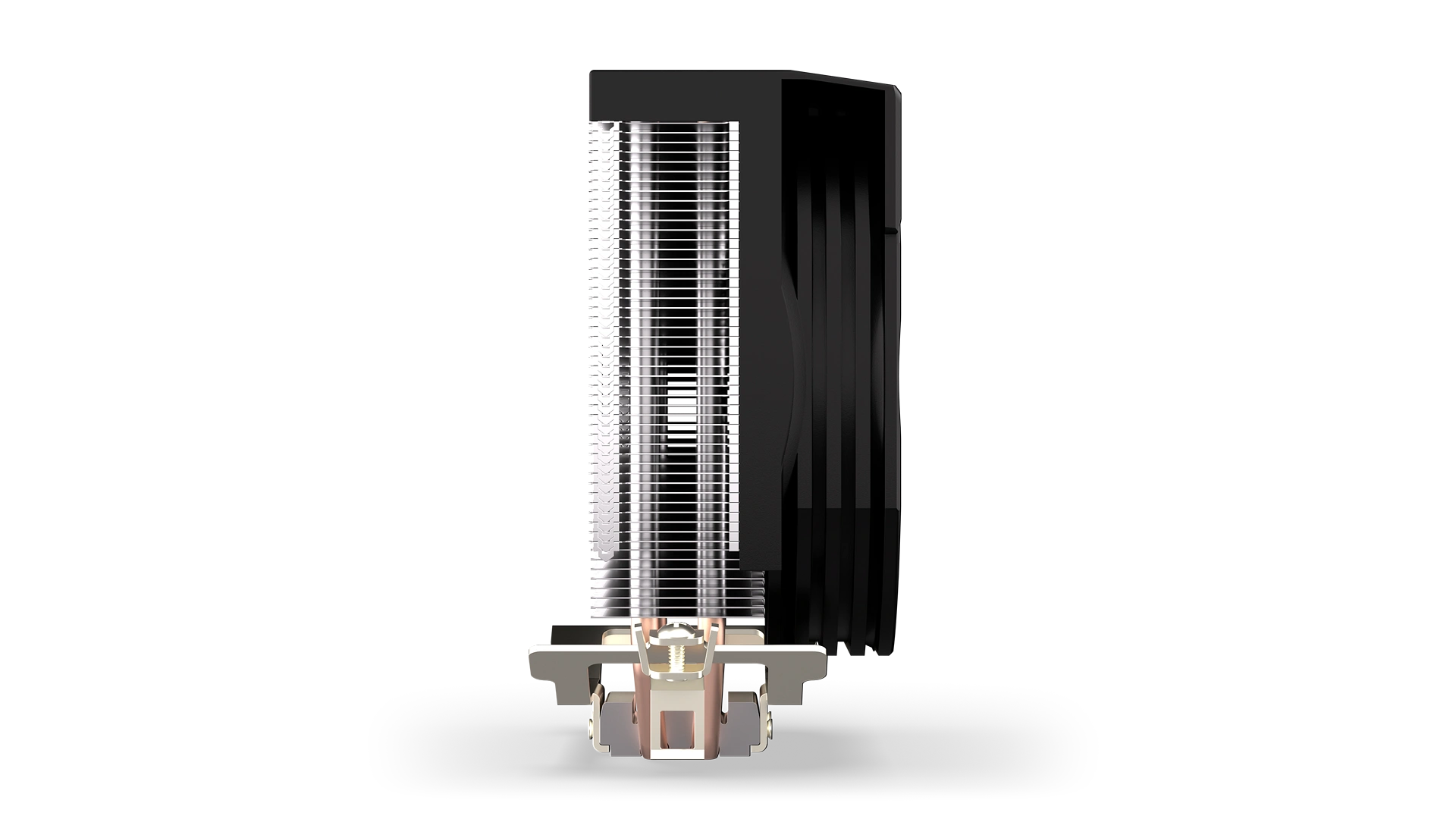

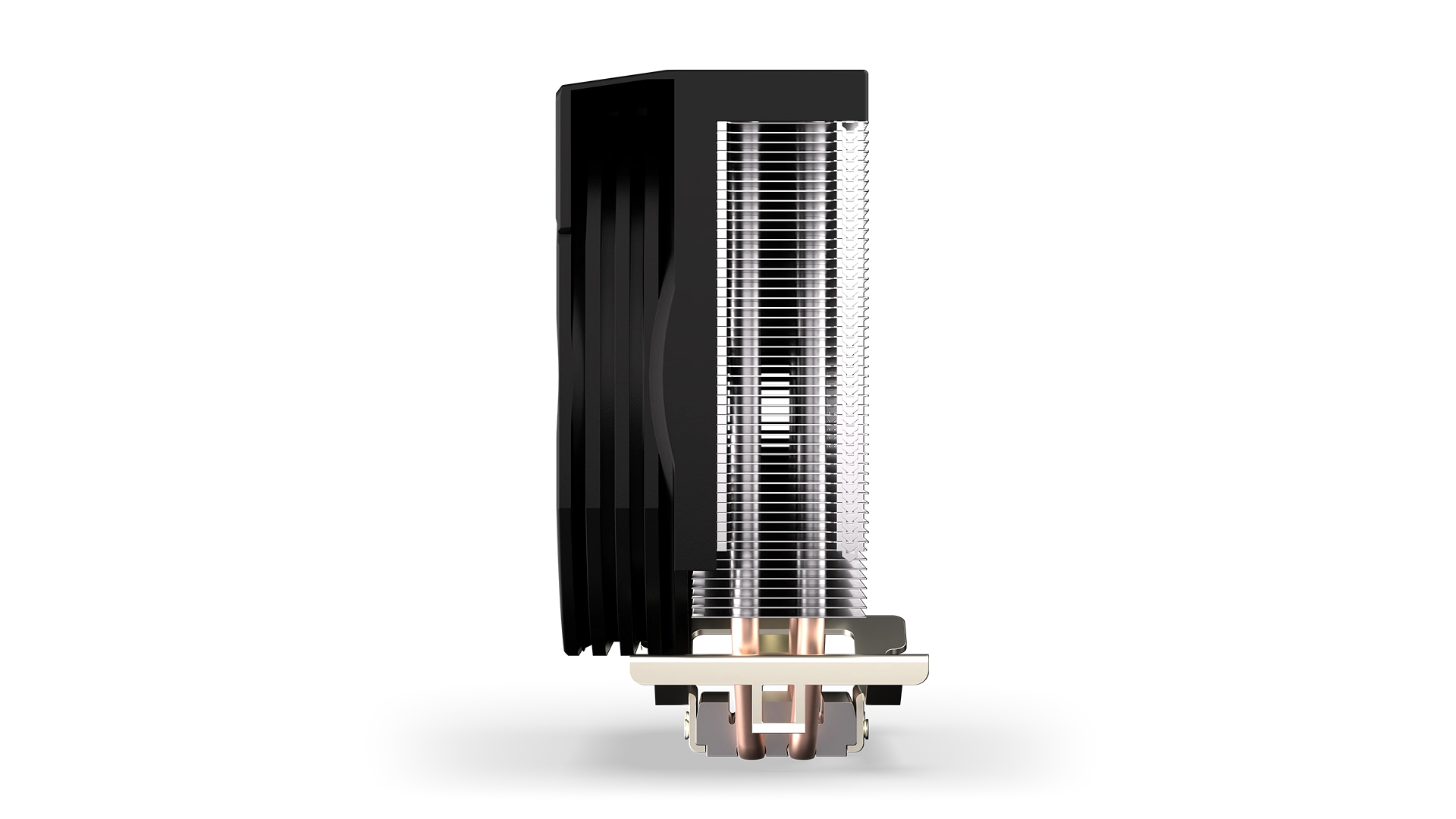

The Spartan 5 is small, but don't let its compact size fool you! It's h14.6 cm tall – short enough to fit in most cases and keep your CPU cool as ice. It keeps the components pleasantly cool even when you pull an all-night gaming session after a busy day of work.

Find out more
CLOSE

The Spartan 5 is small, but don't let its compact size fool you!

It's h14.6 cm tall – short enough to fit in most cases and keep your CPU cool as ice. It keeps the components pleasantly cool even when you pull an all-night gaming session after a busy day of work.

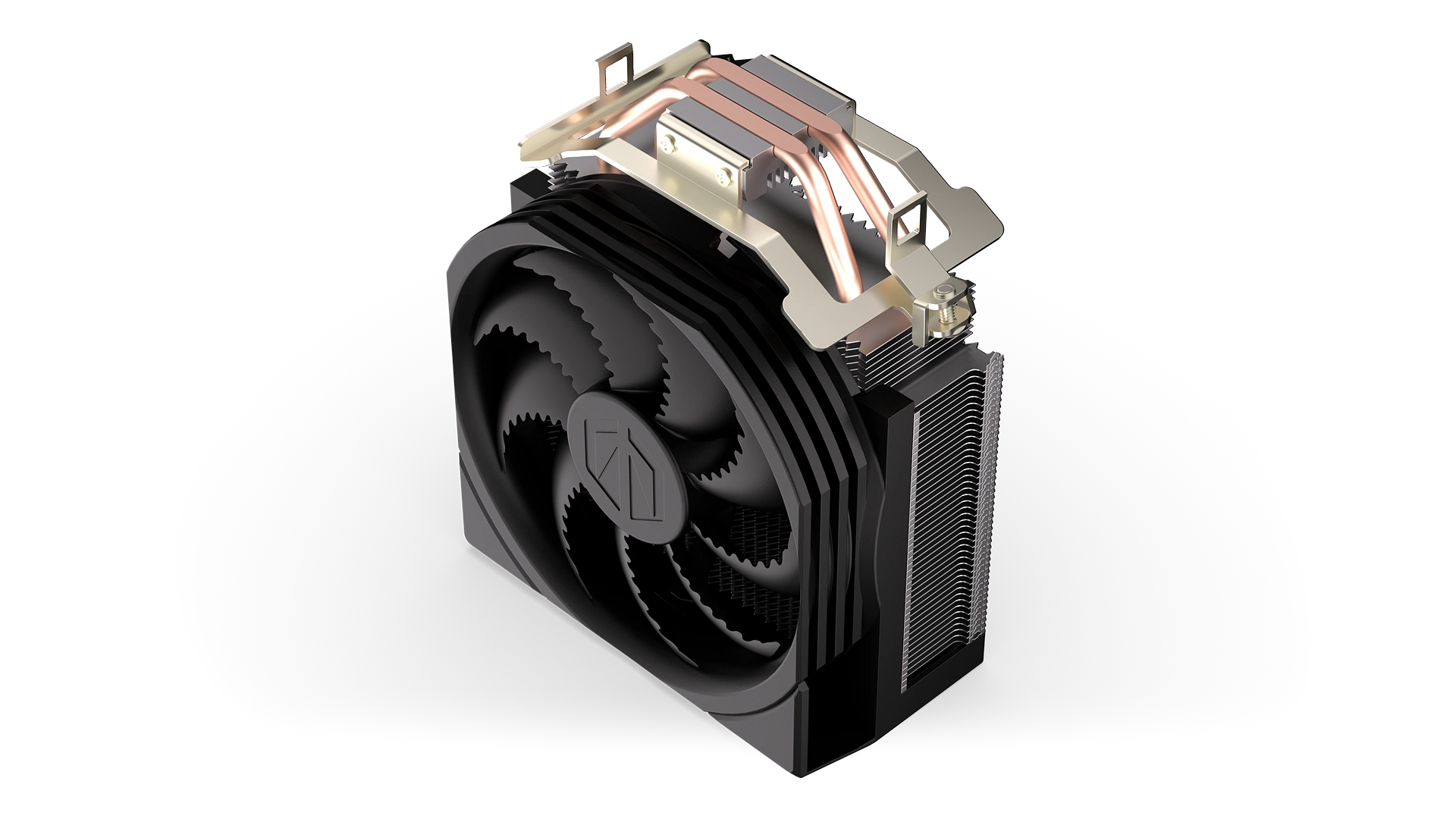

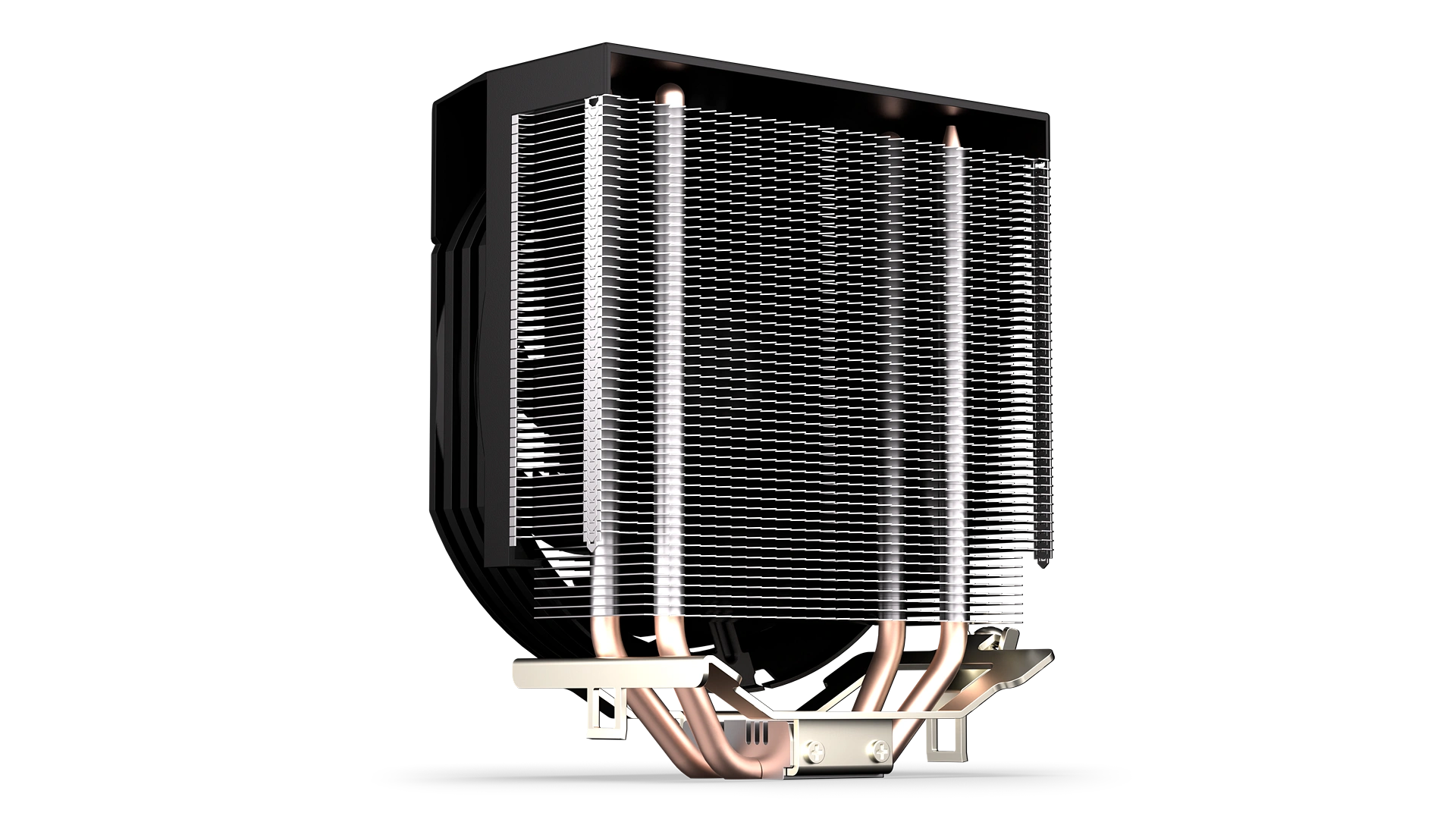

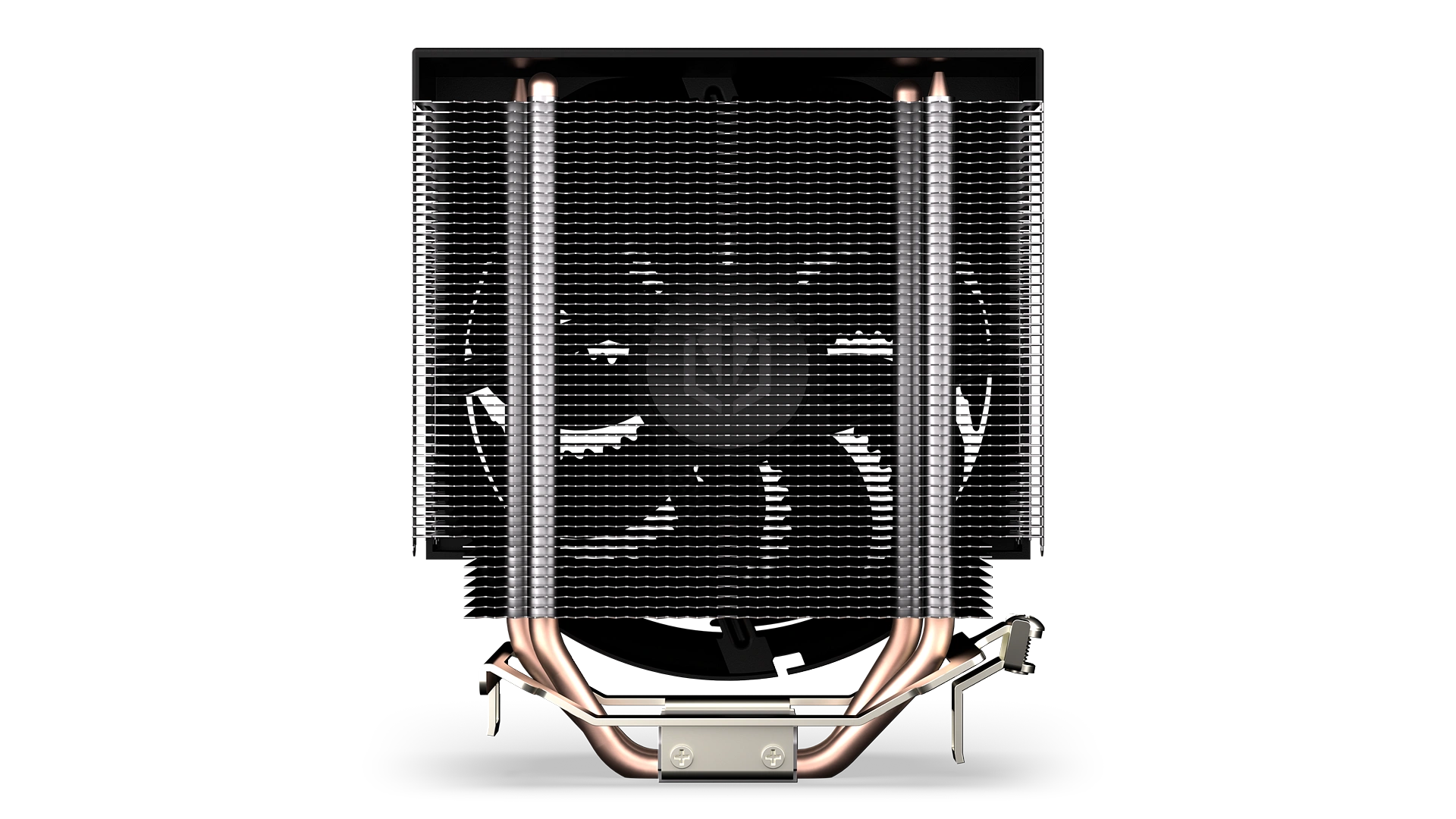

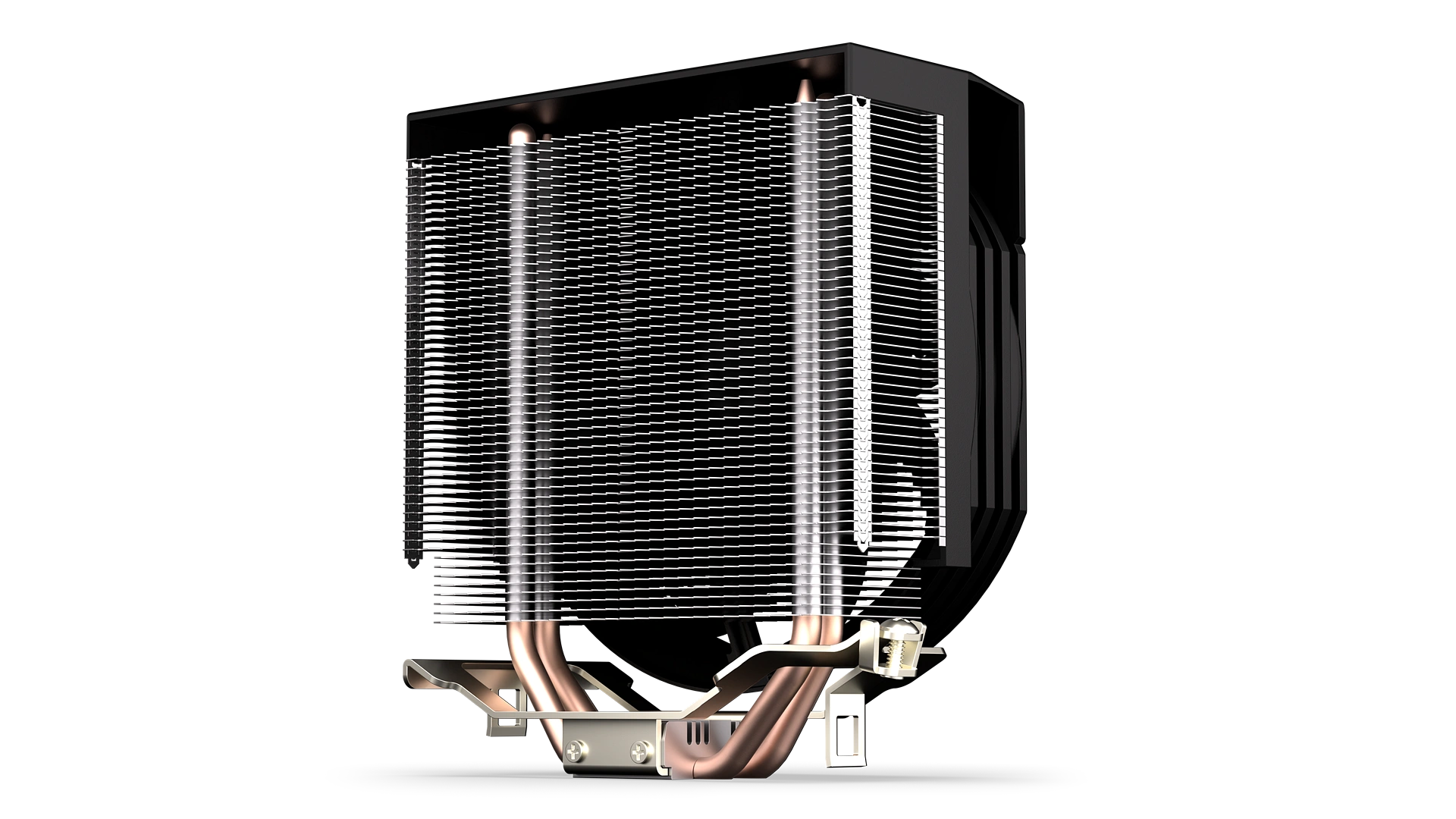

Such effective cooling is possible thanks to the heatsink with dense ribbing, which collects thermal energy well. The optimized base with direct-touch heat pipes drastically improves the dissipation of heat. This is Sparta The Spartan 5!

Assembly in a moment

You can literally mount the Spartan 5 in a moment without additional fancy tools. Together with the cooler, we’ve released video instructions that will guide you step by step through the whole process. By the way, we've taken care of the usually hardest things – we've preinstalled a 120 mm Fluctus fan for you – so you'll be able to handle the whole process easily, even if it's your first time assembling a PC.

h6-year warranty 

We have been in the industry for a long time, and we know that the ENDORFY logo = high quality that cannot be faked. That's why with the Spartan 5 cooler you get a long, h6-year warranty (although you probably won't use it anyway). 

Technical data

  • Product codeEY3A001
  • EAN-135903018665788
  • Warranty [months]72
  • Product typeCPU air cooler
  • Colorblack
  • Radiator dimensions [mm]146×125×65
  • Radiator typetower
  • Heatpipes [pcs]2
  • Maximum number of fans [pcs]1
  • Fans (included) [pcs]1
  • MTBF [h]100 000
  • TDP [W]160
  • AMD CPU compatibility
    • sTRX4NO
    • AM5YES
    • AM4YES
    • AM3 (+)YES
    • AM2 (+)YES
    • FM2 (+)YES
    • FM1YES
  • Intel CPU compatibility
    • LGA1700YES
    • LGA1200YES
    • LGA115XYES
    • LGA2066YES
    • LGA2011-3YES
    • LGA2011 (square ILM)YES

    Set includes

    • Spartan 5 heatsink with integrated Fluctus 120 PWM fan and pre-applied Pactum PT-3 thermal paste
    • Mounting accessories
    • Safety instruction
